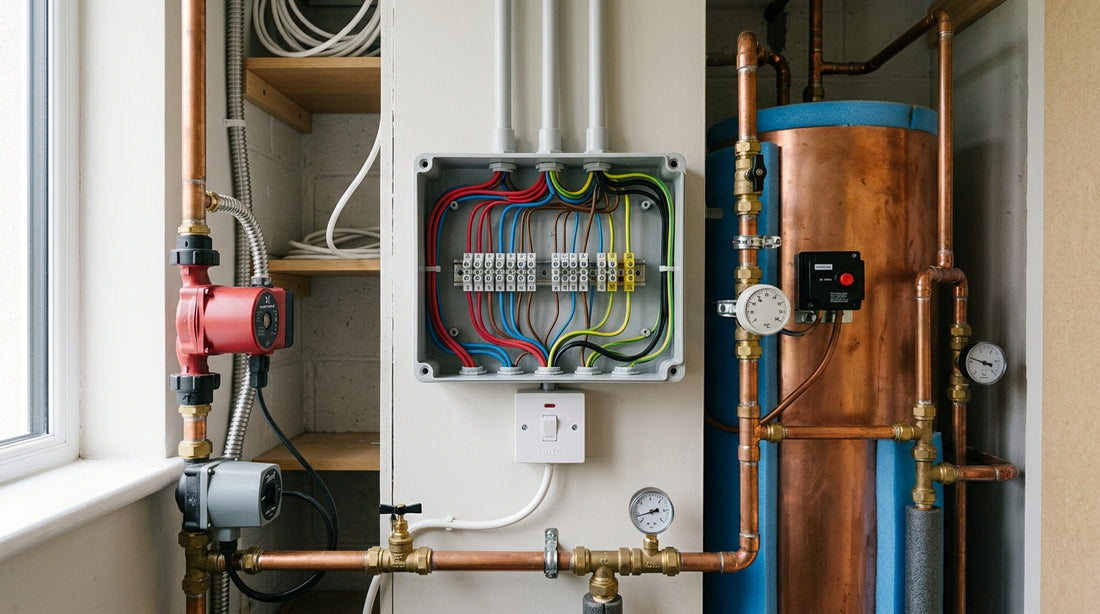

Boiler Stove Wiring Controls in Ireland
Boiler stove wiring controls matter because they decide how safely and efficiently your stove shares heat with the rest of your home.
You are typically blending solid fuel with existing oil or gas heating, so the wiring has to coordinate pumps, motorised valves, thermostats, cylinder and room controls, and essential safety functions such as pump overrun and heat leak protection. In Ireland, that work also sits inside clear constraints: electrical rules under I.S. 10101:2020 (which replaces ET 101) and wider building and energy requirements like Building Regulations Part L, plus manufacturer instructions that may require specific interlocks and fail-safes.
When controls are planned properly, you avoid common headaches like pumps running at the wrong time, unwanted boiler firing, a stove boiling over, or radiators and hot water competing for flow. You also make informed choices between traditional wiring centres and newer smart control options, weighing convenience against compatibility with mixed radiator and underfloor setups.
With that context in mind, getting clear on the core components and terms makes it much easier to assess your own system and have the right conversation with a Safe Electric electrician and, where relevant, an RGI gas installer.
Introduction to Boiler Stove Wiring in Ireland
Wire a boiler stove correctly and you protect your pump, your controls, and your home from the kind of overheating and nuisance cut-outs that turn a tidy install into an expensive call-back. What you need depends on your stove model, your heating layout, and whether you are linking into an existing oil or gas system, so the safest approach is to focus on the control logic and safety devices the manufacturer specifies, and have the electrical work carried out by the right person.
Why correct wiring matters
Proper controls help prevent boiling, pump failure, and repeated safety trips, particularly in Irish homes where boiler stoves are often integrated with existing radiator circuits and hot water cylinders. In Ireland, the electrical safety baseline for design and installation is set out in I.S. 10101:2020 (National Rules for Electrical Installations), and it applies to installations up to 1000V AC in premises including housing, which is why the electrical side should be handled by a registered electrician who can test and certify as appropriate. Treat the stove manufacturer’s wiring diagram as the controlling document for the specific appliance. That mix of compliance and appliance-specific detail is also what determines who needs to be on your job.
Who should be involved, and what this guide does
A safe setup usually needs an electrician to connect and protect the electrical controls, and a heating installer to handle the pipework, pump placement, and the heat-dump or “heat leak” arrangement that prevents dangerous overheating during a power cut or control failure. Once you have shortlisted appliances from the Boiler Stoves Ireland collection, it becomes much easier to have a clear, practical conversation with your installer about thermostats, pump control, interlocks with an oil or gas boiler, and the handover checks that prove everything operates safely under real conditions.
Key Concepts in Boiler Stove Wiring
Boiler stove wiring is the control wiring that makes the stove’s pump(s), valves, thermostats, and safety cut-outs work together so heat moves to radiators and hot water safely. It helps prevent overheating and supports safe heat dumping when required. The nuance is that “simple” wiring can become complex fast when you add heating zones, an existing oil or gas boiler, or solid-fuel safety interlocks, so it pays to think in terms of the whole system rather than one appliance.
Wiring standards that matter in Ireland
In Ireland, the national wiring rules are I.S. 10101, and the HSA notes that I.S. 10101:2020 has replaced ET 101:2008 for electrical installation safety. For a boiler stove setup, the key takeaway is that control wiring and any mains electrical work should be designed and installed to Irish rules by a competent person, because solid-fuel safety controls are there to protect both the appliance and the home.
Energy and compliance context (Part L)
For boiler stove planning, Part L matters because it frames energy performance expectations for dwellings, and the Department explains that Technical Guidance Documents show how Building Regulations requirements can be achieved in practice. In practical terms, your heating controls and system design choices can affect how efficiently the home runs day to day, which is why boiler stove control strategy is usually considered alongside broader heating upgrades rather than as a stand-alone wiring job.
Components and terminology you’ll see
When you’re comparing appliances, it helps to start from the stove type and the system layout you’re building around, then shortlist and match controls to the manufacturer’s wiring diagram. You will commonly see references to items like a pump, pipe thermostat, cylinder thermostat, motorised zone valves, and overheat or heat-dump controls, and the exact combination depends on whether the stove is linked to radiators, domestic hot water, or an existing boiler, which is where correct interpretation of the manufacturer’s schematic becomes the deciding detail.
Frequently Asked Questions About Boiler Stove Wiring
What are the key concepts in boiler stove wiring controls in Ireland?
It is the low-voltage and mains control wiring that coordinates pumps, motorised valves, thermostats, and safety cut-outs so a boiler stove can move heat into radiators and hot water safely. The controls are designed to manage priorities such as circulating heat away from the stove, preventing overheating, and enabling heat dumping where the system design requires it. Complexity tends to come from mixed systems, such as linking a solid-fuel boiler stove with an existing oil or gas boiler, adding multiple zones, or meeting the stove manufacturer’s specific safety interlock requirements.
Which wiring standards apply in Ireland for boiler stove installations?
Electrical installation work in Ireland is governed by I.S. 10101, and the HSA states that I.S. 10101:2020 has replaced ET 101:2008. A boiler stove control setup typically involves safety-critical components, so the practical approach is to use a competent electrician and follow the stove and control manufacturers’ instructions closely, rather than relying on generic wiring diagrams.
Does Part L matter for boiler stove wiring and controls?
Yes, because Part L sets out energy performance requirements for dwellings, and the Government notes that Technical Guidance Documents show how Building Regulations requirements can be achieved in practice. While Part L is not a wiring diagram, it influences how heating systems and controls are expected to perform in real homes, so control choices like zoning, thermostatic regulation, and efficient circulation control can matter to comfort, running cost, and overall compliance intent.
What components are usually involved in boiler stove wiring?
Most boiler stove control systems involve some combination of a circulating pump, thermostats (often including a pipe stat and a cylinder stat), motorised valves for zoning, and safety devices such as overheat thermostats and heat-dump control arrangements. The exact list depends on your system type, whether you have radiators only or radiators plus hot water, and whether the boiler stove is integrated with another heat source. This is why the manufacturer’s wiring diagram is treated as the starting point for any control plan.
Can I wire a boiler stove system myself?
Because boiler stove controls can include mains wiring and safety interlocks, DIY wiring is not a sensible or safe shortcut for most homes. The safer route is to have the system designed and wired by competent professionals who can follow the stove manufacturer instructions and meet Irish electrical requirements under I.S. 10101. Even where some elements are low voltage, mistakes can still lead to pumps not running when they should, incorrect heat dumping, or unsafe overheating conditions.
Where can I compare boiler stoves suitable for Irish homes?
A practical way to start is by browsing a curated range and checking each model’s output split, system suitability, and documentation, then confirming your intended setup with an installer. You can view a selection of boiler stoves in Ireland, and the most useful step after that is matching your preferred stove to the right flue route, controls, and safety components for your property.
Explore Boiler Stoves That Suit Your Heating Setup
If you are planning to heat radiators and hot water from a stove, the quickest win is to shortlist models that suit Irish installation realities and have clear manufacturer wiring diagrams for your installer to follow. Browse the boiler stoves in Ireland collection, compare boiler output versus room output, and keep your flue route and control requirements in mind so you end up with a system that is comfortable, compliant, and straightforward to run.
Wire a boiler stove into an Irish heating system so it can heat your cylinder and radiators safely, without accidentally firing the oil or gas boiler, and without any risk of boiling. Isolate the supply and get your installer to map what you already have in place, including pumps, thermostats, motorised valves, and the existing boiler controls. Fit the stove safety controls early, because they protect the system regardless of what brand of boiler or control wiring you have. Connect the stove pump and the cylinder and radiator zones so either heat source can run independently without back-feeding, then commission and test every cut-out, overrun, and pump-run so residual heat always has a safe path away from the stove, even in a power cut or control fault.
Wiring Process for Boiler Stoves
How do you wire a boiler stove into an existing heating system in Ireland?
Isolate power and have the installer map what’s already there (pumps, stats, motorised valves, and the oil or gas boiler controls). Fit stove safety controls first, then wire the stove pump and cylinder and radiator zones so either heat source can run without back-feeding. Commission and test every cut-out and pump-run so the stove cannot boil, because the controls are only as good as the commissioning.
1. Lock out power and confirm who signs off
In Irish homes, adding or replacing circuits is classed as Restricted Electrical Works, and Safe Electric states this work must be done and certified by a registered contractor under S.I. No. 264 of 2013, so book a Safe Electric Registered Electrical Contractor (REC) and, if gas is involved, a Registered Gas Installer (RGI). The practical point is simple: you want the right person responsible for testing, certification, and the paper trail before any controls are altered.
2. Fit the stove’s safety control chain before any interlink
Start with the basics that stop overheating: a pipe thermostat to bring on the pump, a high-limit stat to kill demand, and pump overrun so residual heat is moved away after the fire dies down. On a boiler stove, that safety chain is not an optional extra, because you are dealing with stored heat and water that can continue to climb in temperature long after you stop “calling” for heat.
3. Integrate with the oil or gas boiler using proper interlocks
Your electrician will wire a relay or boiler interlock and motorised valve logic so the stove can heat the cylinder and radiators while preventing the boiler firing unnecessarily, and vice versa. When you are still choosing appliances, it helps to compare typical layouts across boiler stoves in Ireland and then match the wiring to the manufacturer’s diagram, because the correct interlock approach depends on the stove’s required pump control, heat leak expectations, and the zones you actually want the stove to serve.
Frequently Asked Questions About Wiring a Boiler Stove in Ireland
Do I need a Safe Electric registered electrician to wire a boiler stove?
If the job involves installing or replacing circuits in a domestic property, it falls under Restricted Electrical Works and must be carried out and certified by a Safe Electric Registered Electrical Contractor (REC) under S.I. No. 264 of 2013. Even when the work looks “small”, boiler stove wiring usually touches pumps, controls, and sometimes new fused spurs or dedicated supplies, so you should assume you will need an REC to keep it compliant and safe.
Can a boiler stove and an oil or gas boiler run on the same system?
Yes, and it is common in Ireland, but only if the controls are designed to prevent back-feeding and nuisance boiler firing. The key is correct interlocking using relays and motorised valve logic so the stove can heat the cylinder and radiators without forcing heat through the boiler, and the boiler can run normally when the stove is out.
What are the essential safety controls for a boiler stove setup?
At a minimum you are looking for a pump-start control such as a pipe thermostat, a high-limit safety stat, and a pump overrun function to remove residual heat. The exact package depends on the stove and system design, so the installer should follow the manufacturer’s instructions and confirm the safe heat-dissipation route for your home, because a boiler stove can continue producing heat after the fire has died down.
Why is commissioning and testing so important after wiring?
Because a boiler stove is a live heat source with high stored energy, and the consequences of a control failure are serious. Commissioning proves that the pump runs when it should, that the high-limit control cuts demand correctly, that the overrun works, and that the system cannot “trap” heat, which is how boiling incidents happen.
Can I DIY any part of the wiring or controls?
You can discuss layouts, zone intentions, and control preferences with your installer, but you should not DIY electrical interlocks or stove safety control wiring. In Ireland, restricted electrical works must be carried out and certified by a Safe Electric REC, and any gas-side work must be handled by an RGI, so the safest approach is to keep DIY to planning and leave execution and certification to the professionals.
Shop Boiler Stoves That Suit Irish Heating Systems
If you are planning to link a stove into radiators or hot water, start by choosing a boiler stove with outputs that suit your room and your heating load, then match it to the right control approach from the manufacturer’s diagram. Browse the current range of boiler stoves in Ireland to shortlist models, and bring your shortlist to your installer so you can confirm compatibility with your existing pumps, cylinder zones, and boiler controls before you buy.
Common Wiring Issues and Solutions
Miswiring boiler stove controls, especially pump and overheat safety interlocks, can leave the circulation pump idle while the stove is burning hard. When that happens, the system can overheat quickly and you may get kettling, nuisance tripping, or a dangerous build-up of heat in the boiler circuit. In Ireland, electricians and inspectors work to I.S. 10101, so the “it’ll do” approach often shows up later as failed testing, call-backs, or components damaged by repeated overheating. The damage can be gradual: relays can weld closed, pumps can seize, and you only notice when the hot-water circuit stops recovering properly and heat starts going where you do not want it.
Pump and safety stat wired “wrong-way-round”
This matters because the pump and overheat stat are part of your last line of defence if controls misbehave. The HSA notes that the Irish National Rules for Electrical Installations are set out in I.S. 10101:2020, so get the control wiring checked, inspected, and tested to that standard rather than guessed at. Getting the safety logic right on paper is important, but it is the real-world testing that proves the pump actually runs when the boiler needs it most.
Simple prevention that improves efficiency
This matters because good controls stop the stove overheating the cylinder while rooms stay chilly. Before you even pick an appliance, confirm your installer is wiring the correct pump(s), pipe thermostats, and heat-dump logic for your exact layout so heat moves predictably through the system when the stove is under load. That same planning also makes it easier to match the stove’s boiler output to your pipework, radiators, and hot water demand without fighting the controls every winter.
Control Options for Boiler Stoves in Ireland
Choose controls that match how you actually heat the house, because a boiler stove is only as comfortable and efficient as the system telling it when to run and where the heat should go. Simple thermostat-and-timer controls suit straightforward radiator circuits, while smart controls suit mixed systems and tighter comfort targets. The main difference is whether decisions are made locally (a basic room stat and programmer) or centrally (app control, weather compensation, load compensation). Basic controls are cheaper and easier to fault-find, but they will not manage multiple heating zones elegantly. Smart controls add zoning, schedules, and remote tweaks, but they need tidy wiring, reliable sensors, and a bit of setup care. Both can work with radiators and underfloor heating, as long as the hydraulics (mixing valve and pumps) match the control plan and are set up by a qualified installer.
Wiring centres vs “loose wiring”
A proper wiring centre keeps pumps, thermostats, and zone valves organised, labelled, and easier to test, which matters for safe fault-finding and future maintenance. It also reduces the risk of messy connections being disturbed when other work is done on the heating system, which is when small wiring issues tend to turn into big comfort problems.
Smart zoning in Irish homes
Smart zoning tends to pay off where you have different heat needs across the house, such as an extension, a converted attic, or bedrooms you only heat in the evenings. Ireland’s Part L guidance expects effective time and temperature control for space heating under the current dwelling standards described in Technical Guidance Document L. In practical terms, good zoning and scheduling is one of the easiest ways to avoid overheating rooms and wasting fuel, which is especially noticeable in typical Irish weather where heat demand swings quickly.
Underfloor vs radiators compatibility
Radiators generally run at higher flow temperatures than underfloor heating, so underfloor normally needs a mixing set (to blend down the temperature) and its own zone control so flow temperatures stay sensible and comfortable underfoot. This is also where control choice really matters, because the slower response time of underfloor heating suits steady scheduling, while radiators can react more quickly to room-by-room thermostat changes.
How to shortlist the right setup
Start by matching the stove’s water output to your system type and how you want to control zones, then confirm with your installer how many thermostats, zone valves, pumps, and safety controls are needed. It helps to browse suitable boiler stoves with your installer’s wiring plan in mind, because the stove choice and the control plan need to agree on the job the system is being asked to do.
Frequently Asked Questions About Boiler Stove Control Options in Ireland
Do I need smart controls for a boiler stove?
You do not need smart controls for a boiler stove to work well, especially if you have a simple single-zone radiator circuit and you are happy with a basic timer and room thermostat. Smart controls become more valuable when you want multiple heating zones, different schedules by room, or remote adjustments, and they are most effective when the wiring, sensors, and hydraulics are designed cleanly from the start.
Can a boiler stove run radiators and underfloor heating together?
Yes, a boiler stove can serve a mixed system, but it usually needs proper hydraulic separation and temperature control. Underfloor heating typically requires a mixing valve or mixing set to reduce flow temperature, along with its own pump and zone control, while radiators can usually run at a higher temperature on a separate circuit. A qualified installer should design the pipework and controls so each circuit gets the right temperature and flow.
What is a wiring centre and why does it matter?
A wiring centre is a dedicated box where heating controls and power connections are terminated in an organised way, typically covering zone valves, pumps, thermostats, and the programmer or controller. It matters because it makes the system safer to service, easier to diagnose when something stops working, and less prone to loose connections compared with “loose wiring” spread across junction boxes.
Are there Irish regulations or guidance on heating controls?
Yes. Irish Building Regulations guidance sets expectations around effective time and temperature control for space heating, and Part L is the key reference point for dwellings. The most commonly cited document is Technical Guidance Document L for Dwellings, which informs how controls and zoning are treated in new builds and major upgrades.
What should I tell my installer before choosing controls?
Share the basics that affect control design: the stove model and its water output, whether you are heating radiators only or radiators plus underfloor, how many zones you want, where thermostats can realistically be located, and whether you want app control. It is also worth flagging any planned renovations or extensions, because it is far easier to design zoning and wiring neatly before walls and floors are finished.
Choose Your Boiler Stove Controls With Confidence
If you are planning a boiler stove setup and want controls that suit your home, start by shortlisting appliances that match your heating load and system type, then confirm the wiring and zoning plan with a qualified installer. Browse the current range of boiler stoves and narrow it down to models that fit your radiator or mixed underfloor setup, so you can move from guesswork to a clear, installable plan.
Find the right boiler stove manual before any installation or troubleshooting, because the small details in the manufacturer instructions are what keep your plumbing layout, controls, and safety devices working properly in an Irish home. Identify the exact make and model from the data plate, download the matching PDF from the manufacturer’s official support area, and keep it saved locally so you can refer back to clearances, flue requirements, heat outputs, plumbing schematics, and wiring terminals without relying on memory. Use it as a practical checklist for your installer and for your own records, especially where Irish installs often involve existing chimneys, tight hearth clearances, and mixed heating controls. Treat any mismatch between your setup and the manual as a stop point, because “close enough” is where most control faults, nuisance lockouts, and circulation problems start, and that usually shows up when you are depending on the stove for heat.
Finding Product Manuals for Boiler Stoves
How do you find, download, and use boiler stove product manuals in Ireland?
Start by identifying the exact make and model from the data plate, then search the manufacturer’s Irish support or downloads area for the matching PDF. Save the manual locally and use it to confirm clearances, plumbing layout, and the correct wiring and control terminals before any work starts. If anything in your setup differs from the manual, stop and get your installer to verify it, because “close enough” causes most control headaches.
1. Confirm the exact model details
Check the rating plate (often behind the ashpan door or on the rear) and note the model name, output variant, and serial number. This matters because the same stove range can have different boiler outputs, control options, and minimum clearances depending on the variant, and that feeds directly into how it is safely connected.
2. Download from the manufacturer’s support page
Manuals are typically easiest to find via the manufacturer’s official manuals library so you’re not relying on outdated PDFs shared on forums. If you cannot find your exact model, take a clear photo of the data plate and contact the manufacturer or supplier support, as the correct revision of the manual can be as important as the model name itself.
3. Use the manual like a wiring map, not bedtime reading
Once you’ve shortlisted your appliance type, keep the PDF alongside your notes from the boiler stoves collection and focus on the control schematic, thermostat and circulating pump notes, and safety devices called out by the manufacturer. A few minutes spent checking the correct terminals, sensor positions, and recommended pipework arrangement usually saves hours of fault-finding later, especially when you are tying the boiler stove into an existing heating system.
Frequently Asked Questions About Boiler Stove Product Manuals in Ireland
Where do I find the model number on a boiler stove?
Most boiler stoves have a rating plate or data plate on the rear of the stove, behind the ashpan door, or inside a side panel. It typically lists the model name, serial number, and key outputs. Use those exact details when searching for the manual so you do not end up with the wrong variant.
Is it safe to use a manual I found on a forum or a random PDF download site?
It is a risk. Manuals can be outdated, incomplete, or for a similar looking model with different wiring terminals, plumbing layouts, or clearance requirements. Use the manufacturer’s official support page where possible, or request the correct PDF directly from the manufacturer or an Irish supplier using the data plate details.
What parts of the manual matter most for an Irish installation?
Pay closest attention to required clearances to combustibles, hearth and chimney or flue requirements, ventilation notes, plumbing schematics for the boiler circuit, control wiring diagrams, and the listed safety devices. Irish homes often involve retrofits into existing fireplaces and chimneys, so the flue and clearance pages are usually where problems are avoided.
Can I wire or plumb a boiler stove myself if I have the manual?
The manual is essential for planning and checking, but it is not a substitute for a qualified installer. Boiler stoves involve hot water, safety devices, and controls that need to be set up correctly for safe operation. Use the manual to understand what should be installed and to confirm what your installer is doing, not to take on regulated or high-risk work yourself.
What should I do if my existing setup does not match the manual?
Stop and get it checked by your installer or a suitably qualified heating professional. A mismatch could mean incorrect circulation, wrong control wiring, missing safety components, or unsafe clearances. It is far cheaper and safer to correct it before regular use than to chase faults after the stove is in service.
Should I keep a copy of the manual after installation?
Yes. Save a PDF locally and keep a printed copy if you can. It helps with routine checks, future servicing, replacing parts, and explaining the system to a new installer if you renovate or upgrade controls later, which is common in long-lived Irish heating setups.
Shortlist Boiler Stoves With the Right Manuals and Support
If you are comparing boiler stoves for an Irish install, start by shortlisting models where you can easily access the correct manufacturer manual and confirm the control and plumbing layout before you buy. Browse the boiler stoves collection to narrow down suitable options, then keep the manual for your chosen model on hand so your installer can verify clearances, flue requirements, and safe connection details from the outset.
How Irish Regulations Enhance Stove Performance
Get the best out of a boiler stove by treating it as part of a full heating system, not just a standalone appliance. Your stove’s real-world performance depends on how it’s connected into pumps, pipework, thermostats, safety devices, and your existing heating layout, which is why competent Irish installers work to recognised requirements. In Ireland, that includes the Building Regulations and standards such as I.S. 10101, the National Rules for Electrical Installations, which set out safety requirements for electrical design and installation in Irish premises at 1,000 V AC and below. The same stove can run brilliantly or badly depending on how the controls are integrated, so it pays to understand the practical wiring and control choices that sit behind “good performance”.
Why compliance makes the heat steadier (and safer)
Following Ireland’s Building Regulations means you are designing out risk before you ever light the first fire. The rules around heat-producing appliances exist to reduce the likelihood of overheating, smoke leakage, and unsafe operation under fault conditions, as set out in Technical Guidance Document J. In plain terms, compliance pushes you toward the right flue set-up, the right clearances, the right ventilation, and the right safety approach for a solid-fuel appliance connected to water.
When you are comparing options, it helps to start with the appliance category (for example, boiler stoves in Ireland) and then make sure the control and wiring approach matches your home’s heating layout and safety requirements, because that is where smooth, predictable heat is usually won or lost.
Boiler-stove wiring controls can look intimidating, but the right paperwork and a tidy control layout make faults easier to diagnose and help keep the system safe, compliant, and reliable.
Do I need a registered electrician for the controls?
In Ireland, treat the electrical side as safety-critical and use a Registered Electrical Contractor (REC) where the work falls under controlled or restricted electrical works. Safe Electric advises using an REC for electrical work in your home and asking for a Completion Certificate when the work is finished. You can read more here: Safe Electric: Completion Certificates and CRU guidance on electrical works in your home.
The plumbing and heating work is often certified separately from the electrics, so agree in advance who is responsible for sign-off, paperwork, and commissioning, as that clarity makes any later troubleshooting or warranty query much simpler.
Where do I find the correct manual?
Start with the exact stove model label and match it to the manufacturer’s installation manual and any specific wiring or controls schematic for that model. It is worth double-checking the manual version too, as manufacturers sometimes update wiring diagrams when controls change. If you are comparing options, it helps to keep the manuals side by side as you browse the boiler stoves collection, because control requirements can vary between models even when the heat output looks similar on paper.
What is a wiring centre?
A wiring centre is a dedicated junction box that keeps pumps, thermostats, and motorised valves terminated neatly so future fault-finding is quicker and safer. It also reduces the temptation for “choc-block spaghetti” at the hot press, which is where a lot of messy control problems start. When the wiring is laid out cleanly, it becomes much easier to confirm what is switching what, which matters a lot once you introduce stove safety controls.
What does a “typical schematic” include?
Most Irish boiler-stove setups show a cylinder thermostat, room thermostat, pump, motorised valve(s), and an overheat or safety thermostat interlock so the pump can run when the stove is hot, not only when there is a normal heat demand. That sort of interlock is the practical difference between controls that merely “work” and controls that protect the system during real-world firing, power cuts, or overheating scenarios.
Browse Boiler Stoves That Suit Irish Heating Setups
If you are planning a boiler stove installation and want to compare realistic outputs, sizes, and models that are commonly used in Irish homes, take a look through the boiler stoves collection and shortlist a few options by heat output and layout. Once you have two or three candidates, check the installation and wiring manuals with your installer so you can confirm controls, safety interlocks, and flue requirements before you commit to buying.
What product manuals are available for boilers and stoves in Ireland?
Most boilers and stoves sold in Ireland come with a small set of core documents that are worth keeping together:
Installation manual: clearances, flue requirements, plumbing layout, commissioning checks, and safety devices.
User and operating manual: lighting, refuelling, control settings, alarms, and day-to-day care.
Service manual: burner or appliance servicing steps, test points, fault finding, and replacement intervals.
Spare parts list and exploded diagrams: part numbers that Irish installers and merchants use for ordering.
Wiring diagram and control schematic: how pumps, pipe thermostats, motorised valves, and interlocks should be connected.
If you are integrating a boiler stove with existing oil or gas heating, the wiring diagram is usually the document that prevents the most expensive mistakes.
Where can I find installation and user manuals for Irish-manufactured boilers and stoves?
Start with the appliance data plate (often on the back, side panel, or inside an access door) and note the exact model name, output, and serial number, as manuals can differ across revisions.
Manuals are typically available in three places:
Manufacturer support pages: many Ireland-focused brands host downloadable PDFs, such as the manuals library.
Your installer or commissioning pack: reputable installers usually leave the correct manual version and completed benchmark style checklists where applicable.
Merchant or distributor portals: some Irish suppliers provide updated wiring schematics and addenda when control layouts change.
If you cannot find an exact match, avoid using a “close enough” manual and confirm with the manufacturer or distributor, as small wiring differences can affect pump overrun and safety cut-outs.
Which brands of heating controls and wiring centres are commonly supplied in Ireland?
In Irish homes, you will most often see controls built around familiar zoning layouts such as S-plan (motorised valves per zone) or Y-plan (mid-position valve), with a wiring centre used to keep connections tidy.
Commonly encountered brands in Ireland include:
EPH Controls: widely used for two-zone, three-zone, and hot water control packs.
Honeywell Home: thermostats, motorised valves, and legacy controls that many installers keep compatible with existing systems.
Danfoss: thermostats, programmers, and zone control components.
Heatmiser: frequently used for underfloor heating manifolds and multi-zone control.
SALUS: wireless thermostats and zoning kits that are often fitted during upgrades.
Your best match depends less on brand and more on compatibility with your existing valves, cylinder stat, pumps, and whether you need a stove pump overrun, pipe stats, or an interlock to prevent boilers firing against each other.
Where can heating wiring centres and controls be purchased online in Ireland?
You can buy wiring centres, thermostats, programmers, motorised valves, and control packs through:
Irish plumbing and heating merchants with online stores and local branches for quick collection.
Electrical wholesalers for wiring centres, relays, fused spurs, and suitable cable.
Specialist stove and heating retailers when you are purchasing a boiler stove and want controls chosen to suit the appliance and system layout.
When ordering, check that the product is suitable for Irish setups, particularly the number of zones, cylinder control, and whether you need volt-free contacts for a boiler enable signal.
How should a boiler stove with back boiler be wired into an existing oil or gas boiler system in Ireland?
A boiler stove with a back boiler is normally wired so it can circulate heat safely, protect the stove from overheating, and prevent the oil or gas boiler from firing when the stove is already providing heat. The exact schematic varies by stove make, plumbing layout, and whether you have radiators only, underfloor heating, or both, so the appliance manual and a competent installer’s design are essential.
In typical Irish installations, you will see these control ideas reflected in the wiring:
Dedicated stove circulation pump controlled by a pipe thermostat on the stove flow, so the pump runs only when the stove is producing usable heat.
Overheat protection using the manufacturer-specified safety devices, often including a high-limit stat and a fail-safe way to move heat away from the stove.
Boiler interlock so the oil or gas boiler and its burner control do not fire unnecessarily, often achieved through the wiring centre and the correct use of motorised valve end switches or a boiler enable input.
Hot water priority and zoning coordinated with the cylinder stat and zone valves, so the cylinder can call for heat without creating conflicting pump flows.
Correct earthing, fusing, and isolation at a local fused spur, with clear labelling for servicing.
Because this is mains electrical work tied directly to safety controls and combustion appliances, it is the kind of job where careful, Ireland-specific advice makes a real difference, and it helps to keep that guidance arriving when standards and products change.
