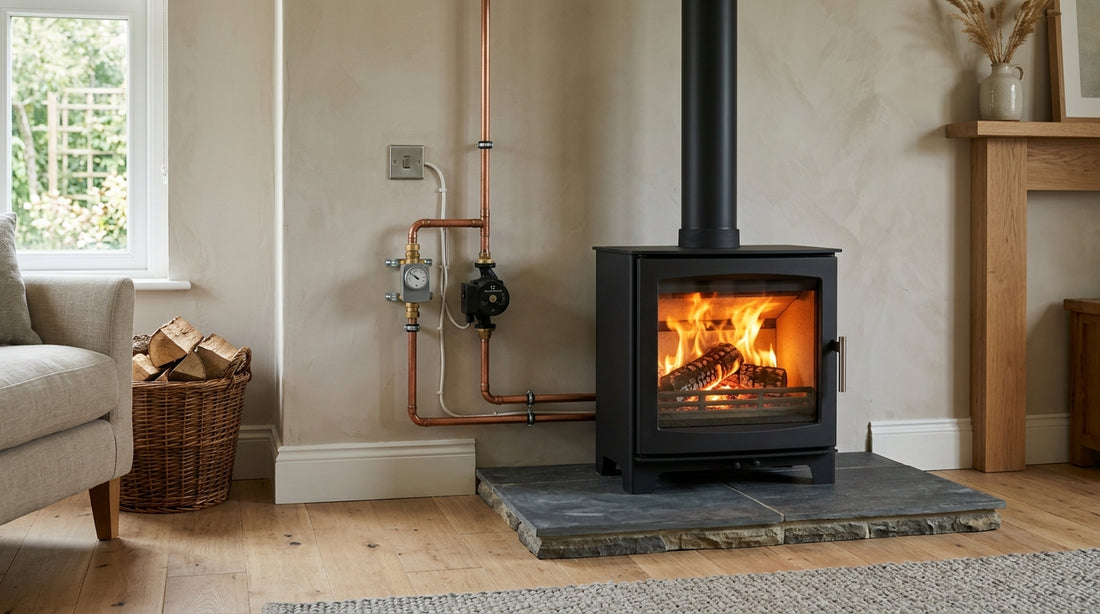

Boiler Stove Wiring Diagrams in Ireland
Boiler stove wiring diagrams matter because the wrong control or safety connection can leave your home without heat, waste fuel, or create real risk.
You use a wiring diagram to understand how a boiler stove integrates with the heating you already have in an Irish home, including radiator circuits, a hot water cylinder, pumps, thermostats, and zone valves. You also see how a stove can be linked with an existing oil or gas boiler, what has to be isolated or prioritised in control logic, and where common components like a pipe thermostat sit in the circuit to switch pumps and protect against overheating. Choices such as gravity versus pumped primary pipework, or running on a sealed and pressurised system where the manufacturer allows it, come with trade-offs around heat transfer, responsiveness, and the safety devices you must include.
Because a boiler stove keeps producing heat after controls stop, you design around Irish expectations for heat dissipation, including a heat-leak or heat dump radiator, and you factor in what happens during a power cut. You keep compliance and efficiency in view through Irish Building Regulations such as Part J and Part L, along with good zoning and maintenance practices like correctly placed carbon monoxide alarms.
With that context in place, you are ready to pin down what a boiler stove is and how it actually moves heat into your radiators and hot water.
Boiler stoves let you heat the room you are in while also feeding heat into your home’s central-heating pipework, which can make a big difference to comfort and hot water in many Irish homes. Use the basics below to understand how heat output is split between the room and the radiators, what that means for your hot water cylinder, and why safe controls and protection are not optional on a solid-fuel wet system. Keep Building Regulations Part J and the relevant Irish standards in mind, because the practical details of your flue, plumbing layout, heat leak radiator, and safety devices tend to decide whether a boiler stove is a smooth upgrade or a headache.
What is a Boiler Stove and How Does it Work in Ireland?
A boiler stove is a solid-fuel stove with a built-in water boiler (a heat exchanger) that sends part of its heat into your central-heating pipework. In many Irish homes, that means it can warm radiators and also heat a hot water cylinder, while still giving direct heat to the room it sits in. The key nuance is that the stove’s heat is split between room and water outputs, so the system must be sized and controlled to avoid overheating, boiling, or nuisance heat dumping.
How it ties into Irish radiators and hot water cylinders
This matters because a boiler stove is effectively acting like a heat source on your wet system. It needs the right pipework, circulation, and safety measures to move heat away reliably when the stove is firing. SEAI’s Domestic Technical Standards and Specifications (used in the context of SEAI-supported works) emphasise following the relevant Building Regulations and applicable standards for solid-fuel installations and wet heating integration, including Building Regulations Part J for heat-producing appliances and safe flue/ventilation practice. You can read the SEAI document here: Domestic Technical Standards and Specifications.
A typical Irish setup you will see is:
The stove heats the room by convection and radiant heat.
The boiler section transfers heat into water and sends it to radiators and often a hot water cylinder (usually via a coil).
The cylinder and radiator circuit need a way to shed heat safely if the fire is still producing heat after the cylinder is satisfied, which is where correct design choices become important in real homes.
That practical reality is why controls and wiring are not just “nice to have” on a boiler stove system.
Why wiring and controls matter
This matters because pumps, thermostats, motorised valves (where appropriate), and safety cut-outs decide where heat goes, and when it moves, especially when the hot water cylinder is already up to temperature. If circulation stops or is incorrectly controlled while the stove is burning, water can overheat quickly, so proper protection is part of safe ownership as much as safe installation.
When you are comparing models, it helps to look at typical Irish-ready options in the boiler stoves collection and pay close attention to the stated boiler output vs room output, as that split influences everything from radiator performance to how “lively” the stove feels in the room.
Frequently Asked Questions About Boiler Stoves in Ireland
Do boiler stoves heat radiators and hot water at the same time?
Yes, in most systems a boiler stove can heat radiators and a hot water cylinder while also heating the room, but the balance depends on the stove’s room output and boiler output and on how your plumbing is arranged. In practice, the cylinder often heats quickly, and the system needs a reliable path for excess heat (commonly a heat leak radiator or a correctly designed gravity zone) so the stove always has somewhere safe to send energy.
Can you connect a boiler stove to an existing oil or gas boiler system?
It is often possible to link a boiler stove into an existing wet system, but it is not a simple swap-in job. You typically need correct hydraulic separation or plumbing design, appropriate controls, and solid-fuel safety measures so one heat source does not interfere with the other. This is an area where a qualified heating installer should assess your existing pipework, cylinder type, and radiator circuit, because the safest layout depends on your home and the stove model.
What safety devices are needed for a boiler stove wet system?
A boiler stove installation normally requires a combination of purpose-built safety measures, which may include a heat leak radiator or gravity circuit, a correctly specified open vent and feed and expansion arrangement where used, circulation pumps wired to run when needed, and overheat protection as required by the system design and manufacturer instructions. The exact set-up should follow the stove manual and Irish good practice for solid-fuel wet systems, because overheating protection is a core risk to manage.
Do boiler stoves need electricity to run?
The stove itself burns fuel without electricity, but many boiler stove systems rely on electric pumps and controls to move heat to radiators and the cylinder. If you have a power cut and your system relies on pumped circulation, the design needs to account for that scenario safely. This is one reason some designs include a gravity-fed heat dump route, but the right approach is specific to the property and should be agreed with your installer.
Are boiler stoves suitable for typical Irish houses?
They can be a strong fit for many Irish homes, especially where you want solid fuel to contribute to space heating and hot water. The best results usually come when the stove output is matched to your heat demand, your radiators are sized sensibly, and your flue and ventilation are correct. Homes that are already very airtight or heavily insulated can still use a stove, but you need to take ventilation and controlled air supply seriously to avoid poor draw and indoor air quality issues.
What is the difference between room output and boiler output?
Room output is the heat you feel in the space where the stove sits. Boiler output is the heat sent into water for radiators and hot water. A boiler stove with a high boiler output may feel less “toasty” in the room than a similar-looking dry stove, because more of the energy is being pushed into the heating circuit, which is exactly why that output split should match how you actually live in the house.
Compare Boiler Stoves for Irish Wet Heating Systems
If you are aiming to heat radiators and hot water from a solid-fuel stove, focus on the room-to-boiler output split and choose a model that suits your heating layout and comfort needs. Browse the boiler stoves collection to shortlist options, then confirm sizing, flue requirements, and control strategy with a qualified installer so the system runs safely and reliably in an Irish home.
Linking Boiler Stoves to Existing Systems
To link a boiler stove into an Irish oil or gas heating setup, plan the hydraulics and heat loads, add the correct safety devices and controls, and have the full system commissioned and tested by a competent installer. In most homes, the existing boiler stays in place as backup, with the stove carrying the bulk of the heating when it is lit. Treat this as proper system design rather than “just plumbing it in”, because solid fuel can keep producing heat during a pump or power failure, and the pipework and controls must be able to fail safe.
1. Check your existing system layout
Confirm whether your current heating is open-vented or sealed (pressurised), because that affects what can be connected directly and what needs separation. Pay attention to how your hot water cylinder is set up (vented cylinder or unvented), where the feed and expansion arrangements sit, and how zoned controls operate, as these details influence both safety and day-to-day usability. Once you know the system type, you can decide how the stove’s heat will be stored and distributed without upsetting the existing boiler controls.
2. Design the link-up and safety devices
A boiler stove installation typically needs heat-dump protection and a safe control strategy, with details depending on the appliance and how your system is configured. SEAI sets out expectations around safe, efficient domestic heating installations in its Domestic Technical Standards and Specifications, and your installer should follow the stove manufacturer’s instructions for required safety components such as thermostatic valves, pump control, and gravity circulation provisions where applicable. It also helps to sanity-check appliance options by comparing typical outputs and water-to-room heat splits in the boiler stoves collection, because an oversized boiler stove can be harder to control and may spend too much time slumbering, which affects efficiency and flue cleanliness. With the design agreed on paper, the real proof comes from how the system behaves under fault conditions as well as normal heating demand.
3. Commission and prove safe operation
Commissioning is where the installer verifies that the controls and safety devices do what they are meant to do in real life. That usually includes confirming pump operation and pump overrun where specified, thermostat call-for-heat behaviour, correct hot water priority if fitted, and what happens during a power cut so the stove cannot drive the system into overheating. A clean handover should also include user guidance on lighting, normal operating range, and what not to do (for example, closing down controls in a way that traps heat), because safe linking is as much about predictable everyday operation as it is about the emergency safeguards. When the stove is integrated properly, the practical questions quickly move from “will it work?” to “will the flue and fuel setup support reliable, clean heat through an Irish winter?”.
Frequently Asked Questions About Linking Boiler Stoves to Existing Systems
Can you connect a boiler stove to an existing oil or gas central heating system in Ireland?
Yes, it is commonly done, but it needs to be designed and installed correctly so the solid-fuel appliance cannot overheat the system during a power cut or pump failure. The existing oil or gas boiler is usually kept as backup and to cover heating when the stove is not lit. Your installer will decide whether the boiler stove can connect directly to your circuit or whether separation is needed, based on whether the system is open-vented or sealed and on the cylinder and controls you already have.
Do you need a heat dump radiator or heat leak circuit on a boiler stove?
In many Irish installations, some form of heat-dump or heat-leak provision is required or strongly recommended, but the exact requirement depends on the stove model, the system layout, and the manufacturer’s instructions. The basic idea is simple: if the stove is producing heat and circulation stops, there must be a safe path for that heat to dissipate. Your installer should follow the appliance manual and good practice guidance such as SEAI’s domestic technical standards where relevant, rather than relying on rules of thumb.
What is the difference between open-vented and sealed systems for a boiler stove link-up?
An open-vented system uses a feed and expansion arrangement and can be more forgiving for solid-fuel integration, depending on the rest of the layout. A sealed (pressurised) system runs at pressure and relies on expansion vessels and safety valves, and it may need additional measures or separation when linking a solid-fuel boiler stove. The system type affects safety device selection, how the cylinder is heated, and how the stove interacts with existing zoning and boiler controls.
Will a boiler stove work during a power cut?
The stove will still produce heat if it is lit, which is exactly why safety design matters. Without power, pumps and controls may stop, so the installation must be able to deal with continued heat production safely. Depending on your setup, that can involve gravity circulation, heat leak provision, correct pipe sizing and routing, and manufacturer-specified protection components, all of which should be confirmed during commissioning.
Can you keep your existing boiler as backup?
Yes, and in most cases it is the sensible approach. The boiler can cover hot water and heating when the stove is off, and it can help maintain comfort during milder weather when lighting a stove would be unnecessary. The key is control strategy, so the two heat sources do not fight each other and so you can run the house in a straightforward way without constant manual intervention.
Do you need a qualified installer to link a boiler stove into radiators and hot water?
Yes. Linking a boiler stove into a wet heating system is not a DIY job because it involves safety-critical design, correct venting or pressurisation arrangements, temperature control, and safe fault behaviour. You also need to follow the stove manufacturer’s installation instructions and ensure the overall installation aligns with Irish expectations for safe domestic heating work, including suitable flue setup and ventilation.
Compare Boiler Stoves That Suit Irish Central Heating Setups
If you are planning to link a boiler stove into an existing oil or gas system, start by shortlisting appliances with the right water output for your radiators and hot water demand, then confirm the link-up approach with a qualified installer before you buy. Browse the boiler stoves collection to compare options by output, fuel type, and format so you can choose a model that suits your home and your heating layout.
Understanding the Heat Dump Requirement
A boiler stove keeps producing heat even if the pump stops or a thermostat is satisfied, so water temperature can climb quickly and you need a guaranteed escape route for that heat. A heat-dump (heat-leak) radiator gives the system a permanent, open path to shed excess heat and help prevent boiling and dangerous pressure issues. In Ireland, this principle matters for both safety and retrofit planning, as modern upgrades favour controllability and predictable heat loss, which is why uncontrolled solid-fuel heat is treated cautiously in many heating designs. The exact setup still depends on your plumbing layout, the manufacturer’s instructions, and a competent installer’s design.
Why a heat-leak radiator is “always on”
This matters because, unlike oil or gas, you cannot instantly shut off combustion, and a permanently available radiator helps keep heat moving out of the stove circuit. In a correctly designed gravity (thermosyphon) circuit, that heat-leak route can still operate during a power cut, which is often when you need it most, and it highlights why safe hydraulics and correct pipe sizing are not optional details.
How this ties into SEAI expectations
This matters in retrofit planning because SEAI heat pump grants use a self-declaration process that includes eligibility and technical requirements around the overall heat pump system and home suitability, so any boiler-stove link-up should be designed to avoid uncontrolled heat undermining the control strategy and the system’s safety logic. Check the current grant requirements directly in the official SEAI heat pump systems grant information, then discuss the proposed integration with your installer before committing to a layout. If you are comparing appliances, it helps to shortlist suitable outputs and boiler-to-room ratios on the boiler stoves collection so the plumbing design starts with realistic heat figures rather than guesswork.
Frequently Asked Questions About Heat-Dump (Heat-Leak) Radiators for Boiler Stoves
Is a heat-dump (heat-leak) radiator required for a boiler stove in Ireland?
In many Irish boiler stove installations, some form of permanent heat dissipation is a key safety requirement because solid fuel cannot be shut off instantly. The exact requirement depends on the stove model, the system design (open-vented or sealed), and the manufacturer’s installation instructions. Your installer should design the system to include the correct safety measures, which commonly include a heat-leak radiator or an equivalent approved safety arrangement.
What is the difference between a heat dump and a standard radiator?
A standard radiator is typically controlled by a room thermostat, time controls, or a TRV. A heat-dump radiator is intended to be permanently available to shed excess heat, so it is usually fitted without a TRV and placed where it can safely release heat even when the rest of the system is satisfied. The aim is reliability under fault conditions, not comfort control.
Will a heat-leak radiator work during a power cut?
It can, but only if the stove and pipework are designed for gravity circulation (thermosyphon), using appropriate pipe sizing, routing, and radiator positioning. If the system relies on pumped circulation, the radiator will not automatically move heat without power. This is why the layout and installer competence matter as much as the appliance choice.
Can you fit a TRV or a valve on a heat-dump radiator?
Usually, no. A heat-leak radiator needs to remain open so it cannot be accidentally shut down, which would remove the safety route for heat. In practice, installers commonly avoid TRVs on the heat-leak radiator and use a straightforward lockshield arrangement where appropriate, in line with the system design and the stove manufacturer’s instructions.
Does adding a boiler stove affect heat pump grant eligibility with SEAI?
It can affect the design approach because heat pumps rely on stable, controllable heat delivery and predictable heat loss, while a boiler stove introduces a heat source that is harder to modulate. SEAI heat pump grants are based on meeting eligibility and technical requirements through their self-declaration and supporting documentation, so any solid-fuel integration should be discussed with your installer and checked against the current SEAI requirements on the official page: SEAI heat pump systems grant information.
Choose a Boiler Stove That Matches Your Heating Plan
If you are planning a boiler stove installation or retrofit in Ireland, start by narrowing down models with the right boiler output for your radiators and hot water demand, then bring those figures to your installer so the safety and heat-dump arrangement is designed correctly from the start. Browse and compare options on the boiler stoves collection to shortlist suitable choices with realistic heat figures for your home.
Using Boiler Stoves on Sealed or Pressurised Systems
Can a boiler stove run on a sealed or pressurised heating system in Ireland? It depends, because many boiler stoves are designed for open-vented plumbing unless the manufacturer explicitly approves sealed operation. Ireland’s Building Regulations guidance in Technical Guidance Document J (Heat Producing Appliances) expects solid-fuel systems to retain a reliable “heat escape” route if power or pumps fail, because the stove continues producing heat even if circulation stops. If sealed operation is allowed, it still needs to be engineered with the correct safety equipment and installed by a competent professional.
When the answer is “no”
If the manufacturer instructions do not permit sealed operation, treat it as open-vented only and shortlist suitable models from the boiler stoves collection before you plan any pipework, controls, or cylinder connections.
Why the safety devices matter
This matters because a solid-fuel fire cannot simply be turned off, and overheating becomes a genuine risk if circulation is interrupted. SEAI’s Domestic Technical Standards and Specifications references the need to follow Irish Building Regulations guidance, including TGD J for heat producing appliances, which is where the expectation of safe heat dissipation and correct ventilation sits in Irish practice. That is why the plumbing design and safety kit are treated as core parts of the installation rather than optional extras.
What “sealed-ready” usually includes
A sealed-approved installation typically needs a correctly sized pressure relief valve, an expansion vessel, and a thermal safety dump arrangement (often a quench coil or heat-leak circuit) suitable for the stove’s boiler output and the overall system design. Those components only work properly when they are selected and commissioned to match the appliance and the property, which is why the manufacturer’s manual and installer sign-off become the real deciding factors.
Frequently Asked Questions About Boiler Stoves on Sealed or Pressurised Systems in Ireland
Are sealed and pressurised systems the same thing?
In most Irish home-heating conversations, yes. A sealed system is a closed, pressurised circuit that uses an expansion vessel to manage water expansion as it heats, rather than a feed and expansion tank open to atmosphere. People may still say “pressurised” even when they mean a standard sealed domestic heating setup.
Why are many boiler stoves designed for open-vented systems?
Because solid fuel keeps producing heat after you close the air controls, and a stove connected to water can overheat quickly if pumps fail or valves close. An open-vented layout gives a simpler, inherently safer pressure path and is widely used in older Irish homes with traditional plumbing layouts, making it a common default unless a stove is specifically designed and certified for sealed operation.
What is a heat-leak radiator or heat dump, and why does it matter?
A heat-leak radiator (or heat dump circuit) is a permanently available route for heat to leave the stove boiler when normal circulation is reduced or stops. It matters because it helps prevent boiling, excessive pressure, and discharge through safety valves in a power cut or pump failure scenario, which is exactly when solid-fuel appliances can get into trouble.
Can you connect a boiler stove to an existing oil or gas boiler on a sealed system?
It can be possible, but it is a design job, not a quick plumbing tie-in. You usually need correct separation and control strategy (often involving a thermal store, neutraliser, or appropriate heat exchanger approach depending on the appliances), plus a safe heat-dissipation route that does not rely on powered controls. The final answer depends on the stove manufacturer instructions, your existing system layout, and a competent installer’s design that aligns with Irish Building Regulations guidance and good practice.
Does SEAI allow solid-fuel boiler stoves on sealed systems?
SEAI does not “approve” individual domestic plumbing designs in a general sense, but its Domestic Technical Standards and Specifications set expectations for safe, compliant domestic energy works and point back to Irish Building Regulations guidance such as TGD J for heat producing appliances. In practical terms, you still need manufacturer permission for sealed operation and a correctly engineered safety solution.
Who should install or certify a boiler stove connected to radiators in Ireland?
A boiler stove installation involves solid fuel, flue safety, ventilation, and wet plumbing, so it should be handled by a competent installer who can follow the manufacturer instructions and align the work with Irish Building Regulations guidance. If you are changing major parts of your heating system, it is also sensible to ensure the full system design is reviewed as one integrated setup, because small layout decisions can have big safety consequences.
Browse Sealed-Compatible Boiler Stove Options With Confidence
If you are planning a sealed or pressurised heating system, start by choosing a boiler stove that is clearly specified by the manufacturer for that type of installation, then work backwards into the pipework and safety design. Browse the boiler stoves collection to shortlist models by output and style, and keep the manual requirements front and centre before you commit to any plumbing layout or parts order.
Room Heat vs To-Water Output
Room heat vs to-water output is the key split that decides whether a boiler stove feels cosy in the sitting room or mainly behaves like a mini-boiler for your radiators and hot water.
Room heat is the kilowatts (kW) that stay in the room through the stove body and glass, while to-water is the kW sent into the heating circuit.
If room heat is too high for an average Irish living room, you will be roasting beside the stove while the rest of the house still asks for heat.
If to-water is too low, your radiators and cylinder will lag, even when the firebox is working hard.
You size it by matching room heat to the actual room volume and insulation level, then matching to-water to the radiator load you genuinely want it to cover, based on how the house is laid out and how you live in it.
How do room heat and to-water compare overall?
Room heat is immediate comfort; to-water is slower, steadier whole-house support through your pipework and heat emitters, and it tends to suit households trying to spread heat beyond the main room.
Room heat
Room heat matters most in older Irish homes with open-plan kitchen and living spaces, because you will feel oversizing straight away as overheating and wasted fuel, especially on milder days when you still want the fire on for comfort.
To-water (boiler)
To-water matters when you expect the stove to contribute to radiators and hot water, so start by shortlisting models with a clear split on the boiler stoves collection.
From there, the real-world results come down to how that output is connected into your existing heating circuit and controls.
Which is best for you?
A room-led split suits “one main room” heating, while a water-led split suits “rads first” setups, and that decision shapes how smoothly the stove can be integrated with your current radiators, cylinder, and any existing boiler.
Are Boiler Stoves Suitable for All Irish Homes?
It depends. They suit plenty of Irish homes where you can run safe pipework, fit the right heat controls and safety devices, and provide permanent ventilation, but they are a poor fit where those basics cannot be done properly. In Ireland, compliance expectations sit under Building Regulations guidance such as TGD J, so an installer-led design matters. The biggest deal-breakers are usually space, ventilation, and compatibility with your existing heating layout, especially once you start looking at the realities of flue routing.
Flats, airtight retrofits, and “no chimney” homes
If adding permanent ventilation and a compliant flue route is not realistic, a boiler stove is usually the wrong battle. This comes up a lot in apartments, very airtight retrofit projects, and homes where there is no existing chimney and the external flue route would be awkward or unsuitable. Even where it is technically possible, you still need enough space for proper clearances, safe pipework runs, and access for servicing, which is where many “it should fit” ideas fall down in practice.
Why regs make the answer “it depends”
The Department’s Technical Guidance Document J (published 4 December 2020) sets the safety baseline for heat producing appliances, including solid fuel appliances, so suitability is about compliance as much as comfort. In plain terms, the stove, flue, hearth, ventilation, and installation details must work together safely in your specific house. That is why the sensible approach is to treat the stove output and the heat-to-water plan as part of the same decision, rather than choosing a model on looks alone.
When it’s a good fit (and a practical next step)
If you have a sensible stove location and a straightforward link-up plan to your radiators or hot water, browsing boiler stoves in Ireland is a handy way to compare heat to room versus heat to water before you get into the finer points of plumbing, wiring, and controls. That comparison tends to clarify whether you are trying to heat the space you are sitting in, push more energy into the system, or strike a balanced split that suits day-to-day living.
Frequently Asked Questions About Boiler Stoves in Irish Homes
Do boiler stoves need a chimney in Ireland?
A boiler stove needs a safe, compliant flue system. That can be an existing masonry chimney that is suitable and correctly lined, or a correctly specified factory-made flue system where appropriate. The exact requirements depend on the appliance, the route, and your home, and they must align with Irish Building Regulations guidance such as TGD J, along with the manufacturer’s installation instructions.
Can you install a boiler stove in an airtight retrofit house?
Sometimes, but it is often challenging. Airtight homes typically need carefully planned permanent ventilation and a flue setup that maintains safe combustion and avoids smoke spillage. The more airtight the house, the more important it is that the stove choice, ventilation provision, and commissioning checks are treated as one joined-up job by a qualified installer, because real-world performance depends on air supply as much as nominal stove output.
Are boiler stoves suitable for apartments and flats?
In many cases, no, mainly due to constraints around permanent ventilation, flue routing, clearances, and building management rules. Even where a flue route looks possible on paper, access for installation and ongoing servicing can be a major limiting factor. It is a situation where an installer assessment early on can save a lot of time and expense.
What are the main reasons a boiler stove is not suitable for a home?
The most common issues are an unsuitable flue route or chimney, inadequate ability to provide permanent ventilation, lack of space for safe clearances and pipework, and incompatibility with the existing heating system design. Boiler stoves also rely on proper safety devices and controls in the overall system, so homes with awkward plumbing layouts or limited options for safe integration can be poor candidates.
How do I choose between heat-to-room and heat-to-water?
It comes down to what you need most day to day. If the room where the stove sits is your main living space, too much heat-to-water can leave the room feeling underpowered, while too much heat-to-room can overheat the space and still not meaningfully support your rads or hot water. Comparing models by their split output is a practical way to shortlist options, and your installer can sanity-check the plan against your radiator load and hot water setup.
Compare Boiler Stove Outputs for Your Home
If you are at the stage of narrowing down what actually suits your house, start by comparing boiler stove models by heat-to-room vs heat-to-water and shortlist a few that match how you live day to day. Browse the range of boiler stoves in Ireland and use your shortlist as the basis for an installer conversation on flue routing, ventilation, and safe system integration.
The Necessity of Professional Design and Installation
A boiler stove is both a heating appliance and part of your wet-heating system, so the design needs to control heat safely and the installation needs to prove it works under real conditions in your home. In Ireland, carbon monoxide alarm requirements are set out for certain housing standards, which shows how seriously fuel-burning risk is treated. The nuance is that even a neat wiring diagram can be wrong for your house if the plumbing layout, venting, or controls do not match the stove’s safety needs, and that is where proper design earns its keep.
Why compliance matters more than a tidy diagram
Good design matters because it ties safety devices to how you actually live in the house, not just how the cables look on paper. Requirements around carbon monoxide alarms in homes with fuel-burning appliances are set out in Ireland’s minimum standards guidance on gov.ie, including the expectation for a CO alarm in the room with an open fire, stove, or other combustion appliance, and additional alarm coverage near bedrooms, fitted in line with the manufacturer’s instructions and within end-of-life dates. See the Government of Ireland guidance on heating facilities and CO alarms in the Housing Standard for the Accommodation Recognition Payment Scheme. A competent installer will treat this kind of safety baseline as part of the overall plan, alongside the stove manual and good practice on ventilation, flue performance, and safe clearances, because those details affect every decision you make about how the system is controlled day to day.
Why your existing heating system changes the wiring plan
Proper installation matters because a boiler stove must play nicely with pumps, thermostats, and any existing boiler without creating overheating or back-circulation problems. The controls and plumbing design can change depending on whether you have an open-vented or sealed system, what your hot water cylinder setup looks like, and how the heat is split between room output and water output on the specific appliance. When you are comparing options, it helps to start with realistic outputs and layouts from boiler stoves in Ireland, then let a professional design the controls around your current pipework so the stove integrates safely and comfortably into how you heat the house.
Irish Building Regulations for Boiler Stoves
If you are fitting a boiler stove in Ireland, it needs to comply with the Building Regulations for safe combustion, fire protection, and energy performance. That means wiring, interlocks, and heating controls are not just “nice to have”, they are often part of what makes the overall installation safe and defensible. The key rules sit in Part J (appliance, flue, air supply) and Part L (conservation of fuel and energy), and SEAI guidance is commonly used as a practical benchmark when you are upgrading heating systems. The details still come down to your chimney condition, ventilation provision, and whether you are tying into an existing open-vented or sealed (pressurised) wet system, so it pays to check the specifics before you commit to a stove output and plumbing layout.
Part J and Part L: the legal baseline
Part J and Part L are listed in the Second Schedule of the Building Regulations, 1997 (S.I. No. 497/1997), which is why installers focus so heavily on air supply, safe flueing, and protecting the building from overheating and fire risk. In practice, most people use the Government’s Technical Guidance Documents as the day-to-day reference points for how to meet those legal requirements, including Technical Guidance Document J: Heat Producing Appliances and Technical Guidance Document L: Conservation of Fuel and Energy (Dwellings). Once the regulatory baseline is clear, the real-world question becomes whether the heating controls and plumbing arrangement are up to modern expectations for safety and efficiency.
SEAI technical guidance (controls and plumbing expectations)
SEAI’s Domestic Technical Standards and Specifications set out control and safety expectations for common heating works, and it is a handy checklist while you shortlist from boiler stoves in Ireland or plan how to connect to pumped zones and domestic hot water. Even if you are not doing a grant-backed upgrade, the same principles apply: you want a system that can dissipate heat safely, control temperatures properly, and avoid wasting heat through poor control strategy, because a boiler stove that is brilliant on paper can be frustrating in day-to-day use if the plumbing and controls are not thought through.
Frequently Asked Questions About Irish Building Regulations for Boiler Stoves
Do I need Building Control approval to install a boiler stove in Ireland?
It depends on the nature of the works. Like-for-like replacement in an existing fireplace opening can be straightforward, but anything that materially alters the heating system, chimney, flue route, ventilation, or the structure of the building can trigger additional requirements. The legal requirements come from the Building Regulations, and compliance is typically demonstrated by following relevant Technical Guidance Documents, particularly TGD J for combustion appliances and TGD L (Dwellings) for energy performance, so it is worth confirming the scope with a competent installer for your specific property.
Which parts of the Building Regulations matter most for boiler stoves?
Part J and Part L are the big ones. Part J is where flues, chimneys, air supply, hearths, clearances, and safe operation sit, and it is the backbone for preventing fire and carbon monoxide risks. Part L is about conserving fuel and energy, which pushes you towards good controls and sensible system design so the heat you make is actually usable and not wasted through poor zoning or control.
Is SEAI guidance mandatory if I am not applying for a grant?
SEAI documents are not legislation, but they are widely treated as a strong “best practice” reference for heating upgrades in Irish homes. SEAI’s Domestic Technical Standards and Specifications are especially useful when you are assessing whether your planned controls, safety devices, and overall layout look like a modern, well-controlled system rather than a workaround.
Can I connect a boiler stove to my existing radiator and hot water system?
Often yes, but it is not a simple “pipe it in and off you go” job. Your installer needs to confirm compatibility with the existing system type (open-vented vs sealed), cylinder arrangement, heat leak or safety heat dump approach where required, and whether the existing pipework and radiators are suitable for the boiler output. The safest approach is to decide the connection strategy before you buy, because the right boiler stove output and control plan are closely tied to how the wet system is set up.
Do Irish regulations require carbon monoxide alarms with a boiler stove?
Carbon monoxide risk is treated seriously under Part J. The detailed expectations are set out in the Technical Guidance around solid fuel and combustion appliances, and installers typically include CO alarm provision as part of a compliant, safety-focused installation. Always follow the appliance manufacturer instructions and your installer’s advice on siting and specification, because alarm type and placement matter as much as having one in the box.
Where can I browse suitable boiler stoves for Irish homes?
A practical way to narrow the options is to start with a reputable Irish collection, compare boiler output versus room heat output, and only then look at physical dimensions and styling. You can view a range of options here: boiler stoves in Ireland, and it is still worth confirming flue and system suitability before you settle on a specific model.
Compare Boiler Stoves That Suit Irish Regulations and Real-World Installations
If you are planning a boiler stove installation, pick your shortlist with the Irish compliance basics in mind: Part J for flues and air supply, Part L for energy performance, and SEAI-style control expectations for a system that behaves properly day to day. Browse the boiler stoves in Ireland collection to compare outputs and formats, then confirm your flue route, ventilation, and wet-system connection plan with a qualified installer before you buy.
Heating Controls and Zoning for Efficiency
Good controls cut running costs because they stop a boiler stove pumping heat into rooms you are not using, and they prevent long, wasteful burn cycles. The real win is a steadier indoor temperature, so you burn less fuel to feel comfortable. The caveat is you only get the benefit if the system is wired and commissioned correctly to suit your pipework, pumps, and hot water priority, so it is a job for a competent, suitably qualified installer.
Why zoning matters in Irish homes
Zoning pays off because many Irish houses heat unevenly, particularly where you have extensions, converted attics, older insulation levels, or a mix of radiators and a hot water cylinder on the same system. A control upgrade is also treated as a recognised energy measure under the SEAI Better Energy Homes scheme, which is why it comes up so often in retrofit conversations, even when you are focused on the stove itself. See the official scheme details on Better Energy Homes.
That focus on comfort and waste reduction only really lands when you are clear on what you want each part of the house to do.
What to plan before you touch wiring
Before any wiring diagrams, decide which areas are zones and how hot water will be prioritised, especially if you are linking a boiler stove into an existing radiator and cylinder circuit. Think about when you actually need heat in living areas versus bedrooms, and whether the hot water cylinder should be protected with a dedicated priority control so it heats reliably without overheating the rest of the system.
It also helps to shortlist suitable outputs from boiler stoves in Ireland so the controls match the appliance and the existing circuit layout, because zoning and hot water control choices usually come down to the reality of your pipe runs, pump arrangement, and the boiler output you are trying to manage safely.
Carbon Monoxide Alarms and Maintenance
Fit a carbon monoxide (CO) alarm, keep the stove and flue clean, and book routine servicing before the heating season starts. Check air vents, seals, and flue draw as you go, because small restrictions can turn into smoky burns and poor boiler performance. Treat any CO alarm activation, persistent odour, or soot fall as a stop-and-check moment, not “one of those things”, as it usually points to a fault that needs attention.
1. Install and test a CO alarm
Start with the alarm because CO is invisible and fast-acting, and you only get one chance to catch it early. SEAI specifies that when installing a solid fuel appliance such as a multi-fuel stove, you should provide a CO alarm complying with I.S. EN 50291. Follow the alarm manufacturer’s siting and testing instructions, and replace the unit at end of life, as older alarms can become unreliable just when you need them most.
2. Clean the appliance little-and-often
Build cleaning into your routine because ash, tar, and blocked airways lower efficiency and can push smoke back into the room. Empty ash safely, keep air inlets clear, and wipe down door glass and rope seals so the stove stays controllable. When a stove is easy to control, you are less likely to run it slumbering and smoky, which helps keep the flue cleaner between sweeps.
3. Service the boiler stove and sweep the flue on schedule
Book a professional service because boiler stoves add water-side safety components such as pumps, thermostats and heat-dump protection that need checking under heat. A competent chimney sweep can also spot early signs of poor draw, leaking joints, or tar build-up before they become a bigger issue. If you’re planning parts or upgrades alongside servicing, the practical notes in boiler stove installation in Ireland help you line up the decisions that matter when linking into an existing heating system.
Frequently Asked Questions About Carbon Monoxide Alarms and Boiler Stove Maintenance
Do I legally have to fit a carbon monoxide alarm with a stove in Ireland?
In practice, you should treat it as essential safety equipment for any solid-fuel appliance. Irish guidance used across domestic installs, including SEAI’s domestic technical standards, specifies providing a CO alarm compliant with I.S. EN 50291. Your installer may also have specific requirements based on the appliance manual and the room layout, so it is worth confirming before the install is signed off.
Where should you place a CO alarm in a room with a stove?
Place it according to the CO alarm manufacturer’s instructions and the stove manufacturer’s guidance, as positioning can vary by product and room. Avoid guessing based on “high or low” rules of thumb, because CO mixes with air and correct siting is about getting a reliable reading without nuisance alarms. If the room has an unusual layout, a sloped ceiling, or a stove recessed into a fireplace opening, ask your installer to confirm the best location.
How often should I test my carbon monoxide alarm?
Test it as often as the manufacturer recommends, and check it routinely during the heating season when the stove is in regular use. Also test it after you change batteries, after a long period of non-use, or if you have had any chimney work done that could affect ventilation or flue draw. If an alarm is nearing its expiry date, replace it rather than stretching it out.
How often should a boiler stove be serviced in Ireland?
Most homeowners book a service annually, ideally ahead of the main heating season, but you should follow the stove manufacturer’s servicing schedule and your installer’s advice. Boiler stoves have extra safety and system components on the water side, so servicing is not only about cleaning the firebox. A proper service checks operation under heat, confirms safe heat-dump protection, and helps prevent nuisance issues like poor circulation, overheating, or soot build-up.
How often should I get my chimney or flue swept?
The correct interval depends on the fuel you burn, how you run the stove, and the flue set-up, so follow the stove manual and your chimney sweep’s advice. As a rule of thumb, more sweeping is needed when burning wood that is not properly seasoned, when the stove is run with low air settings for long periods, or when you see signs of tar, soot fall, or a weakening flue draw. Keeping a simple record of sweep dates and any observations helps you spot patterns before they become problems.
What are the warning signs that my stove or flue needs attention?
Take any of these seriously: CO alarm activation, smoke spillage into the room, persistent odours, soot or debris falling into the fireplace, difficulty getting the stove to draw, blackened glass that returns quickly, or a stove that is hard to control. These symptoms can point to blocked air inlets, a restricted flue, poor ventilation, failing seals, or an installation fault, and they are worth stopping to investigate rather than “pushing through”.
Can I service or repair a boiler stove myself?
You can do low-risk routine care such as safe ash removal, cleaning accessible surfaces, and checking visible rope seals, but leave servicing and repairs to a competent professional, particularly anything involving the flue system or the boiler and plumbing side. Boiler stoves involve hot water safety controls that must work reliably under load, and the consequences of a mistake are not minor. A good approach is to handle the simple housekeeping yourself and book a proper annual service for the safety-critical checks.
Make Your Stove Safer and Easier to Live With
If you are fitting a stove or tightening up your maintenance routine, take a minute to check you have the basics covered: a compliant CO alarm, the right cleaning tools, and the correct flue parts for your set-up. Browse the flue pipes and accessories collection to match components properly, or explore the boiler stoves collection if you are planning a system link-up and want to compare options before you book an installer.
Importance of kW Ratings and Room-to-Water Split
kW ratings and the room-to-water split matter because they decide whether a boiler stove will actually meet your heat demand and where that heat ends up. The kW rating tells you the stove’s potential output, while the split tells you how much of that output is delivered to the room versus sent into radiators and domestic hot water. In an Irish context, that choice feeds into comfort, fuel use, and overall heating performance, and it can influence how the home is assessed in systems such as SEAI’s DEAP, where solid-fuel appliances form part of the broader heating picture. The part people get caught by is that insulation levels, ventilation, and how you operate the stove can swing the real-world result quite a bit, even if the brochure numbers look perfect.
How kW ratings prevent underheating and overheating
A correctly sized stove keeps the room comfortable without forcing you to “slumber” it (running it choked down to avoid overheating), which is bad for efficiency and can contribute to soot and tar build-up in the flue. You can compare real options in the boiler stoves in Ireland collection while checking the stated outputs, but it is worth reading the manufacturer’s figures carefully, as many boiler stoves list separate total, to room, and to water outputs. That’s where the split starts to matter in practice, not just on paper.
Why the room-to-water split changes real comfort
A stove with a big water share can leave the sitting room cooler than expected, because more of the heat is exported into the heating circuit instead of being released into the space you are actually sitting in. SEAI’s DEAP guidance for solid-fuel space-and-water heating reflects that split when characterising heating performance, which is another reason you should avoid choosing purely off the headline kW number. Once you know how much heat you want in the room versus the system, the practical question becomes how you will run the stove safely and efficiently day to day.
How Consultants Help with Boiler Stove Installations
Boiler stoves tend to perform best when someone designs the full heating circuit, not just the fireplace opening. In Ireland, SEAI guidance is often used as a reference point because it focuses on controls and safety, not just whether the stove lights. Your house layout, existing hot water cylinder, and radiator sizing can turn a good stove into a poor performer if they are not planned as one system, which is why design details matter as much as the appliance itself.
Getting the system design right before fitting starts
A consultant or heating system designer typically maps heat loads, pipe runs, and safety controls so you do not end up with sludged radiators, kettling, or overheating. SEAI’s own standards call out essentials like carbon monoxide alarms and solid-fuel safety measures in its Domestic Technical Standards and Specifications, including the requirement to provide a CO alarm complying with I.S. EN 50291 for solid-fuel installations. When those safety devices and control components are planned properly on paper, it becomes far easier to specify a boiler stove that suits how your home actually runs day to day.
Consultant vs installer (and why you often need both)
An installer is mainly accountable for correct fitting and commissioning on the day, while a consultant is thinking weeks ahead about component choices and how the boiler stove will behave in real Irish winter use. In practice, you often want both viewpoints because the person designing the circuit is looking at heat demand, domestic hot water priority, safety venting, and how the stove integrates with any existing boiler or controls, while the installer is focused on getting the appliance, flue, and plumbing connected and tested correctly.
Once you have a sensible design in mind, it becomes much easier to shortlist suitable outputs and formats from boiler stoves in Ireland and avoid buying a model that is awkward to integrate with your existing heating setup.
FAQs on Boiler Stove Wiring Diagrams in Ireland
Read a boiler stove wiring diagram as a safety map, not just a set of connections. The correct setup depends on your plumbing layout, your heating controls, the type of hot water cylinder you have, and the safety devices specified by the stove manufacturer. A competent installer will follow the manufacturer’s schematic as the starting point, then adapt it to your pump(s), cylinder controls, and any existing oil or gas boiler, while keeping the required interlocks and overheat protection in place. That detail matters because “standard” wiring can look very different between gravity-fed and pumped circuits, and between older S-plan and Y-plan style control layouts commonly found in Irish homes.
Do I need a qualified electrician?
Yes. In Ireland, the certification matters as much as making the connection safely. Safe Electric states that, under the Electricity Regulation Act 1999, electrical works (excluding minor works) must be certified by a Registered Electrical Contractor (REC) using a completion certificate. See Safe Electric’s completion certificates guidance for what is and is not considered minor works. Even where part of the wiring is low-voltage control, the mains supply, fused spur, and any changes to fixed wiring should be handled and certified correctly, which keeps you covered for safety and insurance.
Why do wiring diagrams differ between boiler stoves?
They change based on the stove’s built-in controls and safety devices, such as a thermostat, pump control, pipe stat(s), and overheat stat(s), plus what the stove is actually serving. A boiler stove can be set up to heat radiators, domestic hot water, or both, and the wiring needs to match the plumbing arrangement so pumps run when they should and stop when they must. The cleanest way to avoid confusion is to shortlist the right appliance type and output, then work from the exact manual for that model. If you are comparing options, start with a shortlist from boiler stoves in Ireland and check each manufacturer schematic against your own system layout.
Can I wire it into my existing heating system?
Sometimes, yes, but it nearly always needs proper interlocks and controls so one heat source cannot push hot water the wrong way through another appliance or circuit. In practice, that can mean additional motorised valves, correctly placed thermostats or pipe stats, and wiring that prevents pumps from running in unsafe conditions. Getting those details right depends on how your current boiler, hot water cylinder, and zone controls are arranged, which is why the real decision is usually made at the point where the stove is being integrated into your existing pipework and heating controls.
Shop Boiler Stoves That Suit Irish Heating Systems
If you are planning a boiler stove install or upgrade, start by choosing a model that matches your home’s heat demand and the way you want to run radiators and hot water. Browse the boiler stoves in Ireland collection to shortlist options, then share the model and manual with your installer or electrician so the wiring and controls are designed around the correct schematic and safety devices for that stove.
What is a pipe thermostat on a boiler stove circuit, where is it fitted, and what does it do?
A pipe thermostat (often called a strap on stat) is a temperature sensor that clamps onto the heating pipework, commonly on the stove flow pipe as it leaves the boiler stove.
On Irish boiler stove setups it is typically used to switch the circulation pump on only when the stove water is hot enough, helping to avoid pumping lukewarm water around the system and reducing the risk of condensation and tar in the stove. It is also used as a simple safety and control interlock, such as driving a heat dump pump or calling for a zone to open when the pipe reaches its setpoint, depending on the control strategy.
What is the importance of kW ratings and the room-to-water split in boiler stoves?
The kW rating tells you how much heat the stove can deliver at its tested output, but the part that matters most for system design is the split between room heat and to water (boiler) heat.
A stove with a high to water output can support radiators and a cylinder coil, but it also demands correct pipe sizing, pump control, and a dependable heat dump route.
A stove with a high room output can easily overheat the living space in many Irish homes, even if the radiators still feel underfed.
Matching the split to your Irish house layout, insulation level, and how you actually use the room keeps the stove comfortable to sit beside while still making the plumbing side stable and predictable.
How does a boiler stove system behave during a power cut in Ireland?
During a power cut, any pumps, motorised valves, and electronic controls stop, so a pumped boiler stove circuit may stop circulating water even though the fire is still producing heat. That is why many Irish boiler stove installations are designed with a passive safety route, such as a gravity heat dump radiator (heat leak) and an open vented arrangement where permitted by the appliance manufacturer.
In practical terms, a well designed system should still be able to shed heat safely without relying on mains power, and your lighting a fire should never depend on a pump staying live to prevent overheating.
What wiring terminals are specific for zone thermostats, pumps, and boiler power on pre-wired Irish control boards?
Pre wired Irish heating control boards vary by brand, but the terminal naming is usually consistent enough that you can identify the key connections on the wiring diagram supplied with the board:
Zone thermostats (space stats): typically land on a COM and CALL (NO) pair for each zone, with the thermostat switching a live feed back to the zone valve or zone input.
Cylinder thermostat: commonly provided as a dedicated pair (again, COM and CALL), feeding the hot water zone valve.
Circulation pump: often has a clearly labelled PUMP L and PUMP N (plus Earth), sometimes with a pump output that only goes live when there is a heat demand.
Boiler power and boiler call: usually includes Permanent Live (L), Neutral (N), and Earth to supply the board, and a separate Boiler Switch Live (SL) output that sends a call signal to the boiler.
Because wiring colours, link wires, and terminal labels differ between boards, use the manufacturer diagram for the exact terminal numbers and never assume a terminal marked “L” is a switched live rather than a permanent feed.
How can I design a gravity primary vs pumped primary circuit for a boiler stove installation in Ireland?
A gravity primary is designed so hot water can circulate naturally from the stove to a dedicated heat dump radiator or cylinder coil using correct pipe routing, minimal resistance, and suitable pipe diameters as specified by the stove manufacturer. It relies on heat rising and cooler water falling, so it needs short runs, consistent upward gradients on flow, and careful positioning of the heat dump emitter.
A pumped primary uses a circulation pump to move heat from the stove to the cylinder and radiators, normally enabled by a pipe thermostat on the stove flow. This approach can be easier to integrate with zoning and modern controls, but it increases dependence on electrical components, so the overall design still needs a reliable overheat strategy, correct venting where required, and a clear heat dump path.
If you want the reassurance of a system that is comfortable day to day and resilient when conditions are less predictable, getting regular, practical guidance makes the decisions much easier to live with.
Stay informed and warm. Subscribe to our newsletter for clear, Ireland specific tips on boiler stoves, controls, and safe ways to plan upgrades.
If you are comparing options or want fewer surprises before you bring in an installer, keep a note of the guidance you trust and come back to it when you are ready to act.
StoveBoss editorial accountability
Who wrote and checks this guide
Written by
Ciaran Kilbride
StoveBoss editorial author
Ciaran Kilbride is the named editorial author accountable for the version of this StoveBoss guide shown here.
View Ciaran's public profile (opens in a new tab)
Technical review assigned
Aaron Furlong
Technical reviewer, StoveBoss
Aaron Furlong is assigned to the immediate technical-review workflow. This label does not claim that a completed human review has already taken place.
View Aaron's public profile (opens in a new tab)Published Updated
Technical specifications, regulations and safety-critical work should be checked against current manufacturer instructions and, where required, with a suitably qualified professional.
