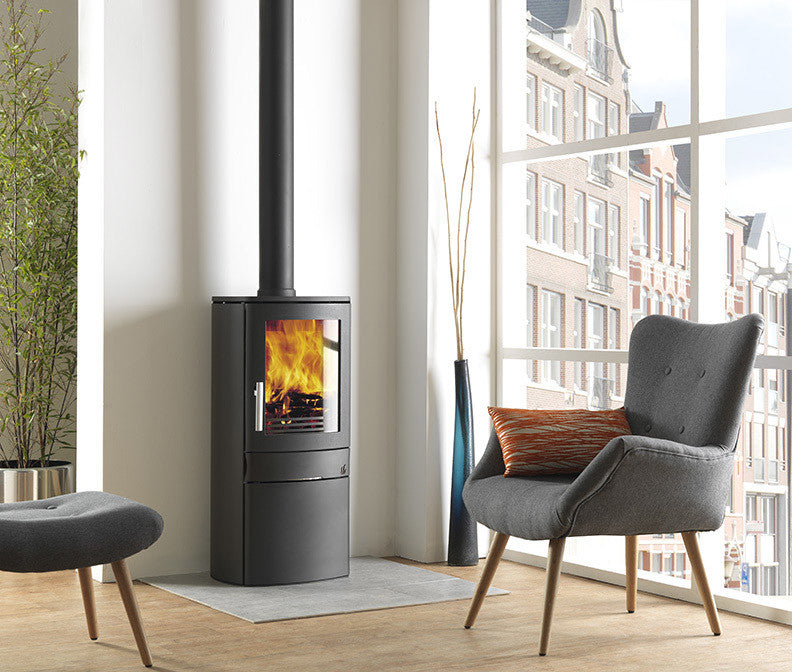

ACR Neo 1C ECO Stove (with cupboard base)

Overview

Warranty 10 years Height 1062mm Width 490mm Depth 390mm Output Range 5kw nominal (2.5Kw min / 7Kw max) Efficiency 72.3% gross 79.4% nett Hearth Requirement Superficial non combustible 12mm hearth required (see Bldg Regs) - below 100 degrees Weight 110Kg Flue Diameter 125mm (5”) Smoke Exempt?

Yes - approved by DEFRA for woodburning in smoke controlled areas Log Length 40cm EEI classification for ecolabelling 2018 A

At a glance

• Heat output: 5kw nominal (2.5Kw min / 7Kw max)
• Efficiency: 72.3% gross 79.4% nett
• Width: 490mm
• Height: 1062mm
• Depth: 390mm
• Flue size: 125mm (5”)
