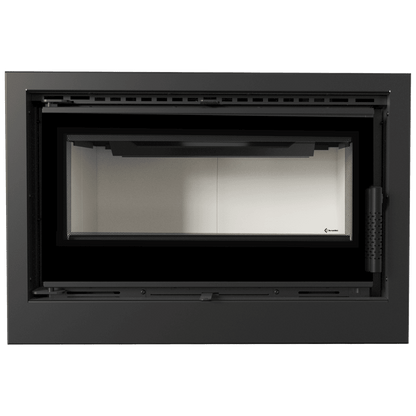

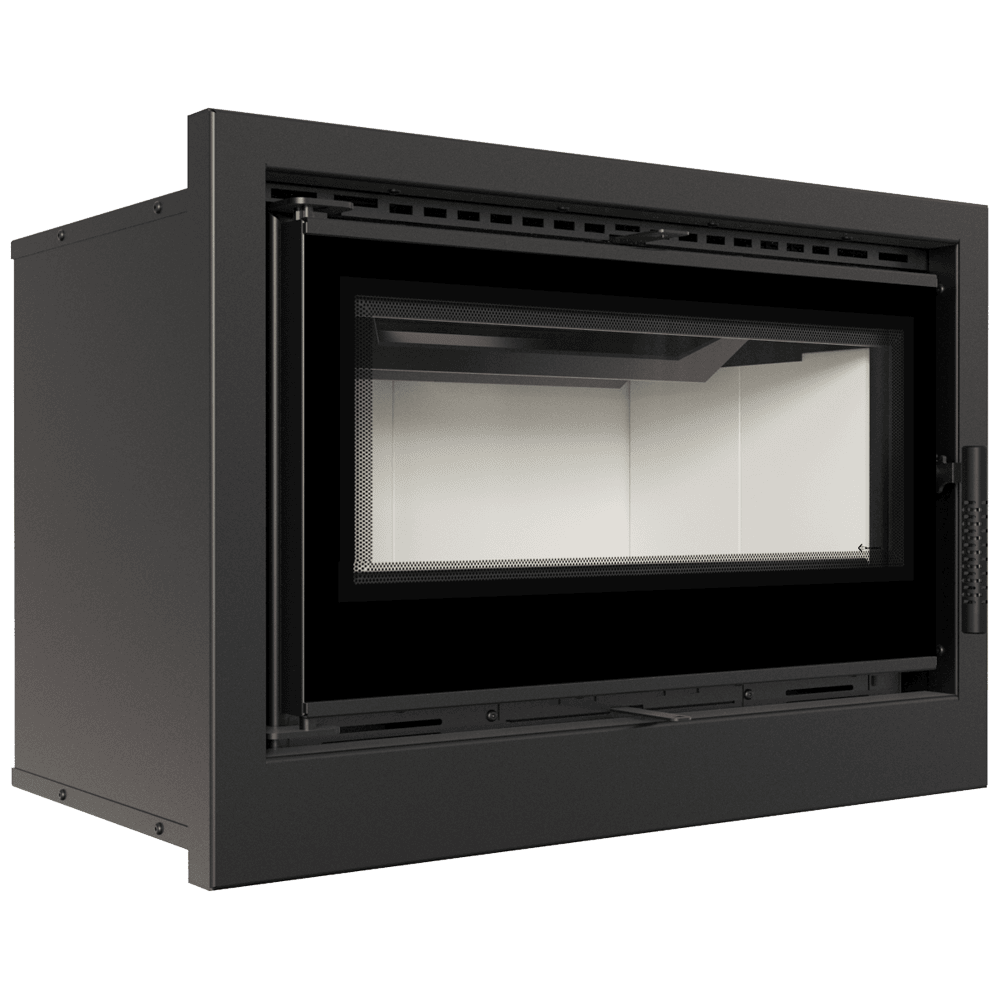

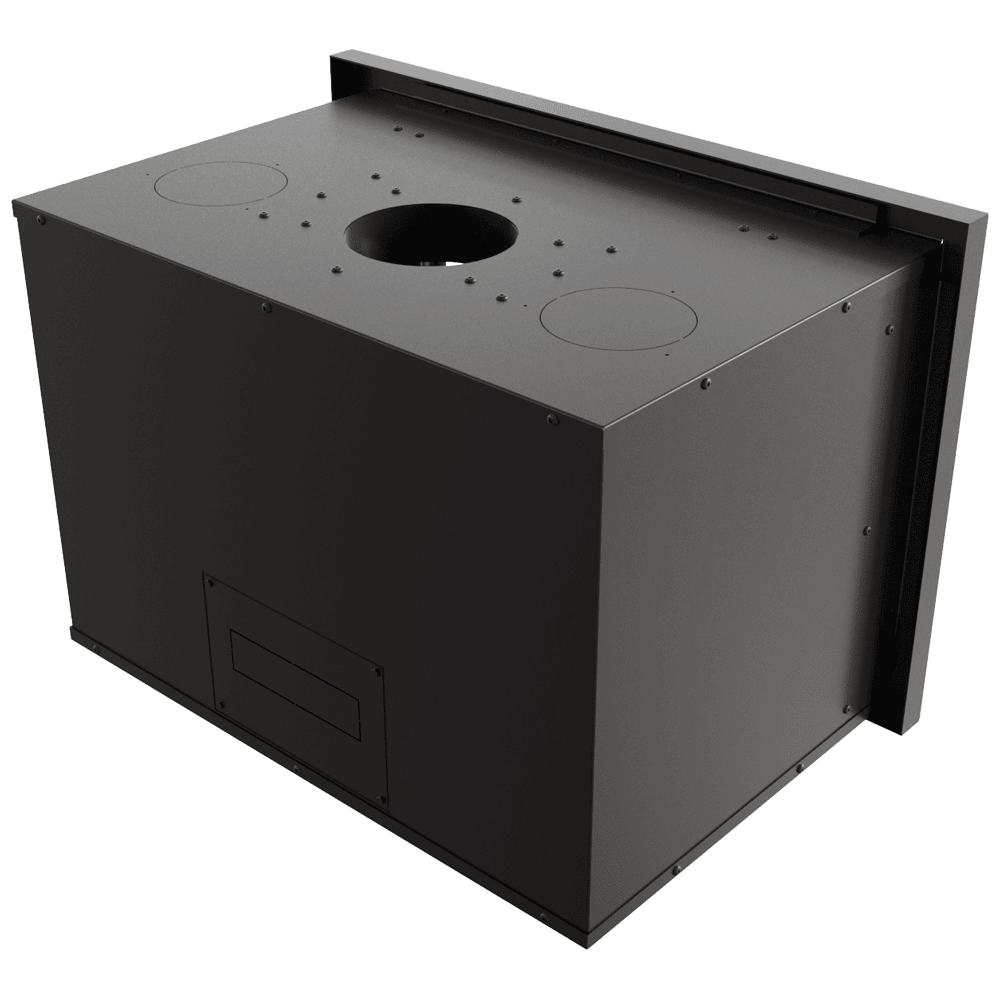

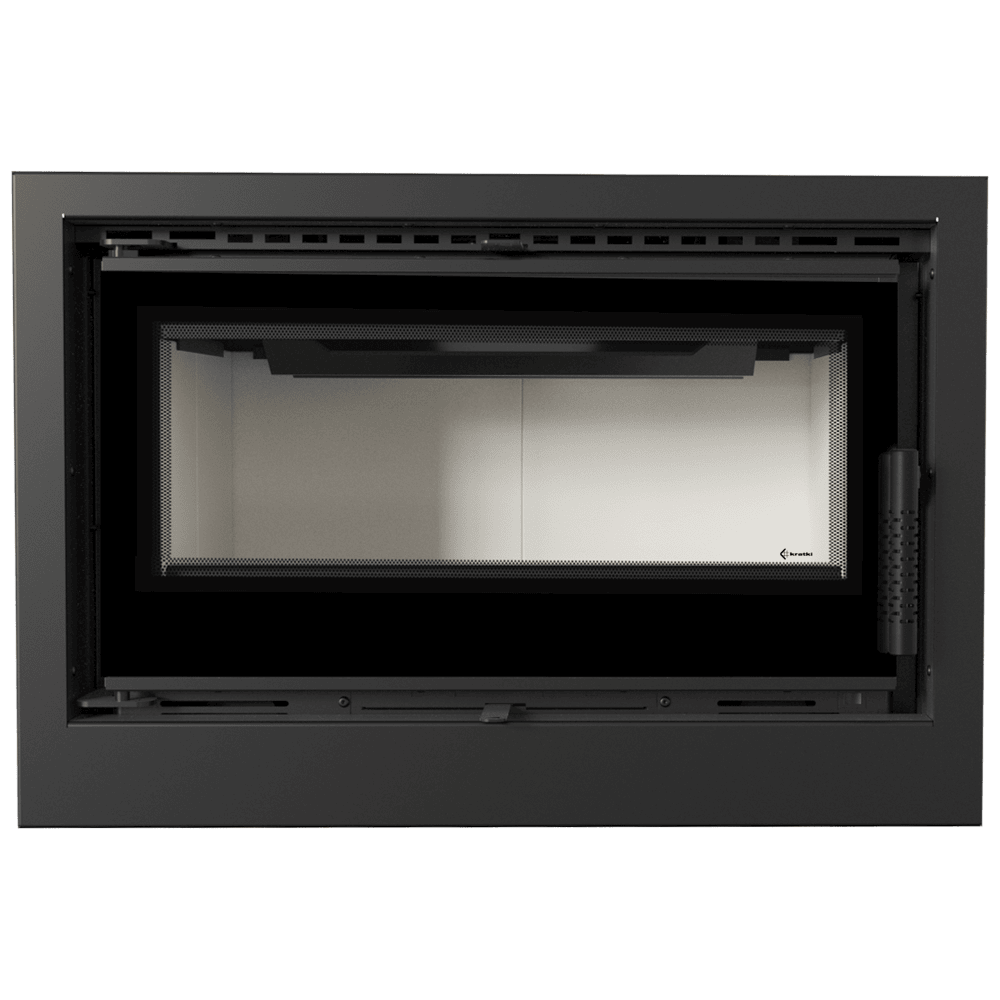

Fireplace cassette KRATKI ARKE 70 8 kW Ø 150 self closing door

Fireplace cassette KRATKI ARKE 70 8 kW Ø 150 self closing door

€1.002 EUR
€1.002 EUR
Sale Sold out
Tax included.

Overview

ARKE cassette is a closed fireplace type, which is installed in existing open fireplaces.

Its simple and elegant look goes hand in hand with excellent heating parameters.

What is more, it has a clean glass system, which along with a separate container, helps to keep it clean.

At a glance

  • Brand: Kratki
  • Heat output: 8 kW
  • Fuel: Seasoned deciduous wood (humidity ≤20%)
  • Efficiency: 84%
  • Width: 76 cm
  • Height: 52 cm
Technical details

Product information

Brand Kratki
Reference KASETA/ARKE/70/BA1
Availability Out of stock

Performance

Nominal power (kW) 8
Heating power range (kW) 3.5 - 10.0
Thermal Efficiency (%) 84
Seasonal Energy Efficiency (%) 74
Heat output for space heating (kW) 8
Fuel type Seasoned deciduous wood (humidity ≤20%)

Dimensions

Max billet length (cm) 30
Width (cm) 76
Height (cm) 52
Depth (cm) 47
Weight (kg) 110.34

Installation

Flue gas temperature (oC) 164
Minimum required active field of outlet grilles (cm2) ≥700
diameter of the flue gas outlet 160
Flue gas mass flow (g/s) 9.5

Compliance

Energy class A+
Certificates Ecodesign, BImSchV 2
Number of pieces in a package. 2

Technical details

Minimum required active area of inlet grilles (cm2) ≥500
CLOSING Yes
Base material Steel
Door opening Left
EEI 110
CO emission (at 13% O2) ≤ given in % 0.087
CO emission (mg/m3) 1085
Pollen emission (mg/m3) 14
NOx emission (mg/m3) 146
OGC emission (mg/m3) 59
Equipment Ashpan, Combustion chamber lining, Decorative glass
EAN 5903751166146
