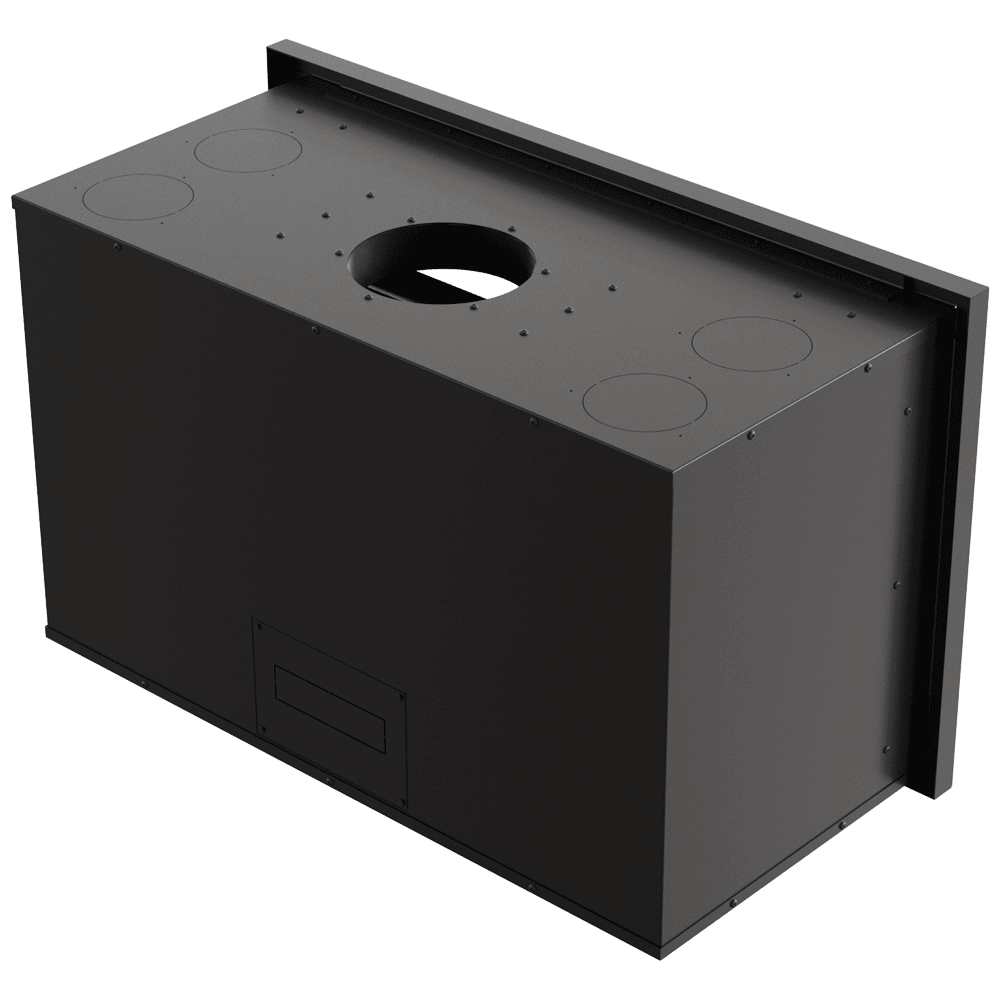

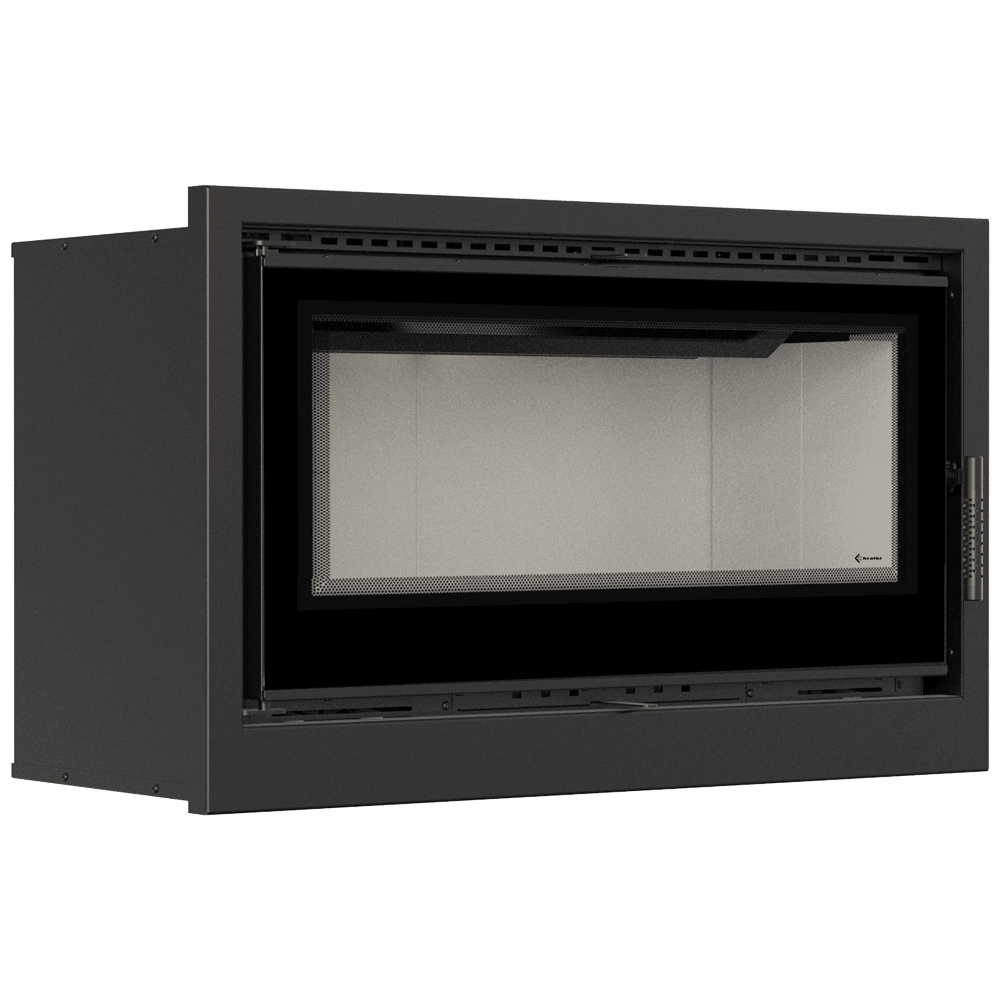

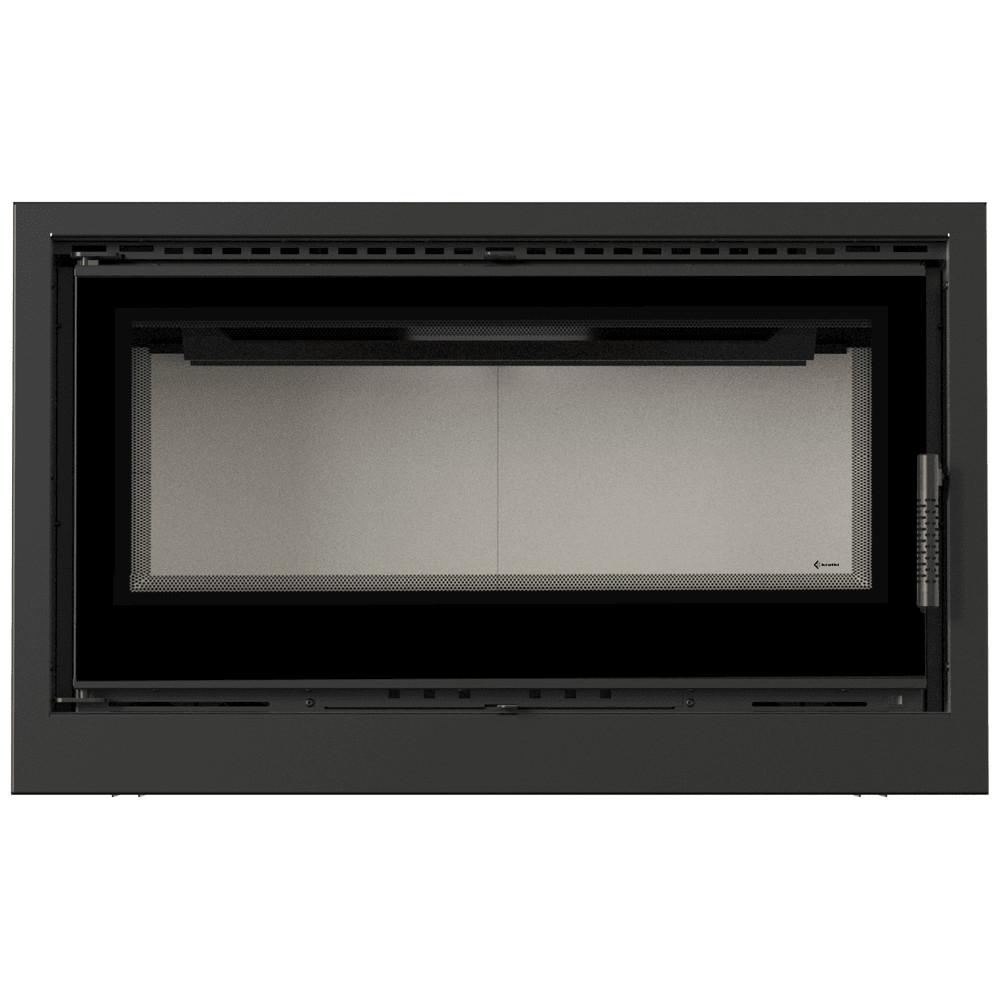

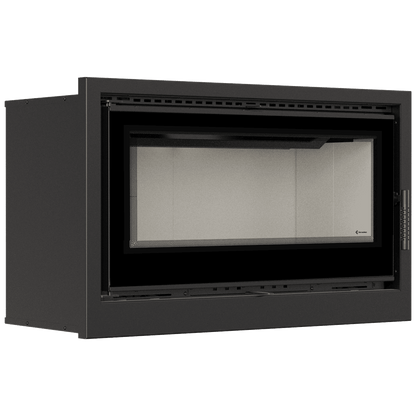

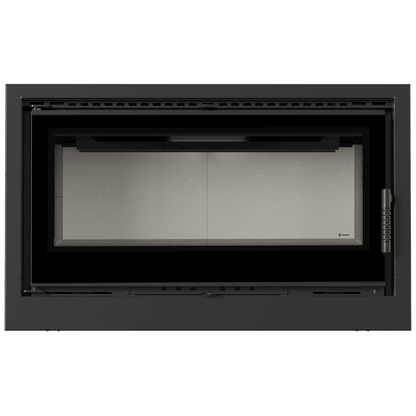

Fireplace cassette KRATKI ARKE 95 14 kW Ø 200 self closing door

Fireplace cassette KRATKI ARKE 95 14 kW Ø 200 self closing door

€1.458 EUR
€1.458 EUR
Sale Sold out
Tax included.

Overview

ARKE cassette is a closed fireplace type, which is installed in existing open fireplaces.

Its simple and elegant look goes hand in hand with excellent heating parameters.

What is more, it has a clean glass system, which along with a separate container, helps to keep it clean.

At a glance

  • Brand: Kratki
  • Heat output: 14 kW
  • Fuel: Seasoned deciduous wood (humidity ≤20%)
  • Efficiency: 83%
  • Width: 102 cm
  • Height: 62 cm
Technical details

Product information

Brand Kratki
Reference KASETA/ARKE/95/BA1
Availability Out of stock

Performance

Nominal power (kW) 14
Heating power range (kW) 6.0 - 16.5
Thermal Efficiency (%) 83
Seasonal Energy Efficiency (%) 73
Heat output for space heating (kW) 14
Fuel type Seasoned deciduous wood (humidity ≤20%)

Dimensions

Max billet length (cm) 50
Width (cm) 102
Height (cm) 62
Depth (cm) 47
Weight (kg) 154.34

Installation

Flue gas temperature (oC) 194
Minimum required active field of outlet grilles (cm2) ≥900
diameter of the flue gas outlet 200
Flue gas mass flow (g/s) 13.8

Compliance

Energy class A+
Certificates Ecodesign, BImSchV 2
Number of pieces in a package. 1

Technical details

Minimum required active area of inlet grilles (cm2) ≥700
CLOSING Yes
Base material Steel
Door opening Left
EEI 109
CO emission (at 13% O2) ≤ given in % 0.092
CO emission (mg/m3) 1157
Pollen emission (mg/m3) 37
NOx emission (mg/m3) 150
OGC emission (mg/m3) 67
Equipment Ashpan, Combustion chamber lining, Decorative glass
EAN 5903751166177
