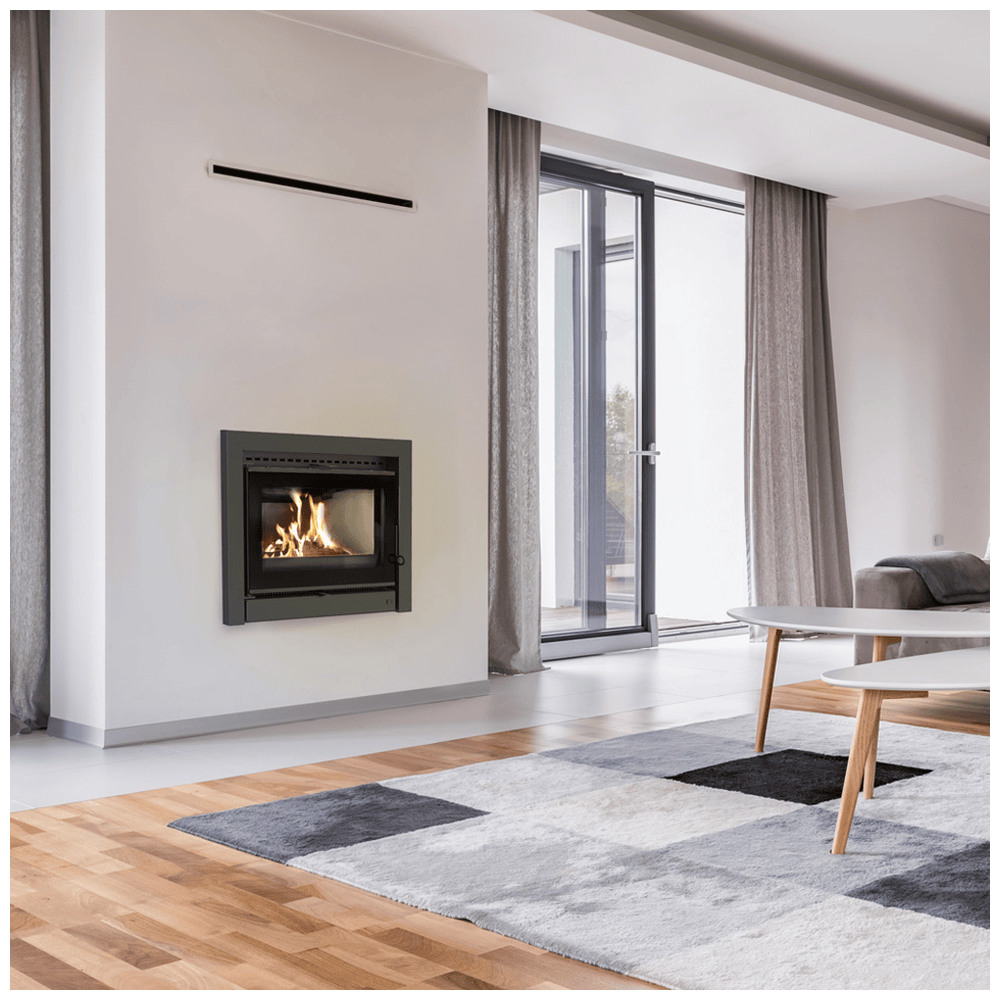

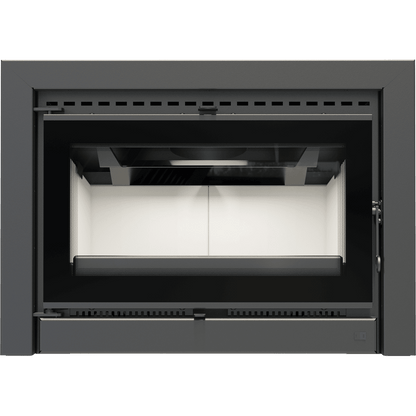

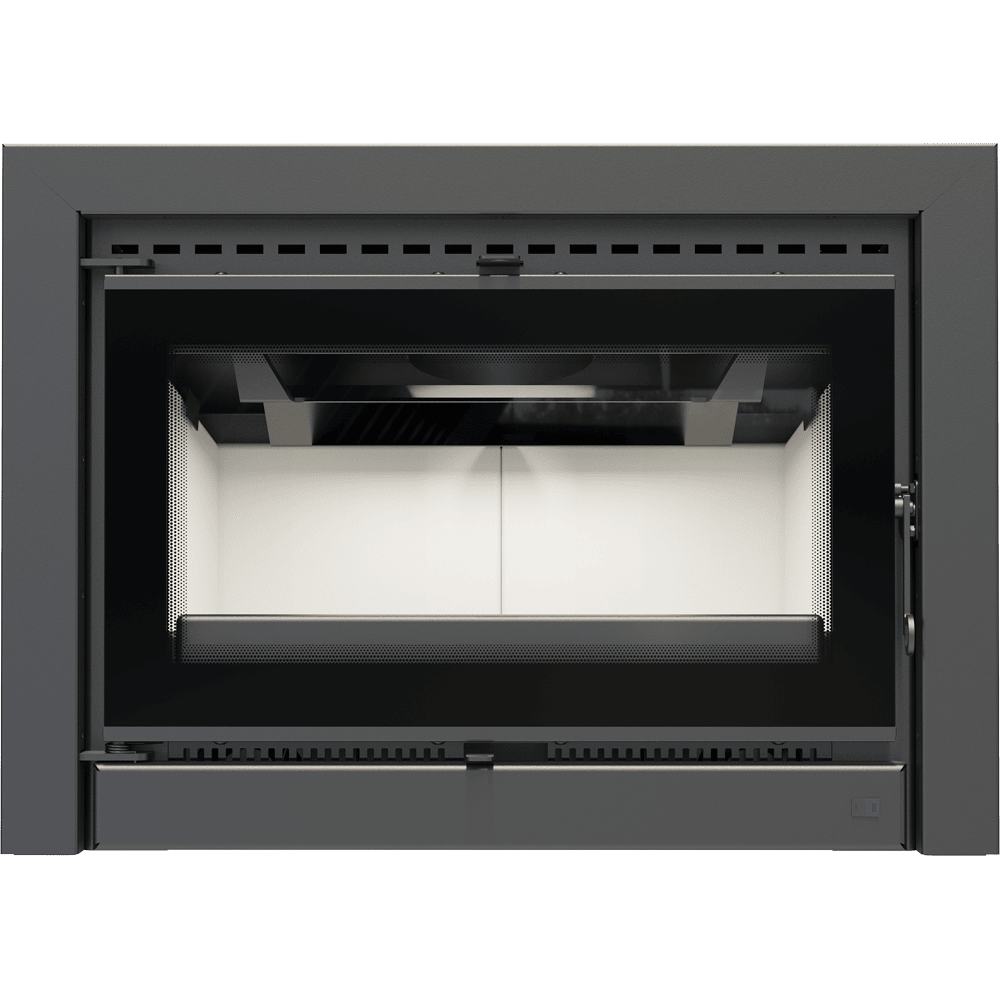

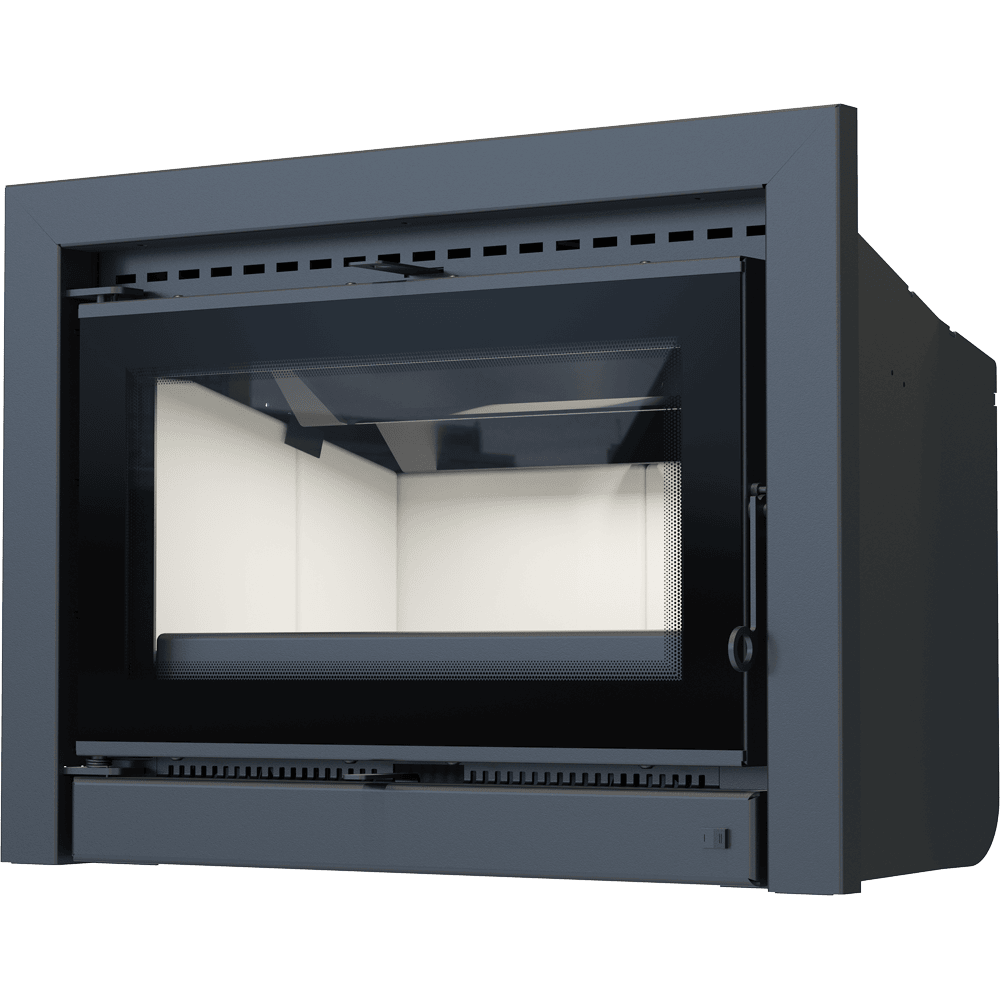

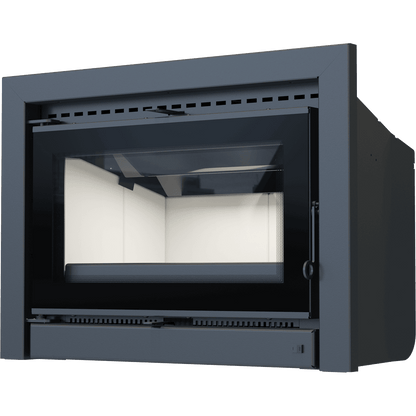

Fireplace cassette KRATKI KDZ K 6 kW Ø 160
Fireplace cassette KRATKI KDZ K 6 kW Ø 160
Regular price
€1.111 EUR
Regular price
Sale price
€1.111 EUR
Unit price
/
per
Tax included.
Overview
Modern KDZ K fireplace cassette insert is compact heating equipment.
It can be fitted both into existing open fireplaces and in a new mantel.
Thanks to the applied solutions, such as turbines (forced convection), the cassette insert enables very effective use of heat from combustion of wood, making the equipment a very economical source of heat.
At a glance
- Brand: Kratki
- Heat output: 6 kW
- Fuel: Seasoned deciduous wood (humidity ≤20%)
- Efficiency: 78%
- Width: 73 cm
- Height: 52 cm
Technical details
Product information
| Brand | Kratki |
|---|---|
| Reference | KASETA/KDZ/K |
| Availability | Out of stock |
Performance
| Nominal power (kW) | 6 |
|---|---|
| Heating power range (kW) | 3.0 - 8.0 |
| Thermal Efficiency (%) | 78 |
| Seasonal Energy Efficiency (%) | 68 |
| Heat output for space heating (kW) | 6 |
| Fuel type | Seasoned deciduous wood (humidity ≤20%) |
Dimensions
| Max billet length (cm) | 30 |
|---|---|
| Width (cm) | 73 |
| Height (cm) | 52 |
| Depth (cm) | 42.6 |
| Weight (kg) | 110 |
Installation
| Flue gas temperature (oC) | 260 |
|---|---|
| Minimum required active field of outlet grilles (cm2) | ≥700 |
| diameter of the flue gas outlet | 160 |
| Flue gas mass flow (g/s) | 6.6 |
Compliance
| Energy class | A |
|---|---|
| Certificates | Ecodesign, BImSchV 2 |
Technical details
| Minimum required active area of inlet grilles (cm2) | ≥500 |
|---|---|
| CLOSING | No |
| Base material | Steel |
| Door opening | Left |
| EEI | 103.1 |
| CO emission (at 13% O2) ≤ given in % | 0.099 |
| CO emission (mg/m3) | 1234 |
| Pollen emission (mg/m3) | 23 |
| NOx emission (mg/m3) | 49 |
| OGC emission (mg/m3) | 74 |
| Equipment | Ashpan, Combustion chamber lining, Decorative glass |
| EAN | 5901350016534 |
