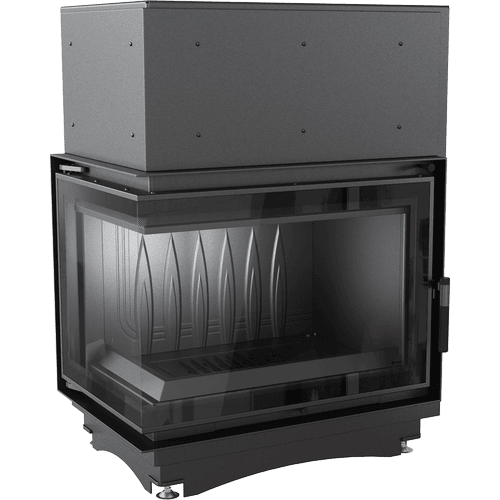

Fireplace cast iron KRATKI ZUZIA 15 kW Ø 200

The ZUZIA ECO series are cast iron inserts with a spacious combustion chamber, which are additionally equipped with densely spaced radiators. Thanks to this solution, the surface of heat transfer to the room is much bigger. This increases the mass of the device itself. The insert has a system of post-combustion of fumes that has not been burnt before, which, along with other technical solutions, has a very good combustion efficiency, which makes the insert meet the strict requirements of the Eco-design.



SAFETY AT THE HIGHEST LEVEL

Cast iron front of the insert is equipped with heat-resistant ceramics with a temperature of up to 660°C. The glass is certified for quality and safety.



CONVENIENT USE

The device is additionally equipped with a clean glass system - thanks to the so-called air curtain. The air stream is distributed evenly, sweeps the glass and minimizes the deposition of soot on it. This allows you to maintain a attractive and clean window for a long time.

Keeping the insert clean is easier with a fitted grate and a container where the ash is collected. In addition, the insert has a removable fence, which prevents the wood from falling out of the hearth and makes cleaning of the fireplace easier.



MAXIMUM ENERGY USE

Burning of fuel particles is accomplished due to the equipped deflector which extends the exhaust path. This process also increases the efficiency of combustion and guarantees a better use of energy and at the same time minimizes the emission of harmful substances into the atmosphere.

The device has a triple combustion chamber venting system, therefore the wood burning process in the insert is ecological and most importantly economical.

The supply of primary air to the insert is performed from the outside due to the built-in air inlet (in size of 125 mm). The air intake is located in the bottom part of the insert.

Secondary air is supplied by the holes in the rear wall of the furnace, which creates an afterburning system. The system is responsible for the burning of the gases and the reduction of harmful substances emissions to the environment. It improves the efficiency of the fireplace, what have a direct influence on very low CO emission.

The device is equipped with a clean glass system - thanks to the so-called air curtain airflow is spread evenly, the glass is sweeped and soot settling is reduced to minimum.This allows you to maintain an effective and clean look of the glass for a long time.



ECOLOGICAL COMBUSTION

Due to the construction of the insert and the triple combustion chamber ventilation system, the cartridge meets the Ecodesign requirements.



COMFORTABLE USE

Special profiled bottom plate of TERMOTEC is used in this insert. Thank to that the chamber of the fireplace is bigger and larger amount of wood can be put inside. Additionally shallow combustion chamber was used, this results on low demand for heating power. Thanks to this the fireplace perfectly suits to small living spaces.

Movable grate and ash drawer enable to keep the insert clean.

Reduced soot deposition through a system of clean glass system (air curtain). Air curtain separates the glass from the chamber thanks of that the glass doesn’t become dirty and emit more heat to the room.

Insert can be easily elevate thanks to the regulated the legs.

The model is equipped with a movable exhaust outlet and thanks to that there is no need to purchase additional knees for installation. It is possible due to easy adjustment of the angle of connection to the chimney system.



MODERN DESIGN

The insert with modern panoramic shape with shallow combustion chamber, thus ideally suited to the living rooms with small area and low demand for heating power. Ideal for energy-efficient and passive homes. Advanced solutions ensure energy saving and make using and cleaning of the fireplace very easy.

The insert has singular decorative glass thanks to that it looks elegant and modern. Such solution visually enlarges the front of the insert and emphasizes the view of the fire.

The door of the insert has comfortable handle.
