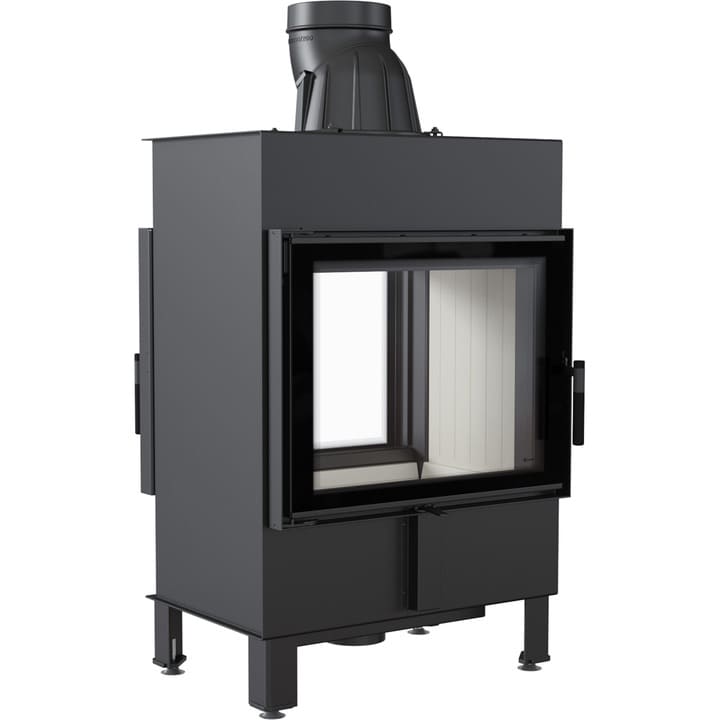

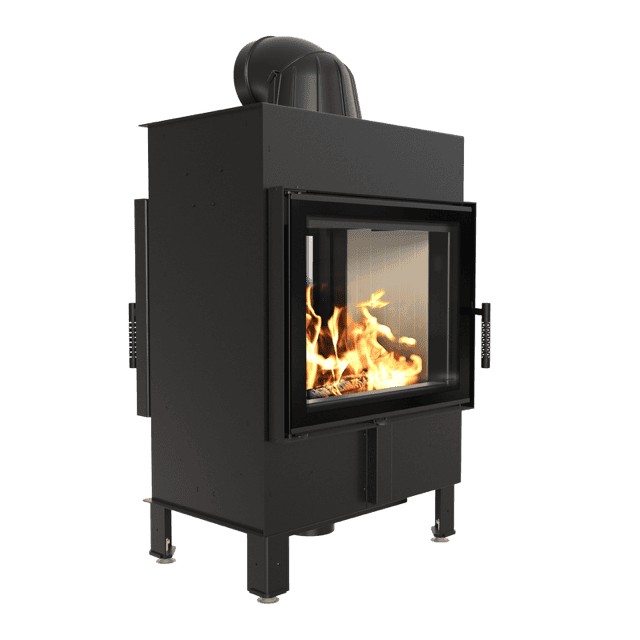

Steel fireplace KRATKI LUCY TUNNEL 12 kW Ø 200 self closing door
Steel fireplace KRATKI LUCY TUNNEL 12 kW Ø 200 self closing door
Regular price
€1.983 EUR
Regular price
Sale price
€1.983 EUR
Unit price
/
per
Tax included.
Overview
MAXIMUM ENERGY USE More efficient combustion and longer temperature retention thanks to the TERMOTEC combustion chamber lining, a heat-accumulating material that raises the temperature in the combustion chamber.
Fuel particles are burned thanks to two deflectors that extend the exhaust gas path.
This process also increases combustion efficiency and guarantees better energy utilization, thus minimizing harmful emissions into the atmosphere.
At a glance
- Brand: Kratki
- Heat output: 12 kW
- Fuel: Seasoned deciduous wood (humidity ≤20%)
- Efficiency: 80%
- Width: 65.4 cm
- Height: 128.7 cm
Technical details
Product information
| Brand | Kratki |
|---|---|
| Reference | LUCY/12/T/BA1 |
| Availability | Out of stock |
Performance
| Nominal power (kW) | 12 |
|---|---|
| Heating power range (kW) | 5.0 - 15.0 |
| Thermal Efficiency (%) | 80 |
| Heat output for space heating (kW) | 12 |
| Fuel type | Seasoned deciduous wood (humidity ≤20%) |
Dimensions
| Max billet length (cm) | 35 |
|---|---|
| Width (cm) | 65.4 |
| Height (cm) | 128.7 |
| Depth (cm) | 42 |
| Weight (kg) | 165.34 |
Installation
| Flue gas temperature (oC) | 270 |
|---|---|
| Minimum required active field of outlet grilles (cm2) | ≥900 |
| diameter of the flue gas outlet | 200 |
Compliance
| Energy class | A |
|---|---|
| Certificates | KRATKI PRO, Ecodesign, Designed for recuperation, BImSchV 2 |
| Number of pieces in a package. | 1 |
Technical details
| Version | Tunnel |
|---|---|
| Minimum required active area of inlet grilles (cm2) | ≥700 |
| Color | Black |
| CLOSING | Yes |
| Base material | Steel |
| Door opening | Left |
| EEI | 105.4 |
| CO emission (at 13% O2) ≤ given in % | 0.1 |
| Pollen emission (mg/m3) | 15 |
| Equipment | Air intake - built in , Ashpan, Combustion chamber lining, Decorative glass |
| FRONT | Steel front with painted glass |
| EAN | 5903751149842 |
