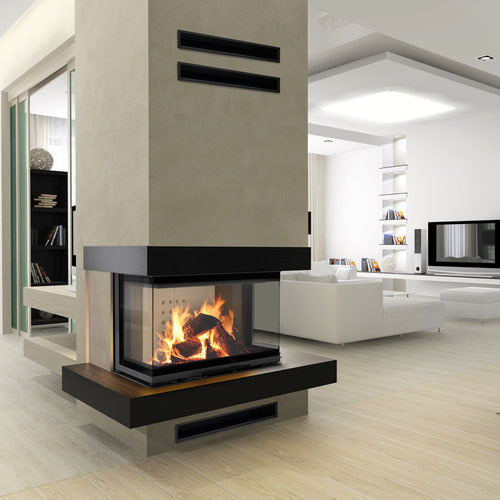

Steel fireplace KRATKI NBC 680/280 7 kW Ø 160 Lift-up

Steel fireplace KRATKI NBC 680/280 7 kW Ø 160 Lift-up

€4.630 EUR
€4.630 EUR
Sale Sold out
Tax included.

Overview

MAXIMUM ENERGY USE The body and the front of the insert are resistant to high temperatures thanks to the high-quality steel used in production.

Efficient burning process & maintaining of temperature to keep the warmth for longer thanks to the lining of the combustion chamber with TERMOTEC - heat accumulating material which raises the temperature in the combustion chamber.

Air supplied from outside only thanks to a built-in external air inlet of 125mm.

At a glance

  • Heat output: 7 kW
  • Fuel: Seasoned deciduous wood (humidity ≤20%)
  • Efficiency: 83%
  • Width: 75.2 cm
  • Height: 124.5 cm
  • Depth: 50.2 cm
Technical details

Product information

Reference NBC\/680\/280\/KONF
Availability In stock

Performance

Nominal power (kW) 7
Heating power range (kW) 3.0 - 9.0
Thermal Efficiency (%) 83
Seasonal Energy Efficiency (%) 73
Heat output for space heating (kW) 7
Fuel type Seasoned deciduous wood (humidity ≤20%)

Dimensions

Max billet length (cm) 40
Width (cm) 75.2
Height (cm) 124.5
Depth (cm) 50.2

Installation

Flue gas temperature (oC) 199
Minimum required active field of outlet grilles (cm2) ≥700
diameter of the flue gas outlet 160
Flue gas mass flow (g/s) 7.5

Compliance

Energy class A+
Certificates KRATKI PRO, Ecodesign, Designed for recuperation, BImSchV 2
Number of pieces in a package. 1

Technical details

Version Three-sided lift-up
Minimum required active area of inlet grilles (cm2) ≥500
Color Black
CLOSING No
Base material Steel
Door opening Up
EEI 110.4
CO emission (at 13% O2) ≤ given in % 0.092
CO emission (mg/m3) 1157
Pollen emission (mg/m3) 29
NOx emission (mg/m3) 109
OGC emission (mg/m3) 50
Equipment Air intake - built in , Ashpan, Combustion chamber lining, Decorative glass
FRONT Steel front with painted glass
EAN 5901350034385
