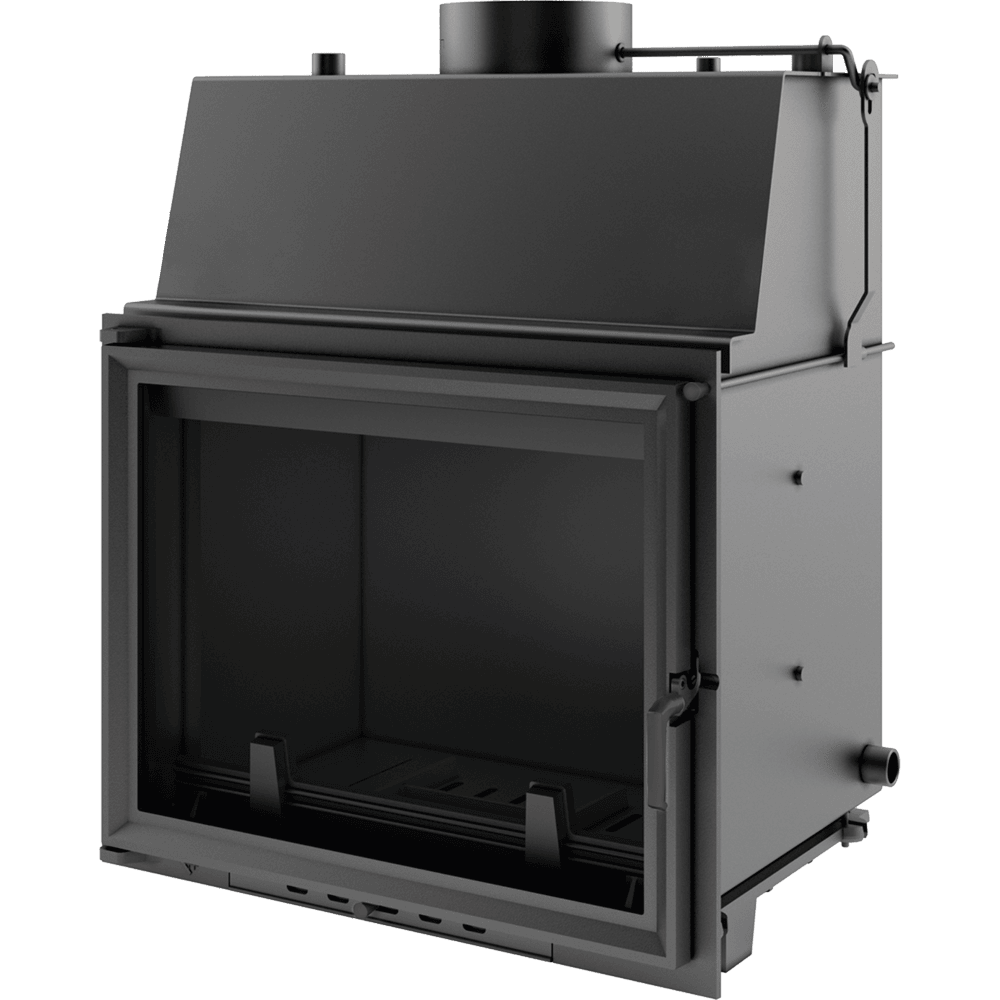

Water heating fireplace KRATKI AMELIA 15 kW Ø 220

Water heating fireplace KRATKI AMELIA 15 kW Ø 220

€2.082 EUR
€2.082 EUR
Sale Sold out
Tax included.

Overview

MAXIMUM USE OF ENERGY The body and the front of the insert are resistant to high temperatures thanks to the high quality steel used in production.

Built in smoke tubes and high flue, which increase the heat exchange surface.

Increased heat exchange surface due to built-in smoke tubes and high flue.

At a glance

  • Brand: Kratki
  • Heat output: 15 kW
  • Fuel: Seasoned deciduous wood (humidity ≤20%)
  • Efficiency: 85%
  • Width: 75 cm
  • Height: 95.9 cm
Technical details

Product information

Brand Kratki
Reference AMELIA/PW/30/W
Availability Out of stock

Performance

Nominal power (kW) 15
Heating power range (kW) 7 - 18
Thermal Efficiency (%) 85
Water capacity (l) 60
Average power from water (kW) 8
Heat output for space heating (kW) 7
Fuel type Seasoned deciduous wood (humidity ≤20%)

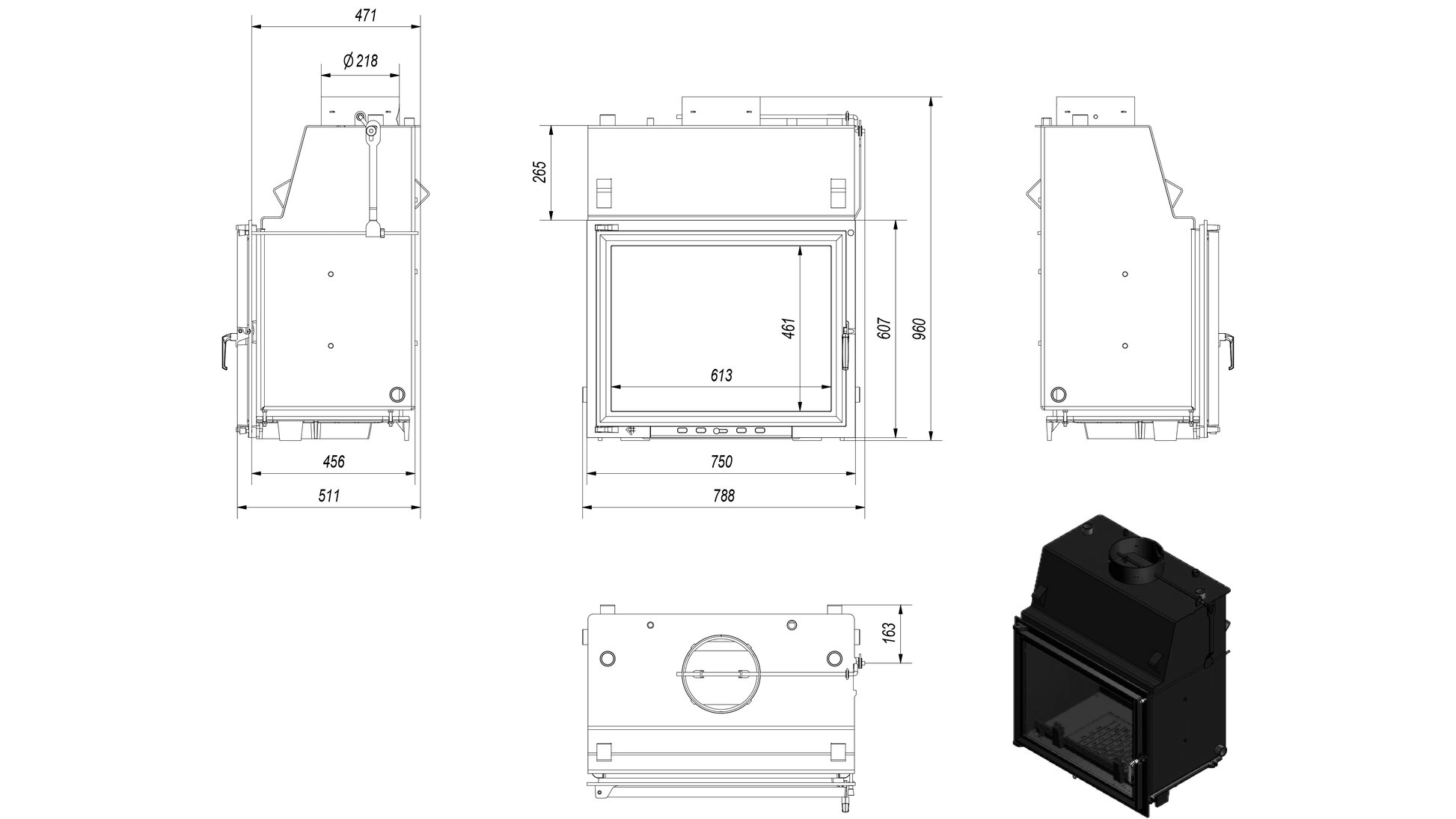

Dimensions

Max billet length (cm) 50
Width (cm) 75
Height (cm) 95.9
Depth (cm) 51.1
Weight (kg) 201

Installation

Flue gas temperature (oC) 200
Minimum required active field of outlet grilles (cm2) 420
diameter of the flue gas outlet 220

Compliance

Energy class A
Certificates Ecodesign, BImSchV 2

Technical details

Max working pressure (bar) 2
Minimum required active area of inlet grilles (cm2) 210
Door opening Left
Base material Steel, Cast iron
CLOSING No
EEI 98.88
Pollen emission (mg/m3) 100.5
CO emission (at 13% O2) ≤ given in % 0.09
EAN 5901350028636
Equipment Ashpan
