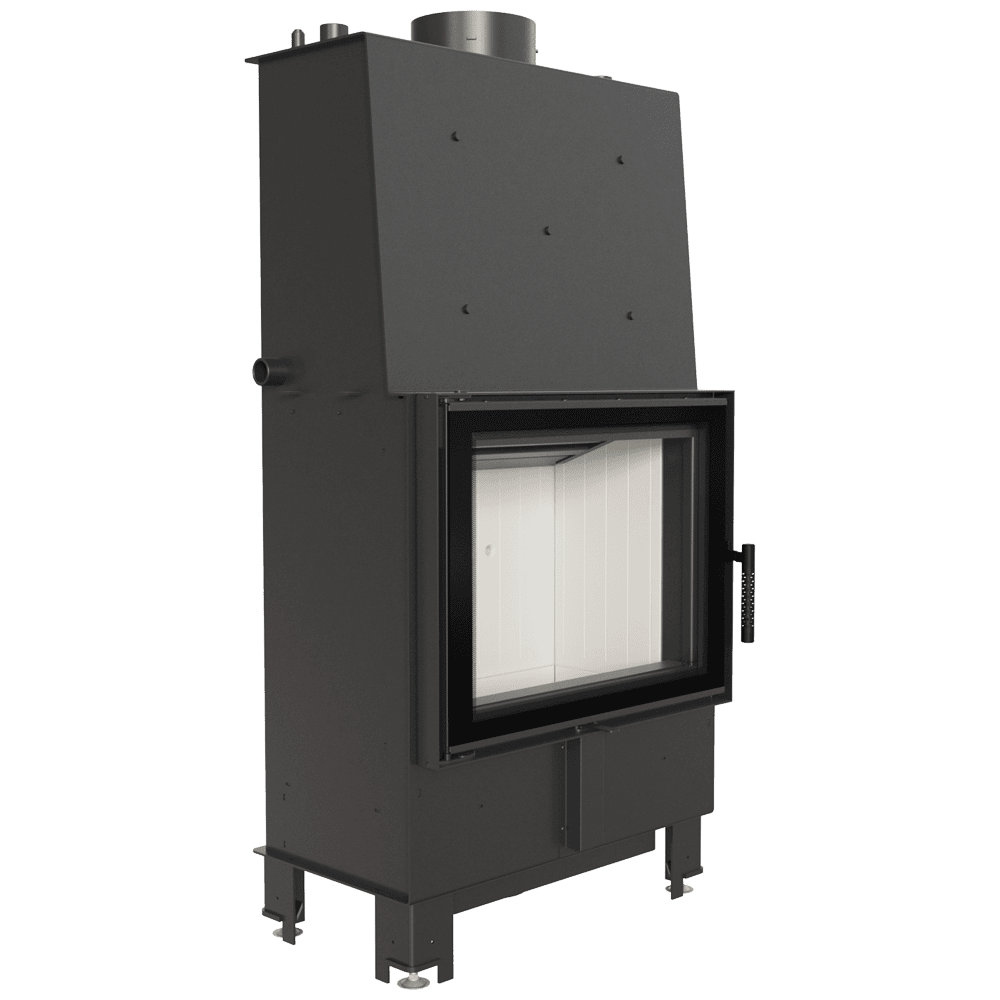

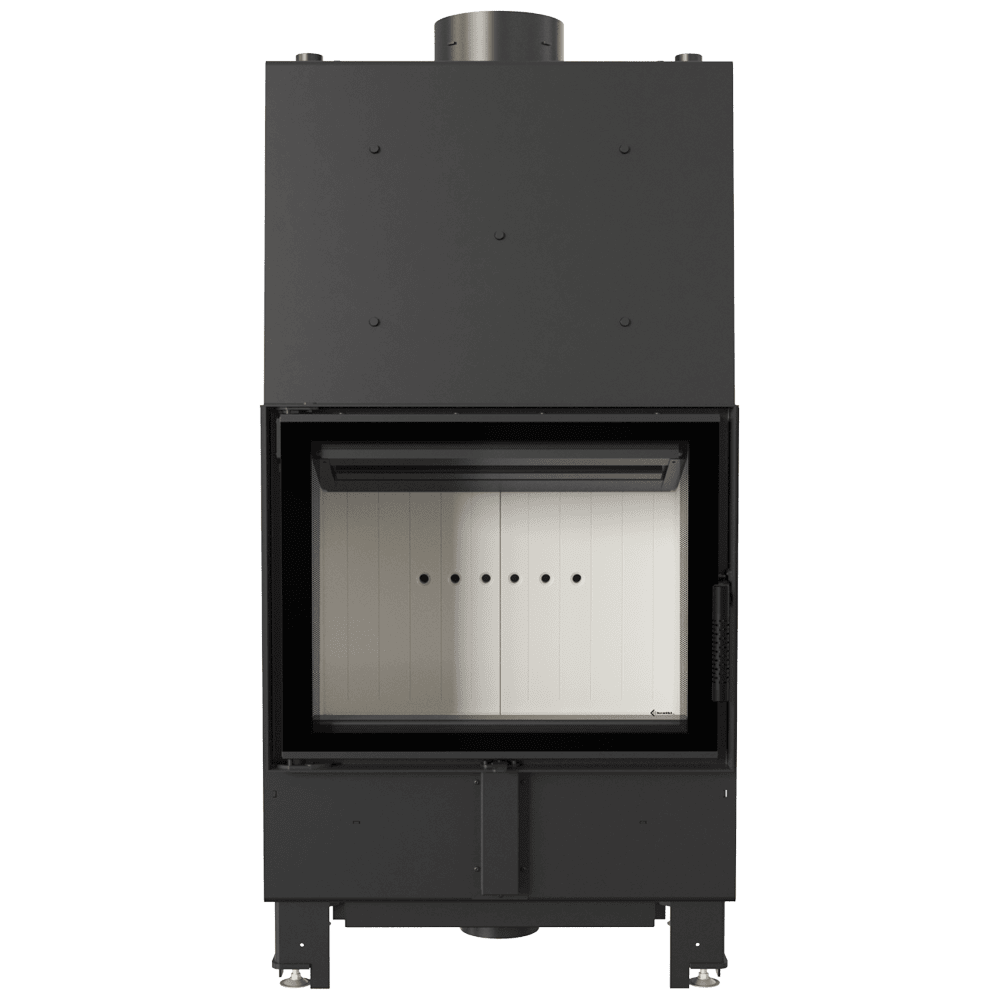

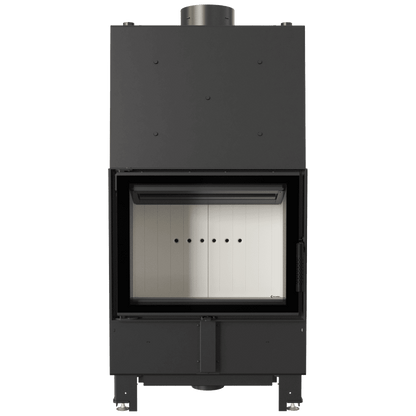

Water heating fireplace KRATKI LUCY 12 kW Ø 200

Water heating fireplace KRATKI LUCY 12 kW Ø 200

€1.805 EUR
€1.805 EUR
Sale Sold out
Tax included.

Overview

MAXIMUM ENERGY USE The body and front of the insert are resistant to high temperatures thanks to the material used – high-quality steel.

A special water jacket assembly allows for the extraction of a large amount of heat from exhaust gases and transferring it to the heating system, thus achieving high energy efficiency of the insert.

Built-in coil.

At a glance

  • Brand: Kratki
  • Heat output: 12 kW
  • Fuel: Seasoned deciduous wood (humidity ≤20%)
  • Efficiency: 82%
  • Width: 67.6 cm
  • Height: 138.4 cm
Technical details

Product information

Brand Kratki
Reference LUCY/PW/12/W
Availability Out of stock

Performance

Nominal power (kW) 12
Heating power range (kW) 5.0 - 15.0
Thermal Efficiency (%) 82
Water capacity (l) 35
Average power from water (kW) 7
Heat output for space heating (kW) 5
Seasonal Energy Efficiency (%) 72
Fuel type Seasoned deciduous wood (humidity ≤20%)

Dimensions

Max billet length (cm) 50
Width (cm) 67.6
Height (cm) 138.4
Depth (cm) 40.7
Weight (kg) 215

Installation

Flue gas temperature (oC) 204
Minimum required active field of outlet grilles (cm2) 300
diameter of the flue gas outlet 200

Compliance

Energy class A+
Certificates KRATKI PRO, Ecodesign, Designed for recuperation, BImSchV 2

Technical details

Max working pressure (bar) 2
Minimum required active area of inlet grilles (cm2) 150
Door opening Left
Base material Steel
CLOSING No
CO emission (mg/m3) 1173
NOx emission (mg/m3) 127
OGC emission (mg/m3) 48
EEI 108
Pollen emission (mg/m3) 24
CO emission (at 13% O2) ≤ given in % 0.093
EAN 5901350036426
Equipment Air intake - built in , Ashpan, Combustion chamber lining, Decorative glass
