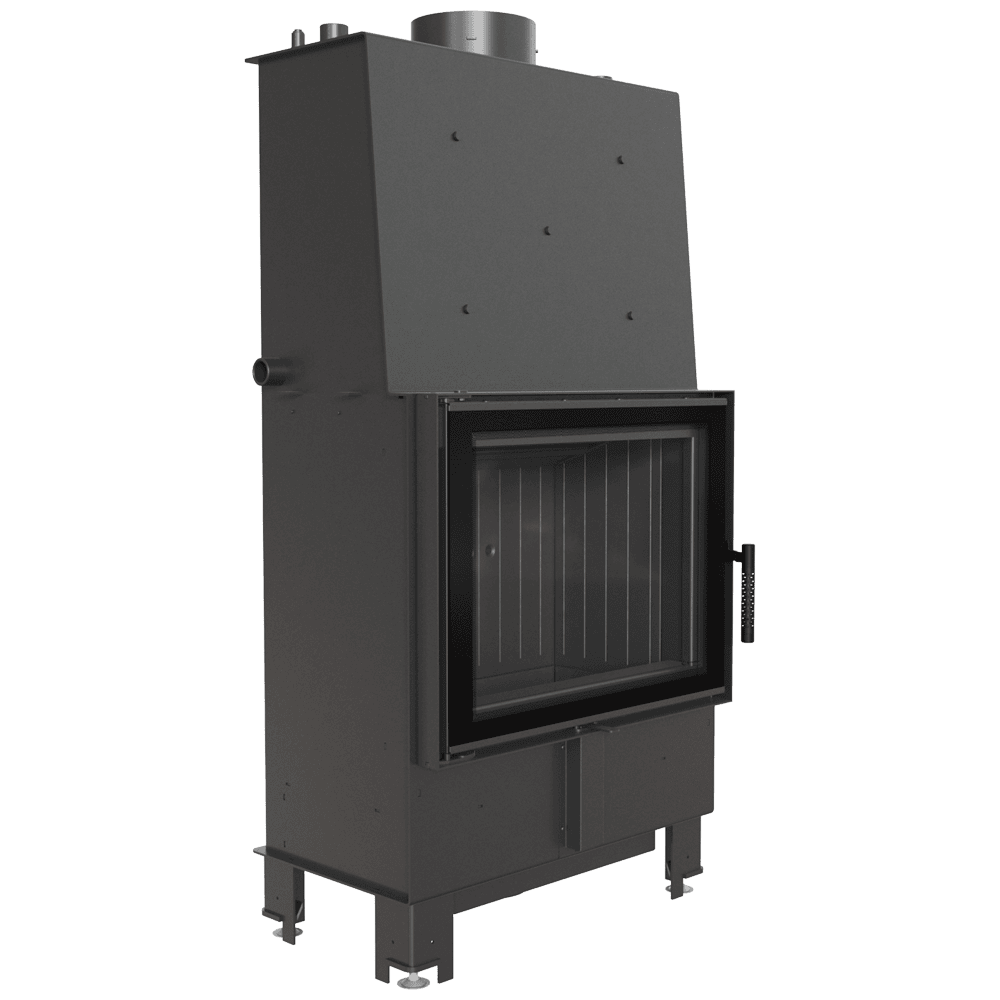

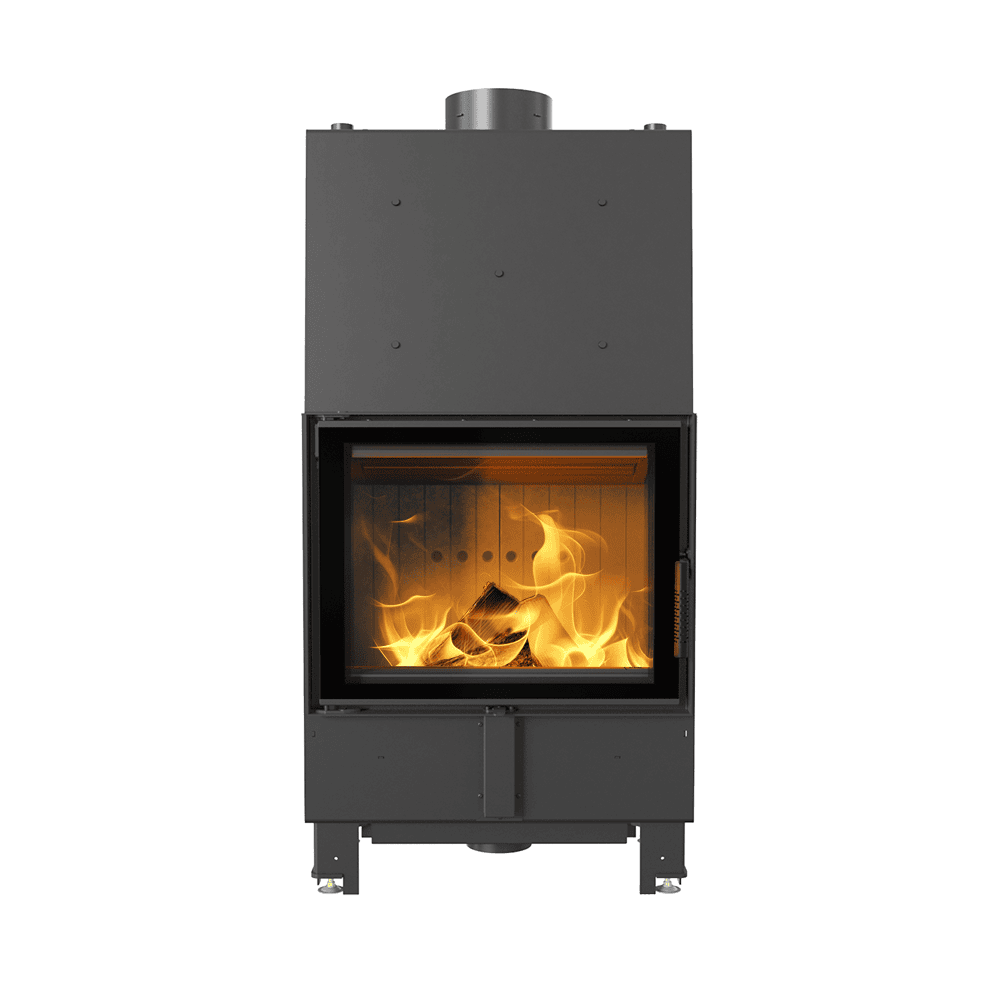

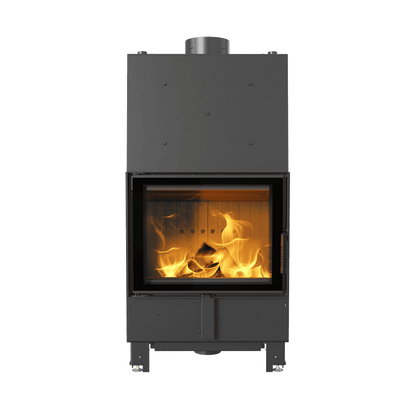

Water heating fireplace KRATKI LUCY 12 kW Ø 200 black thermotec lining

Name: Water heating fireplace KRATKI LUCY 12 kW Ø 200 black thermotec lining
Brand: Kratki
SKU: LUCYPW12WBLACK
Price: 1883.74 EUR
Availability: InStock

€1.884 EUR

Sale Sold out

Tax included.

Overview

MAXIMUM ENERGY USE The body and front of the insert are resistant to high temperatures thanks to the material used - high-quality steel.

A special water jacket assembly allows for the extraction of a large amount of heat from the exhaust gases and transferring it to the heating system, thus achieving high energy efficiency of the insert.

Built-in coil.

At a glance

Brand: Kratki
Heat output: 12 kW
Fuel: Seasoned deciduous wood (humidity ≤20%)
Efficiency: 82%
Width: 67.6 cm
Height: 138.4 cm

Technical details

Product information

Brand	Kratki
Reference	LUCY/PW/12/W/BLACK
Availability	Out of stock

Performance

Nominal power (kW)	12
Heating power range (kW)	5.0 - 15.0
Thermal Efficiency (%)	82
Water capacity (l)	35
Average power from water (kW)	7
Heat output for space heating (kW)	5
Seasonal Energy Efficiency (%)	72
Fuel type	Seasoned deciduous wood (humidity ≤20%)

Dimensions

Max billet length (cm)	50
Width (cm)	67.6
Height (cm)	138.4
Depth (cm)	40.7
Weight (kg)	215

Installation

Flue gas temperature (oC)	204
Minimum required active field of outlet grilles (cm2)	300
diameter of the flue gas outlet	200

Compliance

Energy class	A+
Certificates	KRATKI PRO, Ecodesign, Designed for recuperation, BImSchV 2

Technical details

Max working pressure (bar)	2
Minimum required active area of inlet grilles (cm2)	150
Door opening	Left
Base material	Steel
CLOSING	No
CO emission (mg/m3)	1173
NOx emission (mg/m3)	127
OGC emission (mg/m3)	48
EEI	108
Pollen emission (mg/m3)	24
CO emission (at 13% O2) ≤ given in %	0.093
EAN	5902539503258
Equipment	Combustion chamber lining
