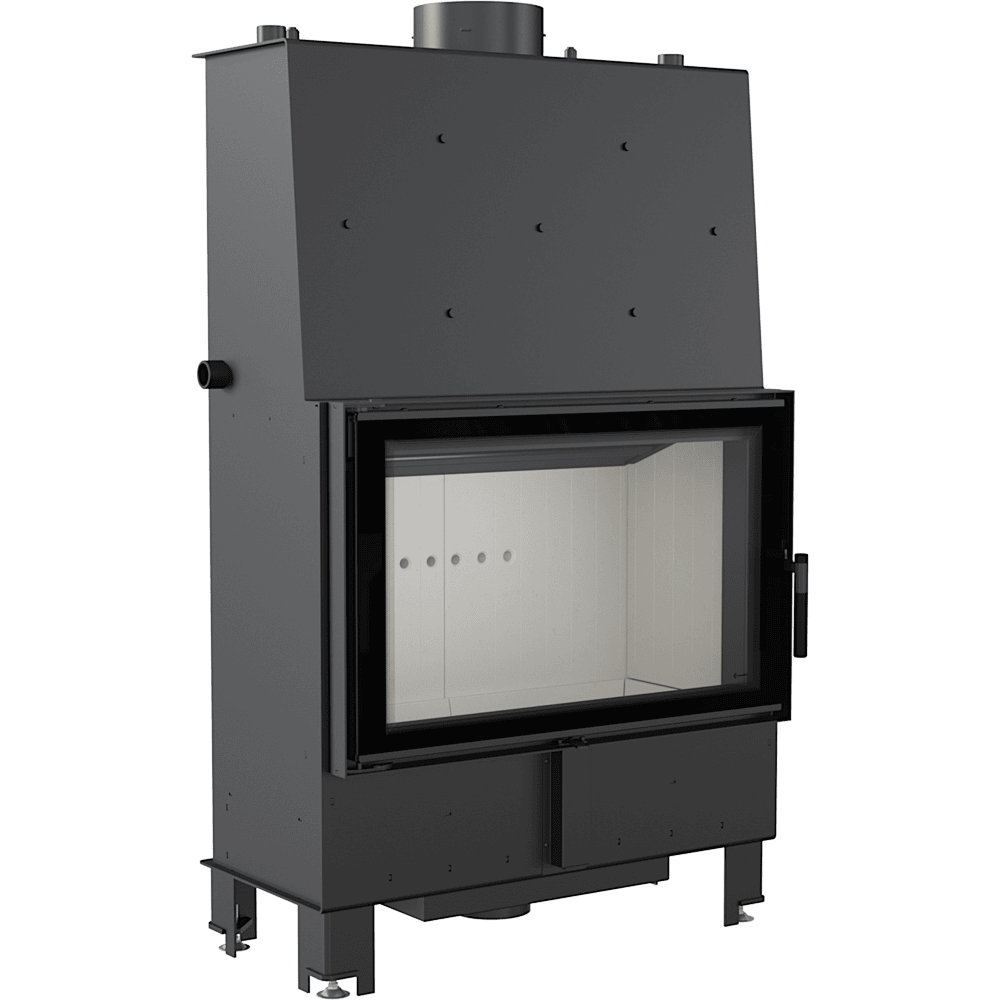

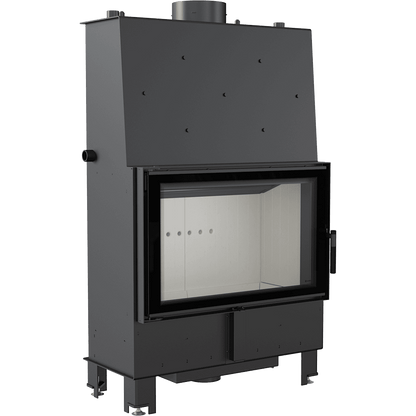

Water heating fireplace KRATKI LUCY 16 kW Ø 200

Water heating fireplace KRATKI LUCY 16 kW Ø 200

€1.983 EUR
€1.983 EUR
Sale Sold out
Tax included.

Overview

MAXIMUM USE OF ENERGY The body and the front of the insert are resistant to high temperatures thanks to the high quality steel used in production.

Special water system which allows that big amount of the heat from fumes is transferred into heating system, thanks to that high energy efficiency is obtained.

Protection against overheating by the built-in coil pipe - connector input / output 1/2”.

At a glance

  • Brand: Kratki
  • Heat output: 16 kW
  • Fuel: Seasoned deciduous wood (humidity ≤20%)
  • Efficiency: 84.4%
  • Width: 85.6 cm
  • Height: 138.4 cm
Technical details

Product information

Brand Kratki
Reference LUCY/PW/16/W
Availability Out of stock

Performance

Nominal power (kW) 16
Heating power range (kW) 7.0 - 19.0
Thermal Efficiency (%) 84.4
Water capacity (l) 39
Average power from water (kW) 10
Heat output for space heating (kW) 6
Seasonal Energy Efficiency (%) 74
Fuel type Seasoned deciduous wood (humidity ≤20%)

Dimensions

Max billet length (cm) 50
Width (cm) 85.6
Height (cm) 138.4
Depth (cm) 40.7
Weight (kg) 257

Installation

Flue gas temperature (oC) 200
Minimum required active field of outlet grilles (cm2) 360
diameter of the flue gas outlet 200

Compliance

Energy class A+
Certificates KRATKI PRO, Ecodesign, Designed for recuperation, BImSchV 2

Technical details

Max working pressure (bar) 2
Minimum required active area of inlet grilles (cm2) 180
Door opening Left
Base material Steel
CLOSING No
CO emission (mg/m3) 1124
NOx emission (mg/m3) 146
OGC emission (mg/m3) 59
EEI 112
Pollen emission (mg/m3) 25
CO emission (at 13% O2) ≤ given in % 0.089
EAN 5901350021576
Equipment Air intake - built in , Ashpan, Combustion chamber lining, Decorative glass
