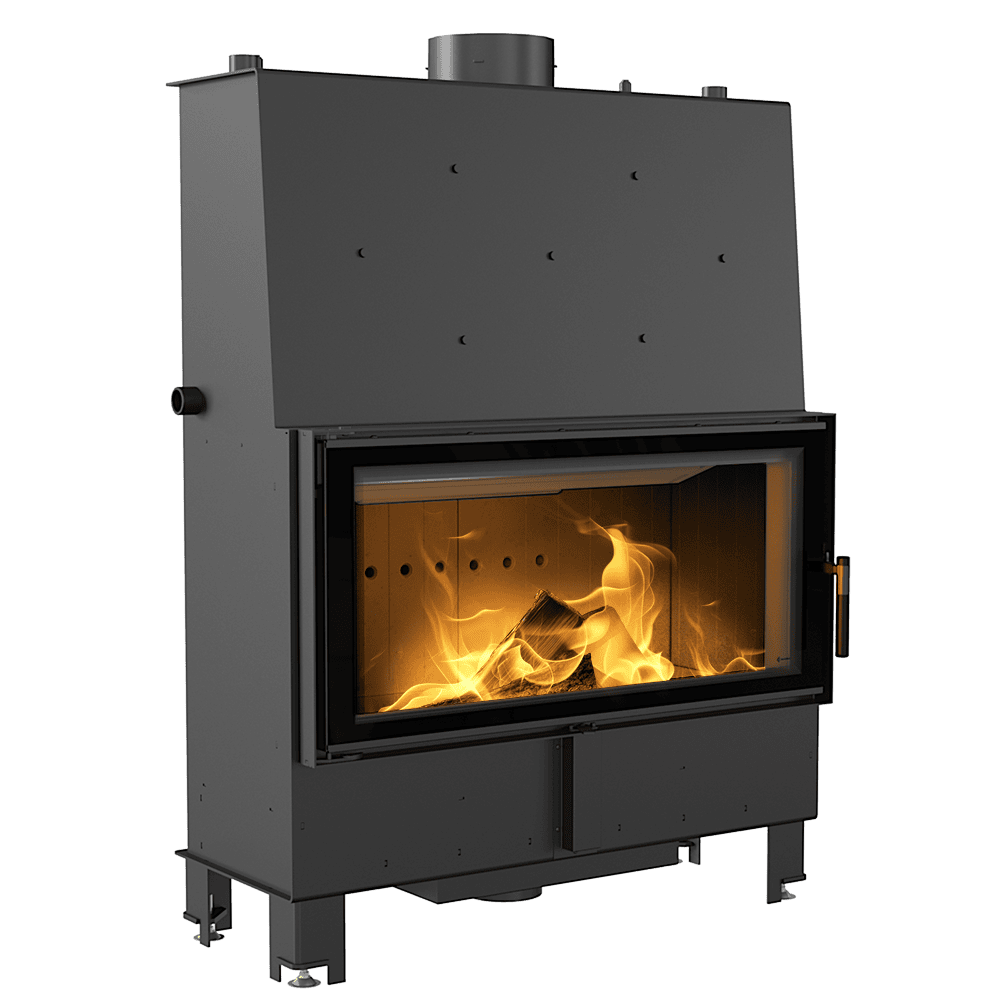

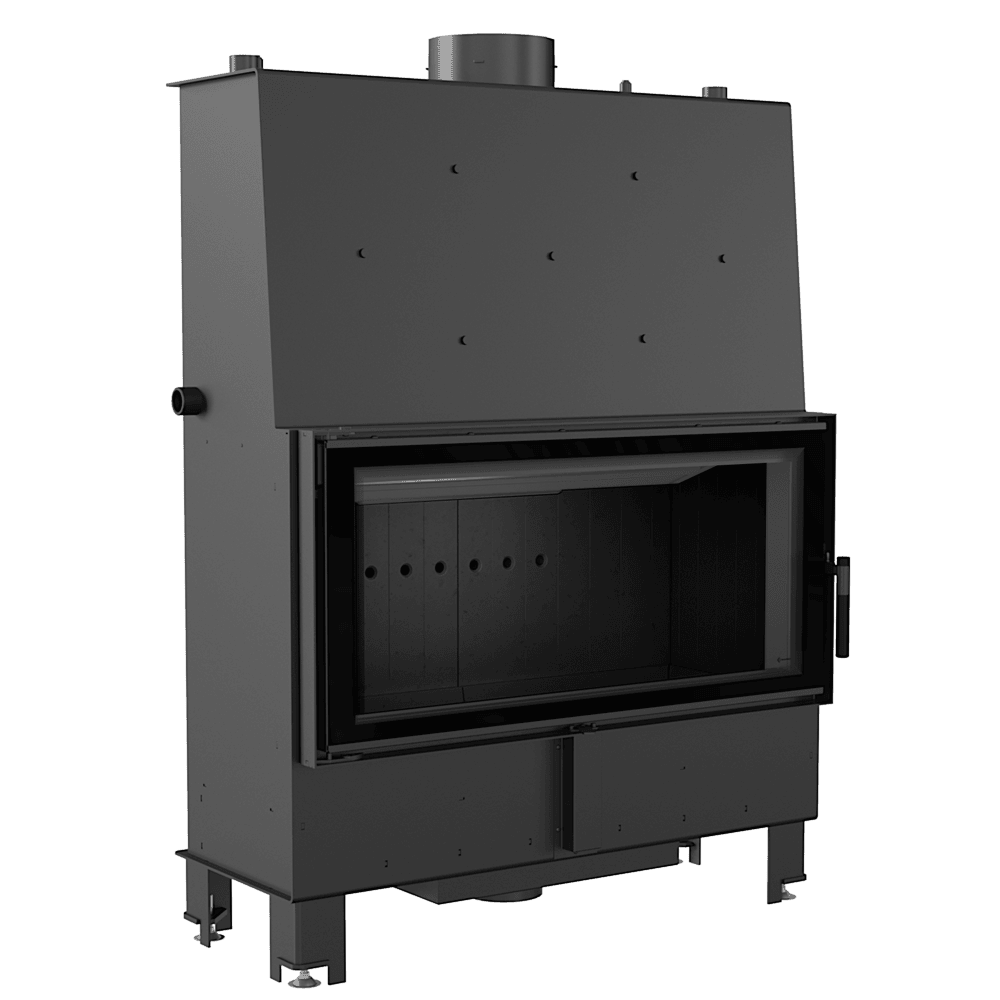

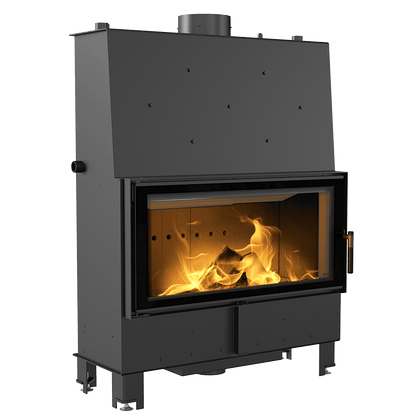

Water heating fireplace KRATKI LUCY 20 kW Ø 200 Black thermotec lining

Water heating fireplace KRATKI LUCY 20 kW Ø 200 Black thermotec lining

€2.241 EUR
€2.241 EUR
Sale Sold out
Tax included.

Overview

MAXIMUM USE OF ENERGY The body and the front of the insert are resistant to high temperatures thanks to the high quality steel used in production.

Special water system which allows that big amount of the heat from fumes is transferred into heating system, thanks to that high energy efficiency is obtained.

Protection against overheating by the built-in coil pipe - connector input / output 1/2”.

At a glance

  • Brand: Kratki
  • Heat output: 20 kW
  • Fuel: Seasoned deciduous wood (humidity ≤20%)
  • Efficiency: 82%
  • Width: 100.1 cm
  • Height: 138.4 cm
Technical details

Product information

Brand Kratki
Reference LUCY/PW/20/W/BLACK
Availability Out of stock

Performance

Nominal power (kW) 20
Heating power range (kW) 9.0 - 24.0
Thermal Efficiency (%) 82
Water capacity (l) 45.5
Average power from water (kW) 13
Heat output for space heating (kW) 7
Seasonal Energy Efficiency (%) 72
Fuel type Seasoned deciduous wood (humidity ≤20%)

Dimensions

Max billet length (cm) 50
Width (cm) 100.1
Height (cm) 138.4
Depth (cm) 40.7
Weight (kg) 293

Installation

Flue gas temperature (oC) 226
Minimum required active field of outlet grilles (cm2) 420
diameter of the flue gas outlet 200

Compliance

Energy class A+
Certificates KRATKI PRO, Ecodesign, Designed for recuperation, BImSchV 2

Technical details

Max working pressure (bar) 2
Minimum required active area of inlet grilles (cm2) 210
Door opening Left
Base material Steel
CLOSING No
CO emission (mg/m3) 1056
NOx emission (mg/m3) 122
OGC emission (mg/m3) 60
EEI 108
Pollen emission (mg/m3) 22
CO emission (at 13% O2) ≤ given in % 0.084
EAN 5902539500684
Equipment Air intake - built in , Ashpan, Combustion chamber lining, Decorative glass
