Water heating fireplace KRATKI MAJA Left 8 kW Ø 180

Water heating fireplace KRATKI MAJA Left 8 kW Ø 180

€1.963 EUR
€1.963 EUR
Sale Sold out
Tax included.

Overview

MAXIMUM USE OF ENERGY The body and the front of the insert are resistant to high temperatures thanks to the high quality steel used in production.

Built in smoke tubes and high flue, which increase the heat exchange surface.

Increased heat exchange surface due to built-in smoke tubes and high flue.

At a glance

  • Brand: Kratki
  • Heat output: 8 kW
  • Fuel: Seasoned deciduous wood (humidity ≤20%)
  • Efficiency: 80%
  • Width: 67.5 cm
  • Height: 80.25 cm
Technical details

Product information

Brand Kratki
Reference MAJA/PW/BL/12/BS/W
Availability Out of stock

Performance

Nominal power (kW) 8
Heating power range (kW) 3.5 - 10
Thermal Efficiency (%) 80
Water capacity (l) 18
Average power from water (kW) 6
Heat output for space heating (kW) 2
Seasonal Energy Efficiency (%) 70
Fuel type Seasoned deciduous wood (humidity ≤20%)

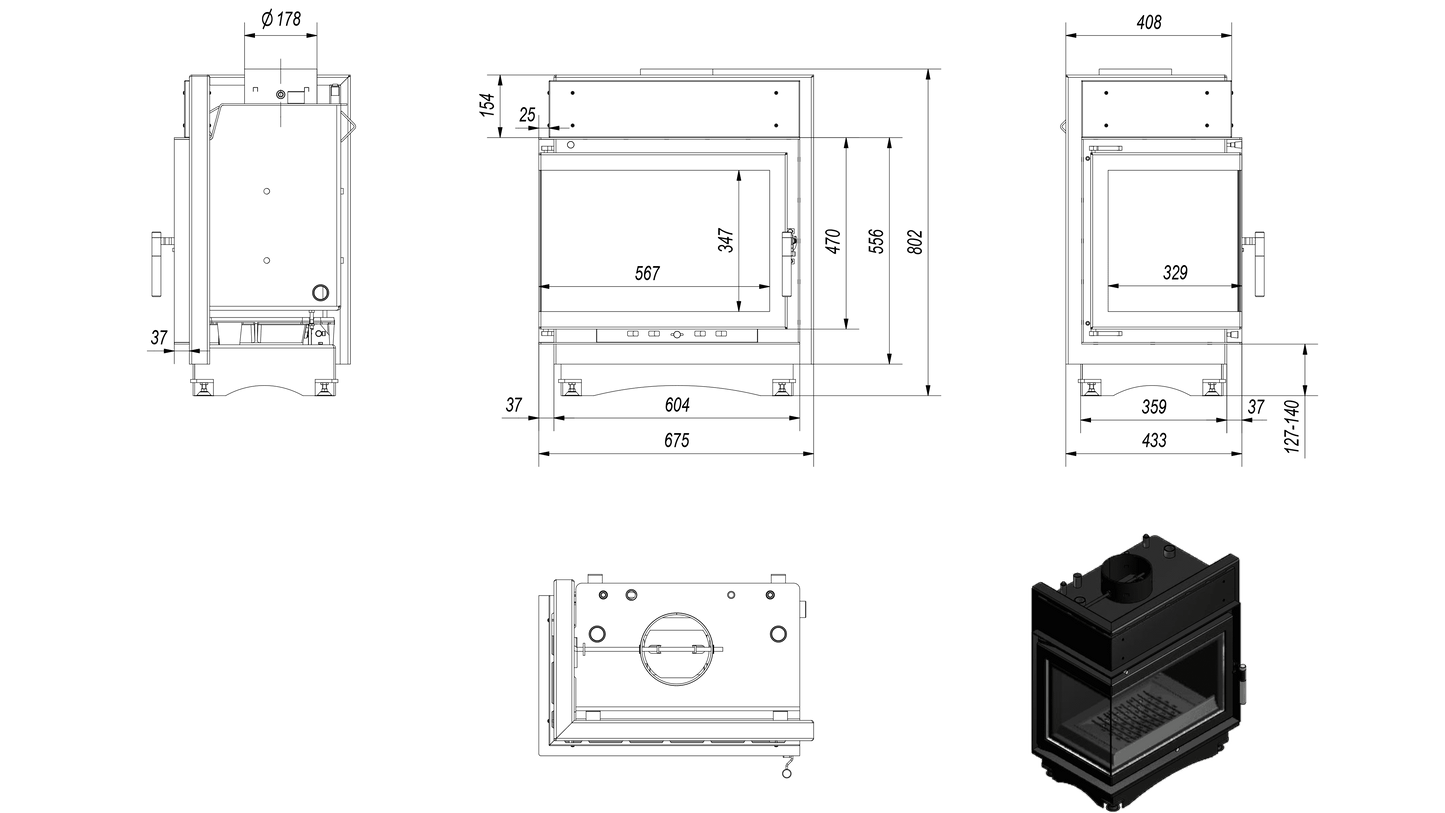

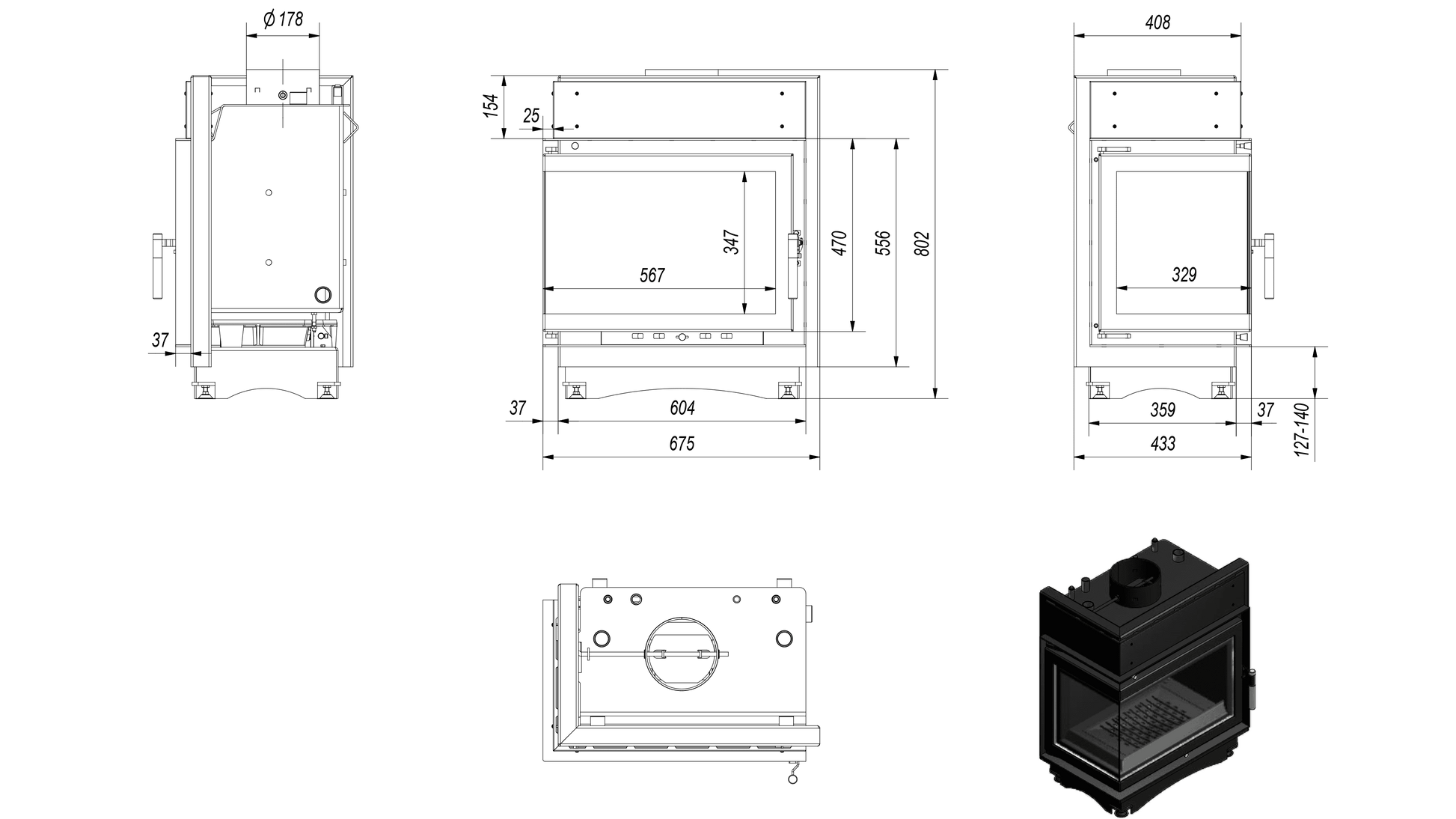

Dimensions

Max billet length (cm) 33
Width (cm) 67.5
Height (cm) 80.25
Depth (cm) 40.75
Weight (kg) 138

Installation

Flue gas temperature (oC) 236
Minimum required active field of outlet grilles (cm2) 120
diameter of the flue gas outlet 180

Compliance

Energy class A
Certificates Ecodesign, BImSchV 2

Technical details

Max working pressure (bar) 2
Minimum required active area of inlet grilles (cm2) 60
Door opening Left
Base material Steel, Cast iron
CLOSING No
CO emission (mg/m3) 1235
NOx emission (mg/m3) 140
OGC emission (mg/m3) 63
EEI 105
Pollen emission (mg/m3) 31
CO emission (at 13% O2) ≤ given in % 0.098
EAN 5901350049631
Equipment Ashpan
