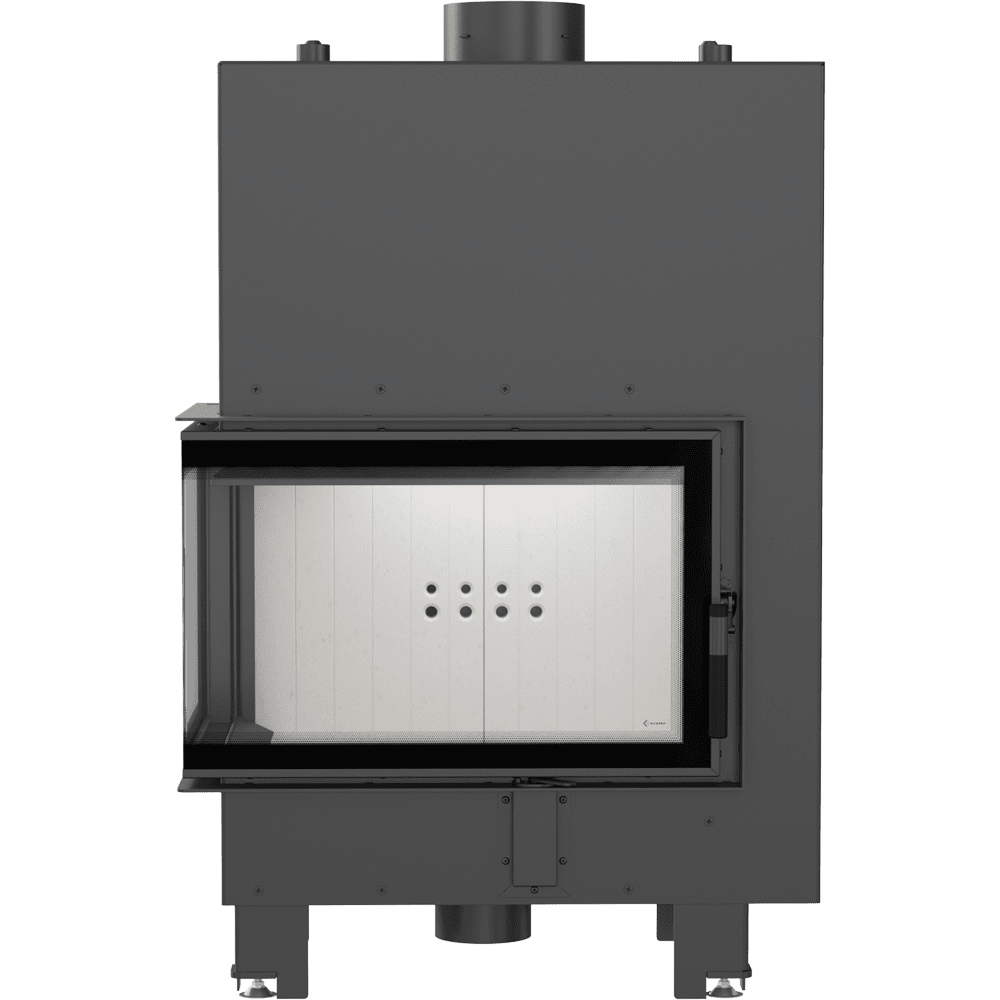

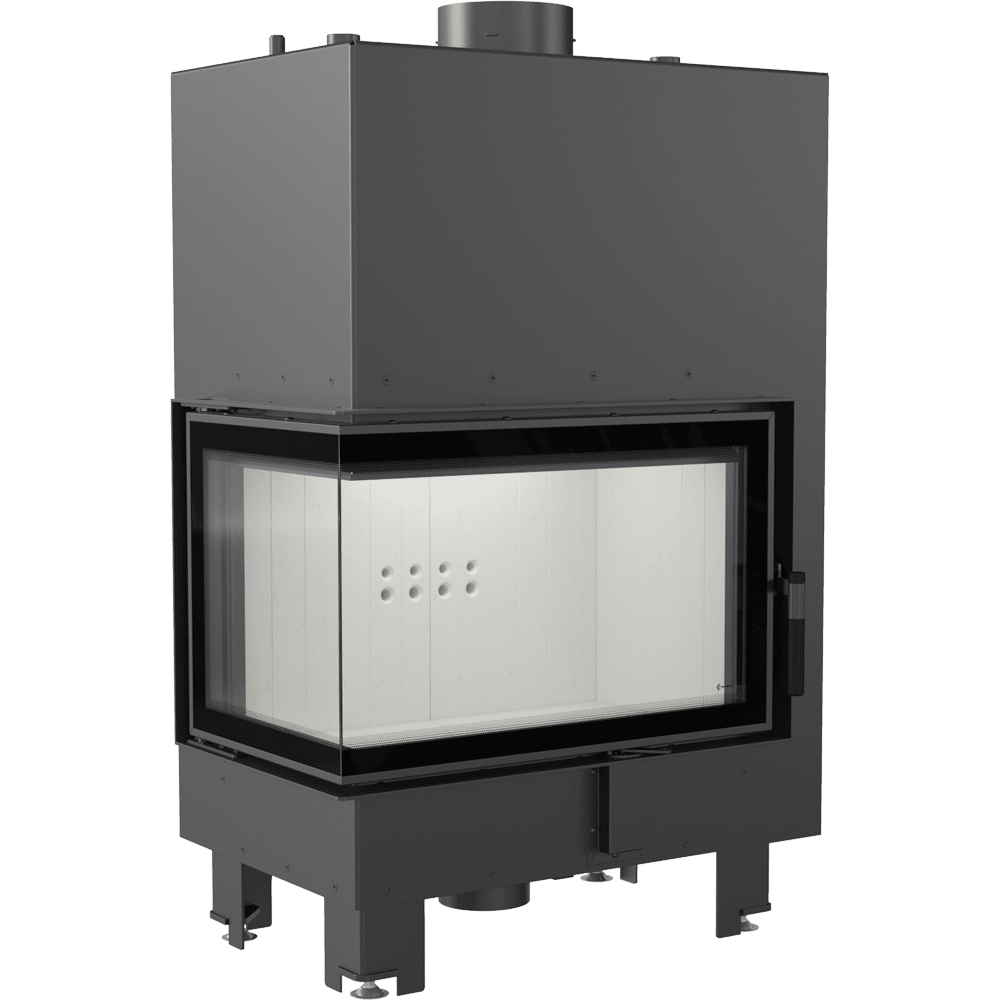

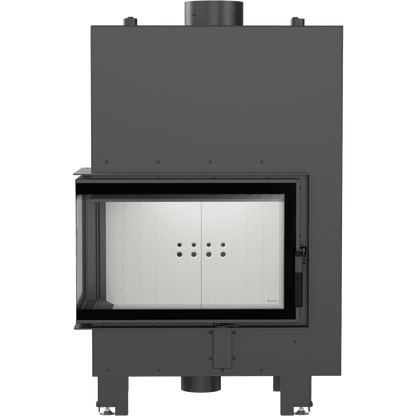

Water heating fireplace KRATKI MBM Left 12 kW Ø 180

Water heating fireplace KRATKI MBM Left 12 kW Ø 180

€2.340 EUR
€2.340 EUR
Sale Sold out
Tax included.

Overview

The double glass inserts of the MBM PW line are an economical and ecological solution with a water-based unit, which does not differ from a the typical air insert.

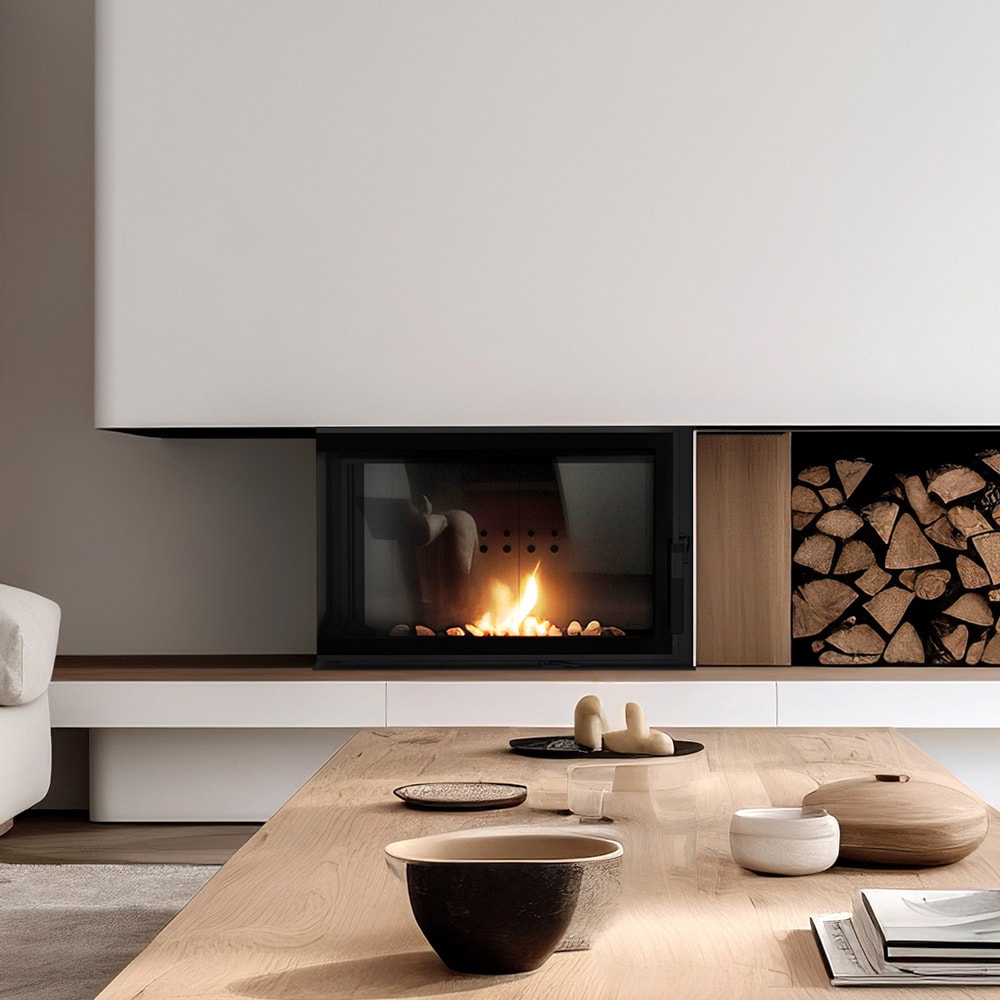

Thanks to the unusual vision of the fire and the delicate frame, it perfectly fits into the design of modern interiors.

This type of fireplace is often chosen for houses with open spaces , such as living rooms with dining areas.

At a glance

  • Brand: Kratki
  • Heat output: 12 kW
  • Fuel: Seasoned deciduous wood (humidity ≤20%)
  • Efficiency: 85%
  • Width: 78 cm
  • Height: 122 cm
Technical details

Product information

Brand Kratki
Reference MBM/PW/10/L/BS/W
Availability Out of stock

Performance

Nominal power (kW) 12
Heating power range (kW) 5.0 - 14.0
Thermal Efficiency (%) 85
Water capacity (l) 27
Average power from water (kW) 7
Heat output for space heating (kW) 5
Seasonal Energy Efficiency (%) 75
Fuel type Seasoned deciduous wood (humidity ≤20%)

Dimensions

Max billet length (cm) 50
Width (cm) 78
Height (cm) 122
Depth (cm) 53
Weight (kg) 208.5

Installation

Flue gas temperature (oC) 181
Minimum required active field of outlet grilles (cm2) 270
diameter of the flue gas outlet 180

Compliance

Energy class A+
Certificates KRATKI PRO, Ecodesign, Designed for recuperation, BImSchV 2

Technical details

Max working pressure (bar) 2
Minimum required active area of inlet grilles (cm2) 135
Door opening Left
Base material Steel
CLOSING No
CO emission (mg/m3) 1230
NOx emission (mg/m3) 98
OGC emission (mg/m3) 28
EEI 111
Pollen emission (mg/m3) 27
CO emission (at 13% O2) ≤ given in % 0.098
EAN 5901350031551
Equipment Air intake - built in , Combustion chamber lining, Decorative glass
