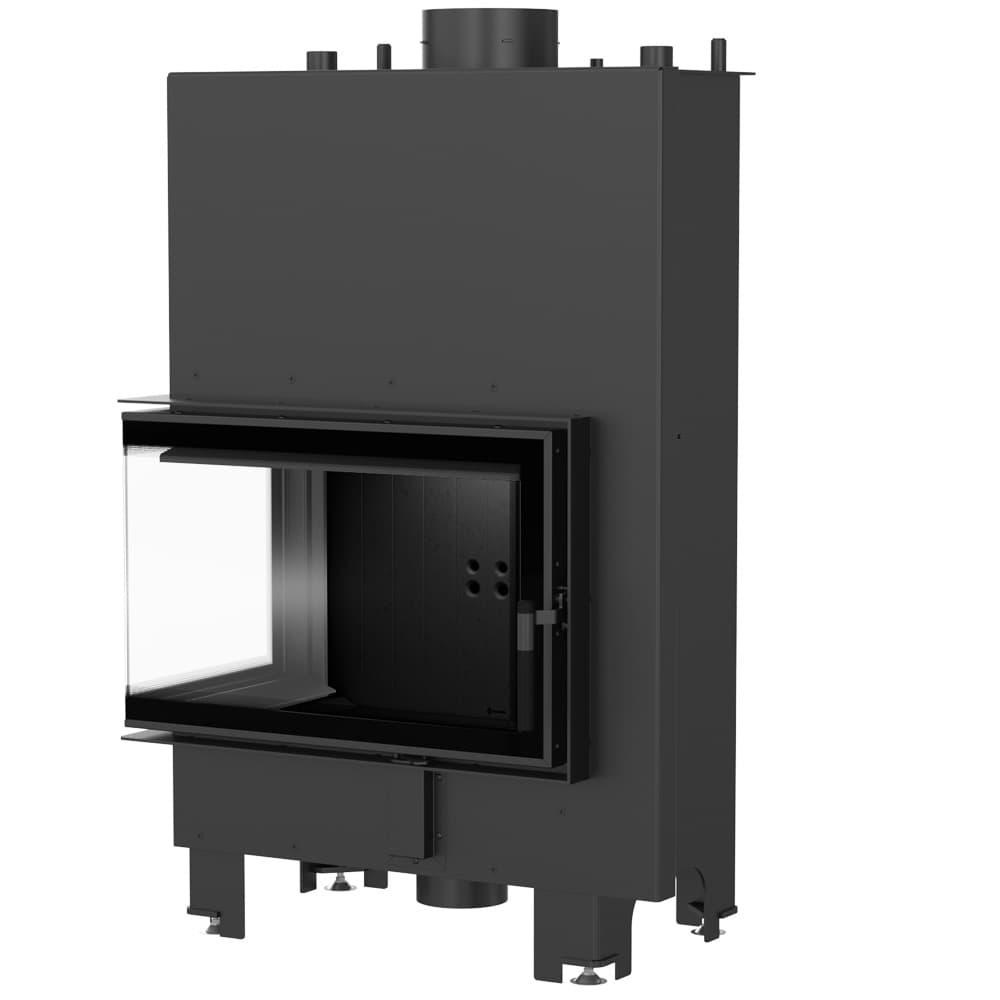

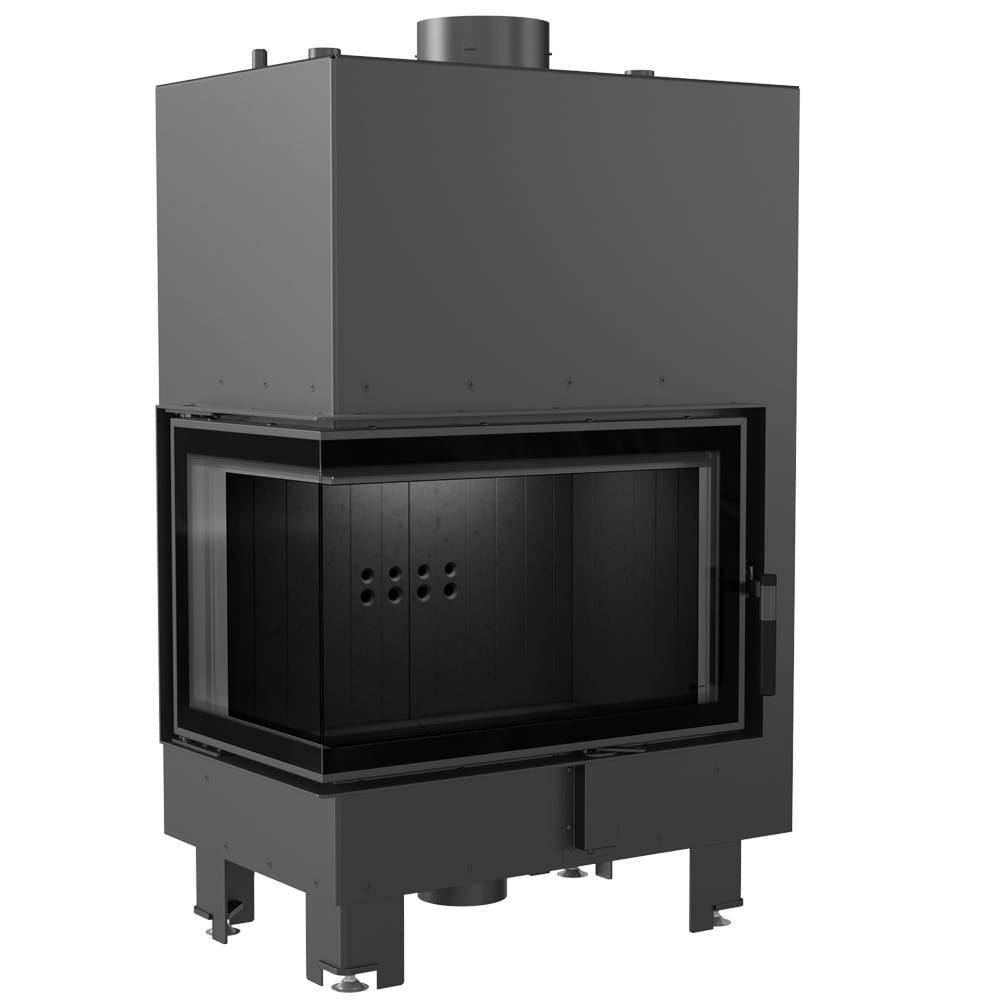

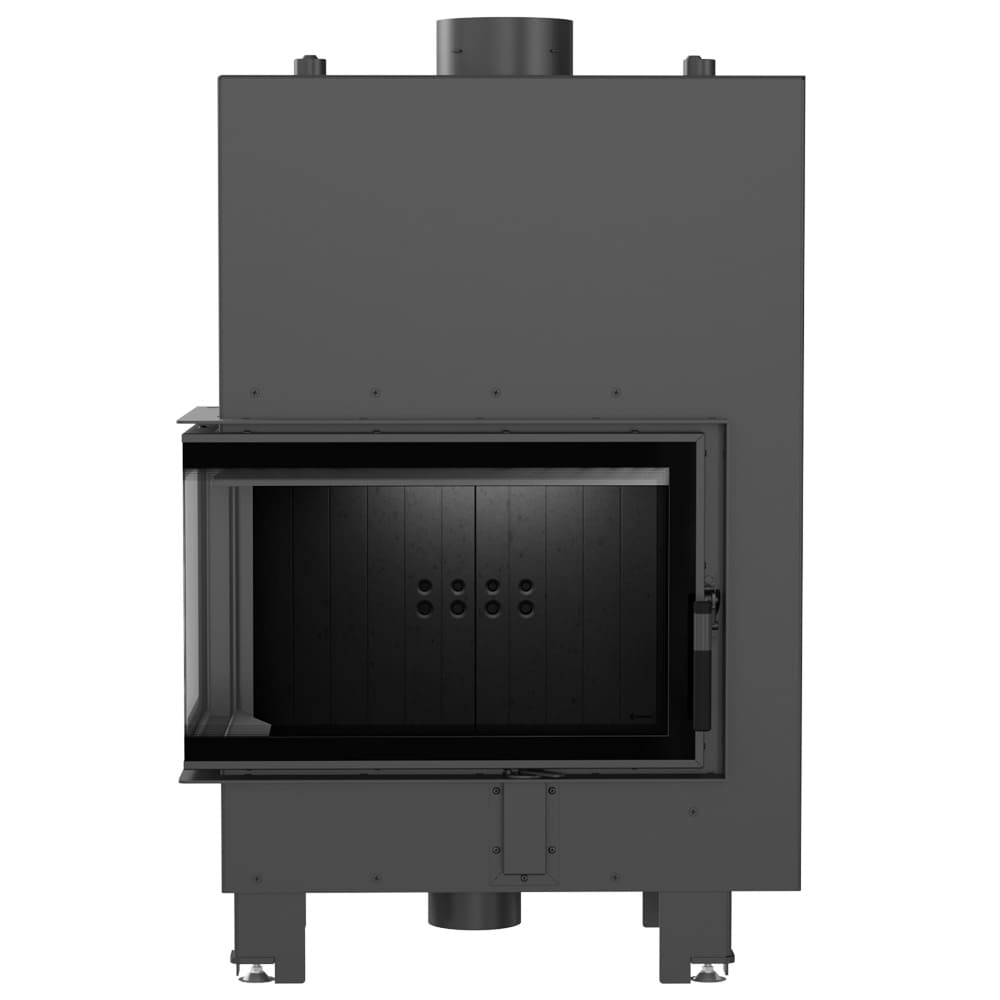

Water heating fireplace KRATKI MBM Left 12 kW Ø 180 black thermotec lining
Water heating fireplace KRATKI MBM Left 12 kW Ø 180 black thermotec lining
Regular price
€2.420 EUR
Regular price
Sale price
€2.420 EUR
Unit price
/
per
Tax included.
Overview
Double-glazed inserts from the MBM PW line are an economical and ecological solution with a water unit, which after installation does not differ in appearance from a typical air insert.
Thanks to its unusual vision of fire and a delicate front frame, it fits perfectly into the style of modern interiors.
This type of fireplace is often chosen in the open rooms, where different spaces are connected, such as living room with dining room.
At a glance
- Brand: Kratki
- Heat output: 12 kW
- Fuel: Seasoned deciduous wood (humidity ≤20%)
- Efficiency: 85%
- Width: 78 cm
- Height: 122 cm
Technical details
Product information
| Brand | Kratki |
|---|---|
| Reference | MBM/PW/10/L/BS/W/BLACK |
| Availability | Out of stock |
Performance
| Nominal power (kW) | 12 |
|---|---|
| Heating power range (kW) | 5.0 - 14.0 |
| Thermal Efficiency (%) | 85 |
| Water capacity (l) | 27 |
| Average power from water (kW) | 7 |
| Heat output for space heating (kW) | 5 |
| Seasonal Energy Efficiency (%) | 75 |
| Fuel type | Seasoned deciduous wood (humidity ≤20%) |
Dimensions
| Max billet length (cm) | 50 |
|---|---|
| Width (cm) | 78 |
| Height (cm) | 122 |
| Depth (cm) | 53 |
| Weight (kg) | 208.5 |
Installation
| Flue gas temperature (oC) | 181 |
|---|---|
| Minimum required active field of outlet grilles (cm2) | 270 |
| diameter of the flue gas outlet | 180 |
Compliance
| Energy class | A+ |
|---|---|
| Certificates | KRATKI PRO, Ecodesign, Designed for recuperation, BImSchV 2 |
Technical details
| Max working pressure (bar) | 2 |
|---|---|
| Minimum required active area of inlet grilles (cm2) | 135 |
| Door opening | Left |
| Base material | Steel |
| CLOSING | No |
| CO emission (mg/m3) | 1230 |
| NOx emission (mg/m3) | 98 |
| OGC emission (mg/m3) | 28 |
| EEI | 111 |
| Pollen emission (mg/m3) | 27 |
| CO emission (at 13% O2) ≤ given in % | 0.098 |
| EAN | 5901350031568 |
| Equipment | Air intake - built in , Combustion chamber lining, Decorative glass |
