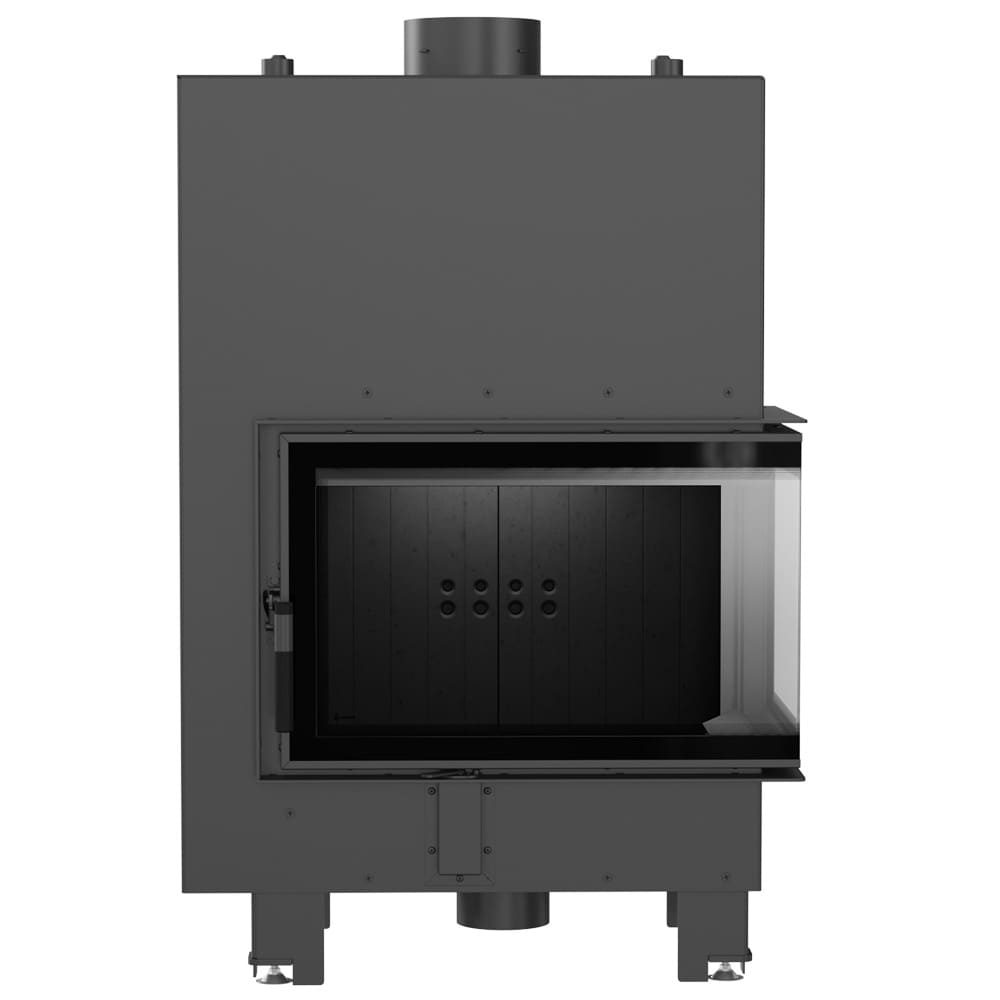

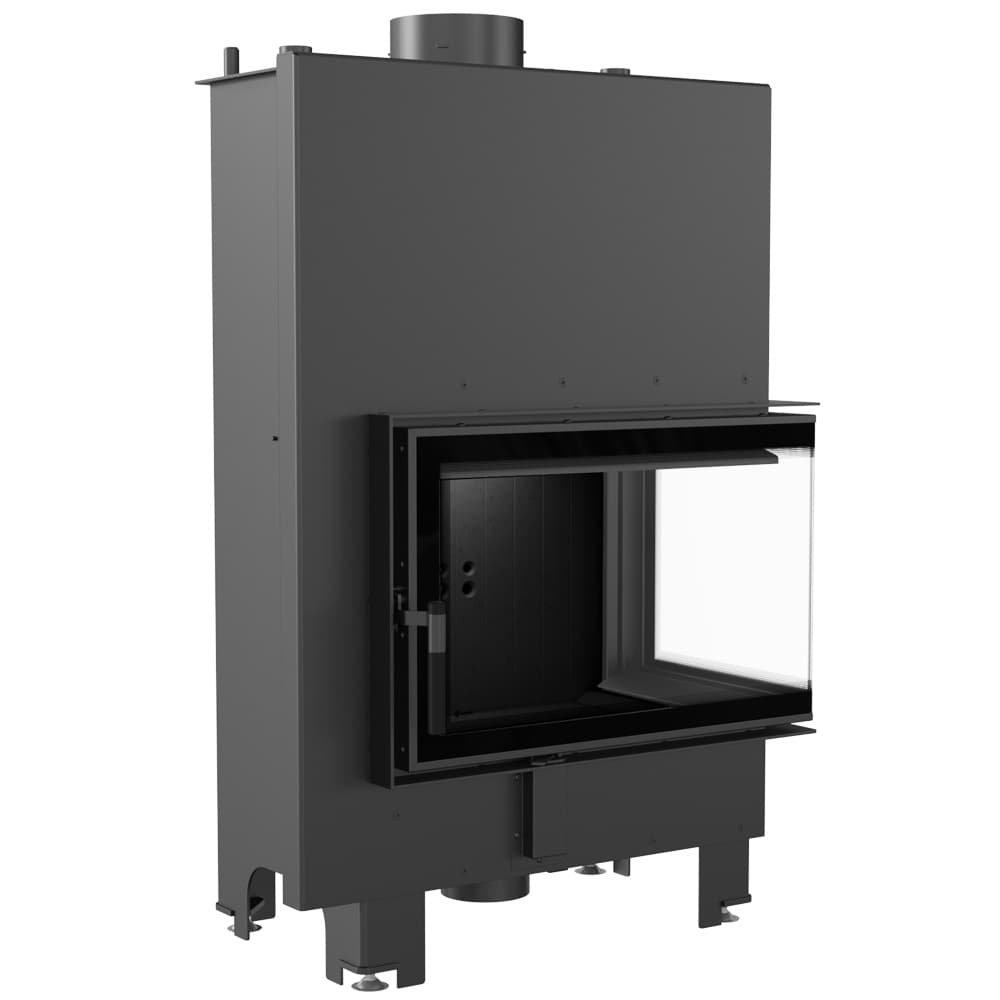

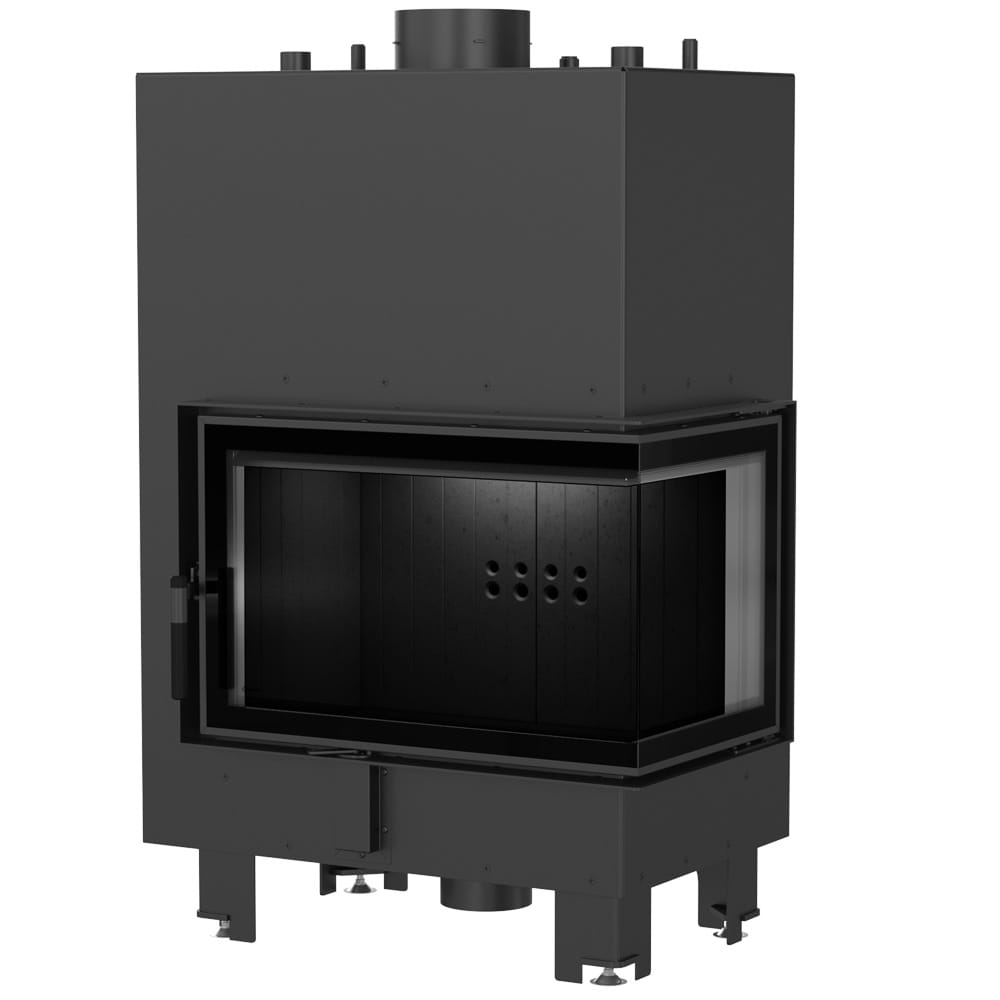

Water heating fireplace KRATKI MBM Right 12 kW Ø 180 black thermotec lining

Water heating fireplace KRATKI MBM Right 12 kW Ø 180 black thermotec lining

€2.420 EUR
€2.420 EUR
Sale Sold out
Tax included.

Overview

Double-glazed inserts from the MBM PW line are an economical and ecological solution with a water unit, which after installation does not differ in appearance from a typical air insert.

Thanks to its unusual vision of fire and a delicate front frame, it fits perfectly into the style of modern interiors.

This type of fireplace is often chosen in the open rooms, where different spaces are connected, such as living room with dining room.

At a glance

  • Brand: Kratki
  • Heat output: 12 kW
  • Fuel: Seasoned deciduous wood (humidity ≤20%)
  • Efficiency: 85%
  • Width: 78 cm
  • Height: 122 cm
Technical details

Product information

Brand Kratki
Reference MBM/PW/10/P/BS/W/BLACK
Availability Out of stock

Performance

Nominal power (kW) 12
Heating power range (kW) 5.0 - 14.0
Thermal Efficiency (%) 85
Water capacity (l) 27
Average power from water (kW) 7
Heat output for space heating (kW) 5
Seasonal Energy Efficiency (%) 75
Fuel type Seasoned deciduous wood (humidity ≤20%)

Dimensions

Max billet length (cm) 50
Width (cm) 78
Height (cm) 122
Depth (cm) 53
Weight (kg) 208.5

Installation

Flue gas temperature (oC) 181
Minimum required active field of outlet grilles (cm2) 270
diameter of the flue gas outlet 180

Compliance

Energy class A+
Certificates KRATKI PRO, Ecodesign, Designed for recuperation, BImSchV 2

Technical details

Max working pressure (bar) 2
Minimum required active area of inlet grilles (cm2) 135
Door opening Right
Base material Steel
CLOSING No
CO emission (mg/m3) 1230
NOx emission (mg/m3) 98
OGC emission (mg/m3) 28
EEI 111
Pollen emission (mg/m3) 27
CO emission (at 13% O2) ≤ given in % 0.098
EAN 5901350031599
Equipment Air intake - built in , Combustion chamber lining, Decorative glass
