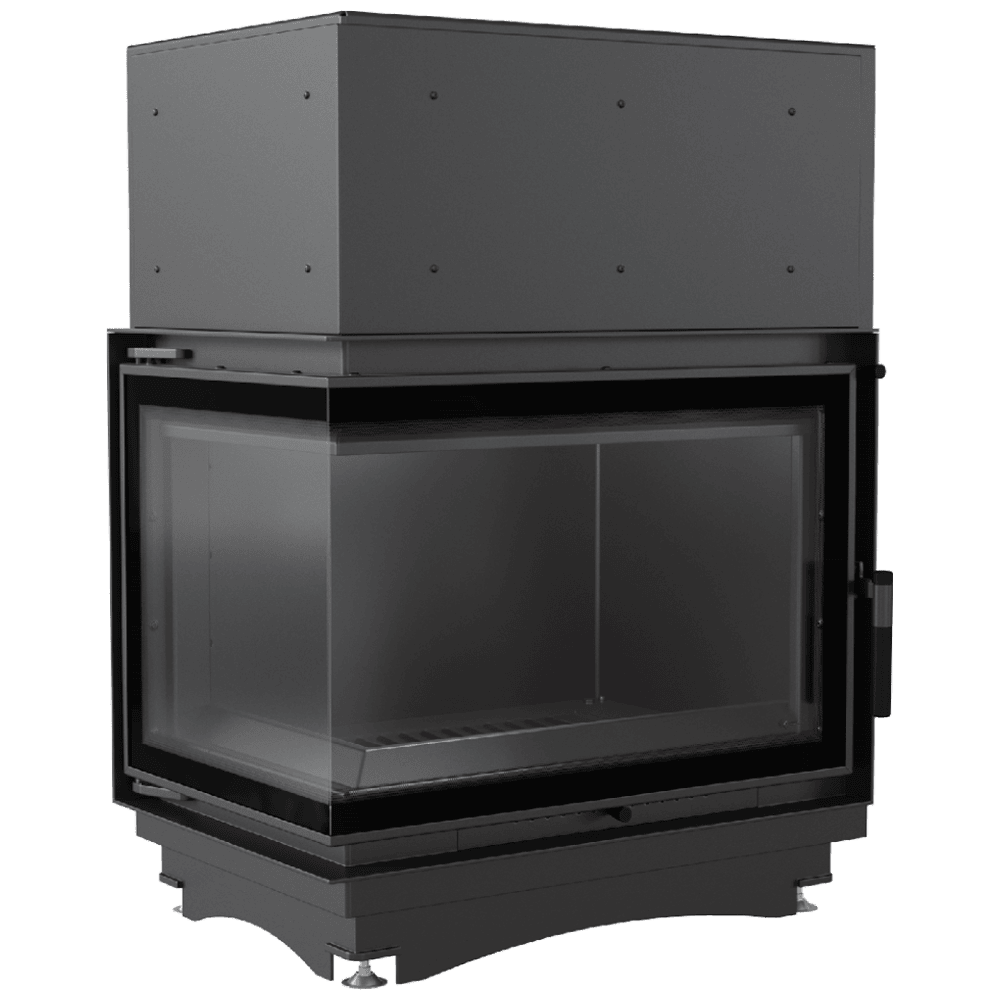

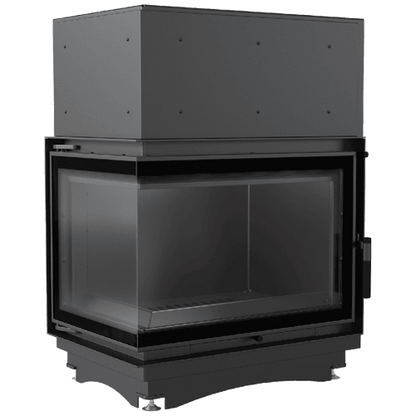

Water heating fireplace KRATKI ZUZIA DECO left 12 kW Ø 200

Water heating fireplace KRATKI ZUZIA DECO left 12 kW Ø 200

€2.280 EUR
€2.280 EUR
Sale Sold out
Tax included.

Overview

Installing a fireplace with water jacket we don’t have to make a separate central heating installation.

Because we can connect to the existing one.

MAXIMUM USE OF ENERGY In the insert with water jacket the body of the fireplace has double walls.

At a glance

  • Brand: Kratki
  • Heat output: 12 kW
  • Fuel: Seasoned deciduous wood (humidity ≤20%)
  • Efficiency: 81%
  • Width: 70.4 cm
  • Height: 99.3 cm
Technical details

Product information

Brand Kratki
Reference ZUZIA/PW/BL/15/BS/W/DECO
Availability Out of stock

Performance

Nominal power (kW) 12
Heating power range (kW) 5.0 - 15.0
Thermal Efficiency (%) 81
Water capacity (l) 38
Average power from water (kW) 8
Heat output for space heating (kW) 4
Seasonal Energy Efficiency (%) 71
Fuel type Seasoned deciduous wood (humidity ≤20%)

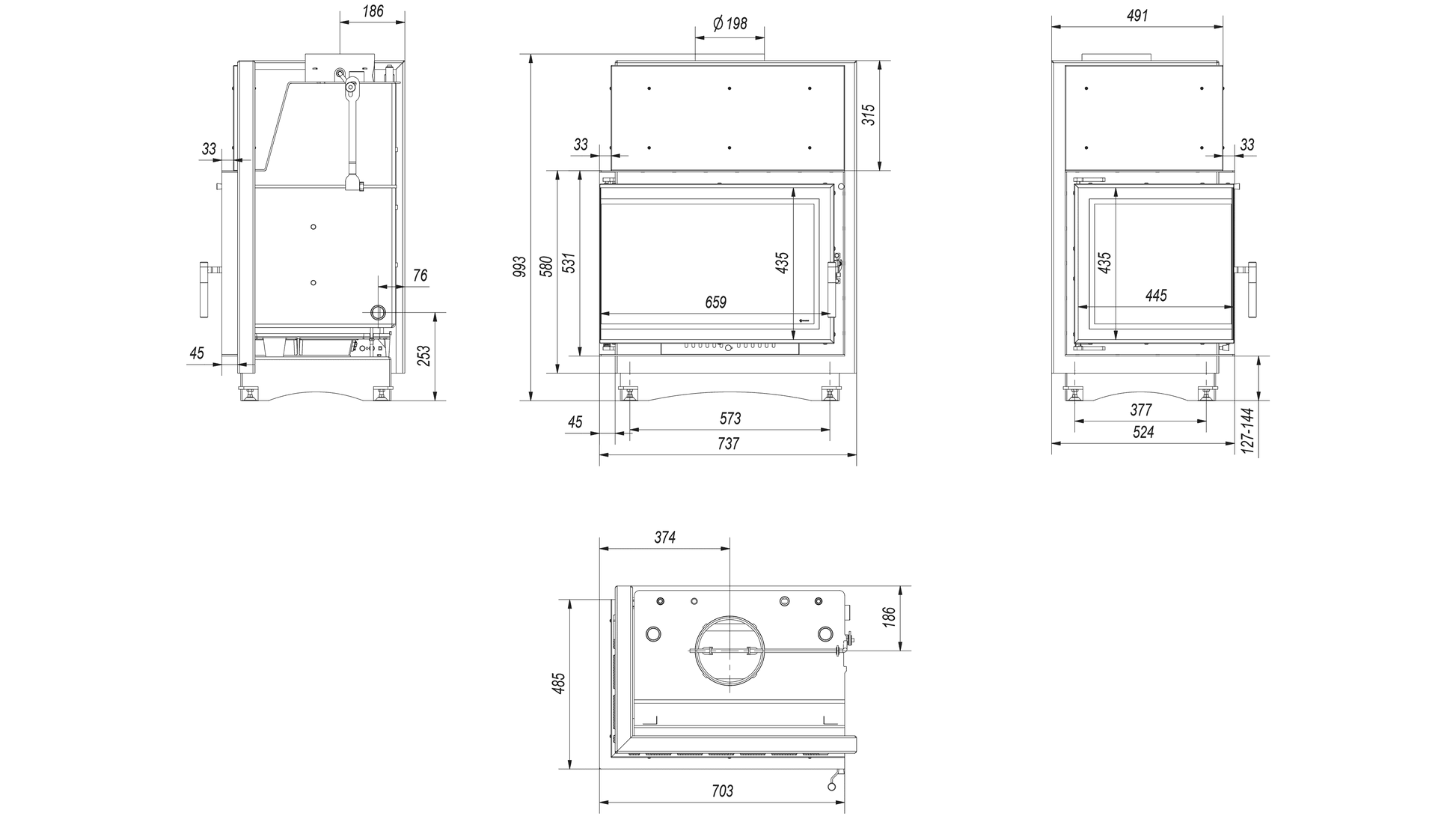

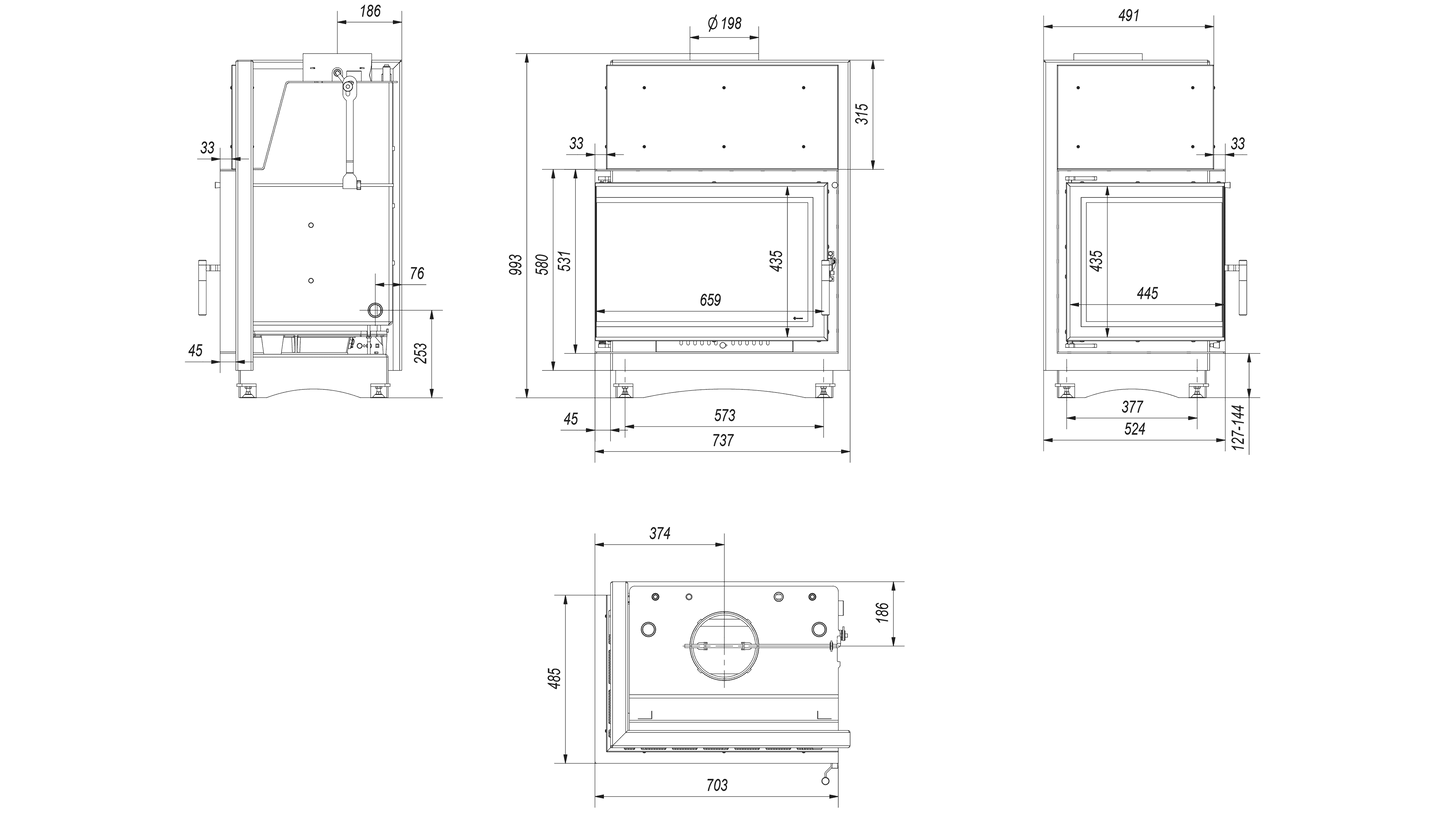

Dimensions

Max billet length (cm) 50
Width (cm) 70.4
Height (cm) 99.3
Depth (cm) 49.1
Weight (kg) 193

Installation

Flue gas temperature (oC) 254
Minimum required active field of outlet grilles (cm2) 240
diameter of the flue gas outlet 200

Compliance

Energy class A
Certificates Ecodesign, BImSchV 2

Technical details

Max working pressure (bar) 2
Minimum required active area of inlet grilles (cm2) 120
Door opening Left
Base material Steel, Cast iron
CLOSING No
CO emission (mg/m3) 1087
NOx emission (mg/m3) 108
OGC emission (mg/m3) 68
EEI 106
Pollen emission (mg/m3) 33
CO emission (at 13% O2) ≤ given in % 0.086
EAN 5901350046395
Equipment Ashpan, Decorative glass
