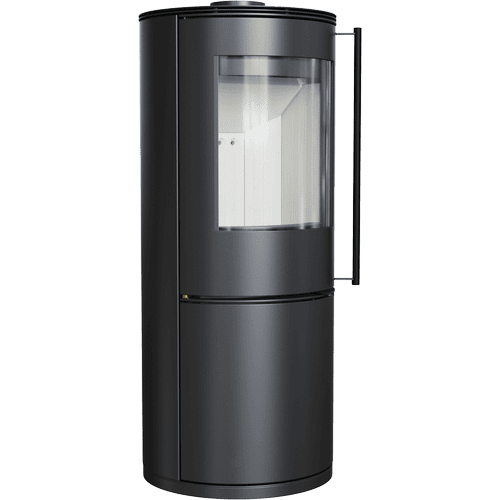

Wood burning steel stove PICARD Ø 150 9 kW
Wood burning steel stove PICARD Ø 150 9 kW
PICARD is a steel freestanding stove with a rounded front which uniquely enhances the beautiful vision of fire. It is a great solution for people who are looking for a modern and ecological device.
MODERN DESIGN
Improved vision of the fire thanks to the curved glass.
The interior of the stove is lined with innovative material TERMOTEC which perfectly contrasts with the stove, giving it a modern design. TERMOTEC is a ceramic material which accumulates heat and raises the temperature in the furnace.
Solid handle sliding (click-on), makes it easy to seal the door. Due to this, the appliance is suitable for the homes with recuperation.
Under the combustion chamber there is an additional, closed chamber, in which the air inlet connection system is hidden. Opening the chamber door is based on an intuitive push to open system that does not require an additional handle.
ECOLOGICAL COMBUSTION
The stove meets the criteria of Ecodesign and the restrictive BImSchV 2 norm setting the maximum CO emission.
MAXIMUM USE OF ENERGY
More efficient combustion and longer maintenance of temperature by lining the combustion chamber with ceramic material TERMOTEC which accumulates heat and raises the temperature in the furnace.
Full combustion on the dust thanks to deflector which extend the exhaust path. This process increases the efficiency of burning and guarantees better energy use. It also minimizes the emission of harmful substances to the atmosphere. Additionally a diphragm installed at the exhaust outlet functions similarly to the deflector , enhances the effeciency of the device.
Primary air is supplied to the insert thanks to the built-in 100 mm external air inlet. Air inlet is located from the bottom of the insert. Insert has a cover plate on the back wall and a hole in its base. Thanks to it the user can choose how to connect the external air kit. Air adjustment is done with a throttle adjustable by one regulator placed below the door. This solution prevents from improper usage. Whole mechanism works quietly and without fail.
Triple air system of combustion chamber: primary air - directed to the grate; secondary air supplied by the holes located in the back wall. Additionally, the system of air clean glass has been applied (curtain air).
SAFETY AT THE HIGHEST LEVEL
The PICARD front is equipped with heat-resistant ceramics that withstand temperatures up to 660°C. The glass we propose is certified for quality and safety.
The body and front of the insert are resistant to high temperatures due to the use of high-grade steel. They also ensure the stability of the entire structure.
Excellent tightness of the device is ensured thanks to solid welds made in the noble gas shield. Steel elements are laser cut using modern devices and then bent on CNC bending machines.
COMFORTABLE USE
The furnace can easily be kept clean thanks to the removable grate and container in which ash is collected.
The glazing stays clean thanks to the clean glass system used in it. The air curtain separates the glass from the firebox. Thanks to that it does not get dirty.
PICARD has the ability to mount exhaust outlet both from the top and the back of the unit, making it easy for installation (for back exhaust outlet installation purchase of top plate cover is required).
