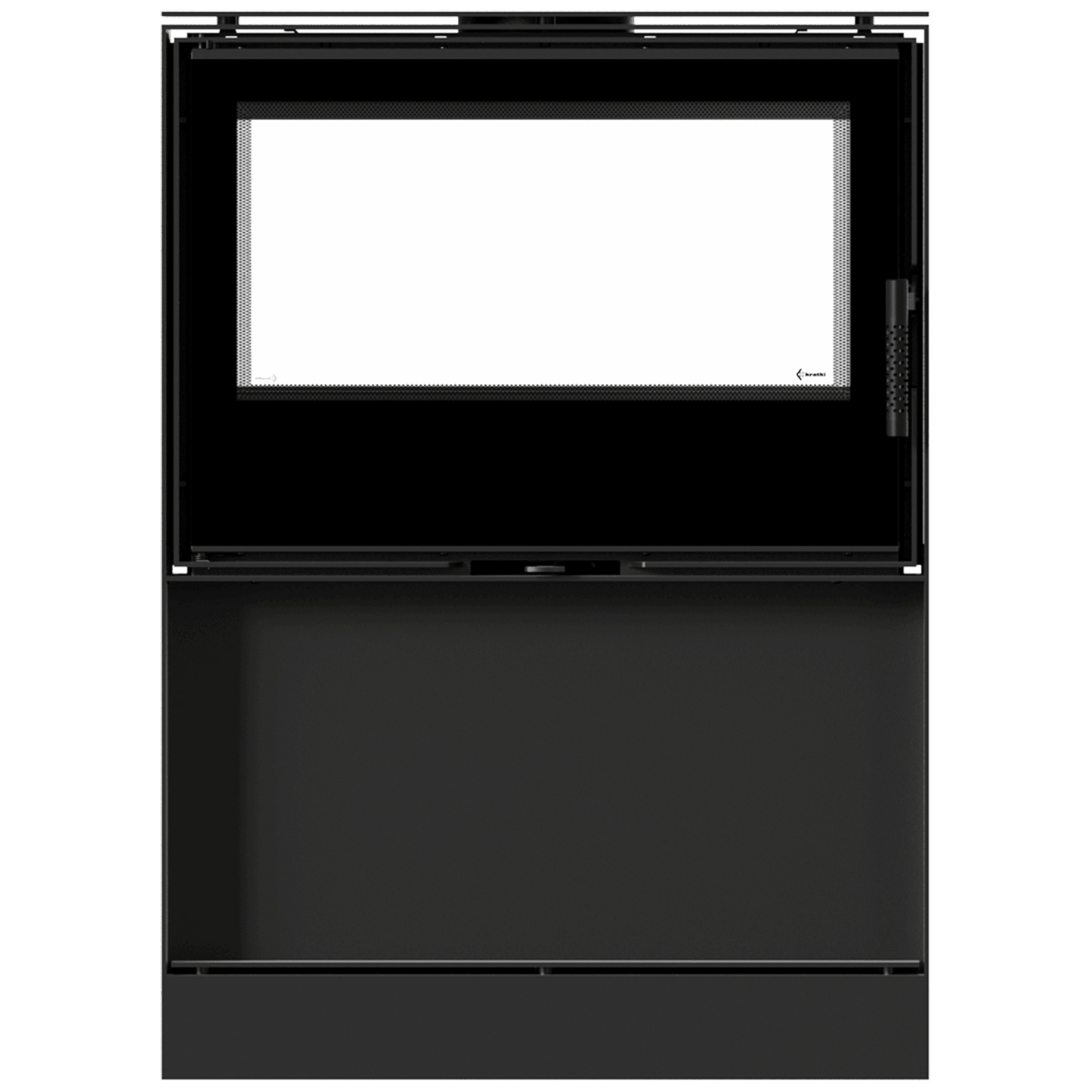

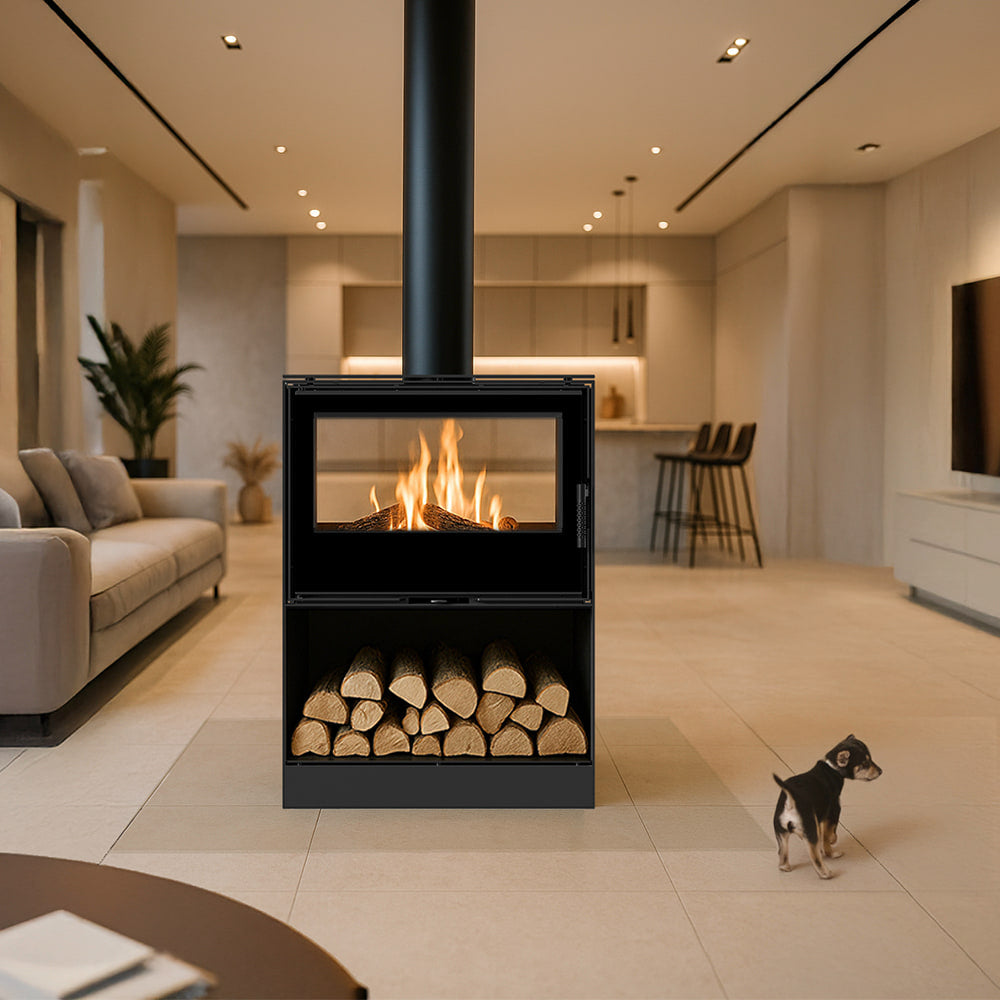

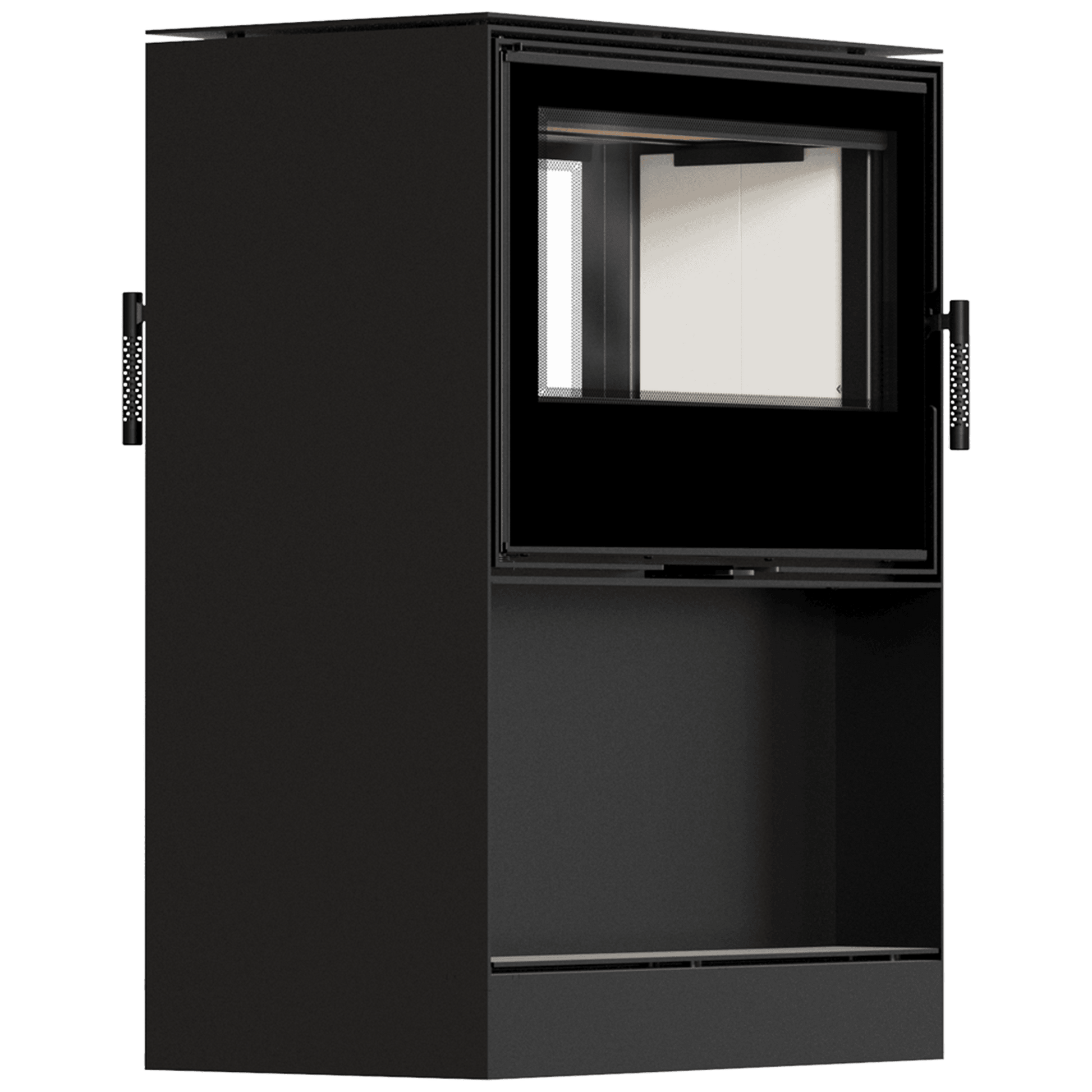

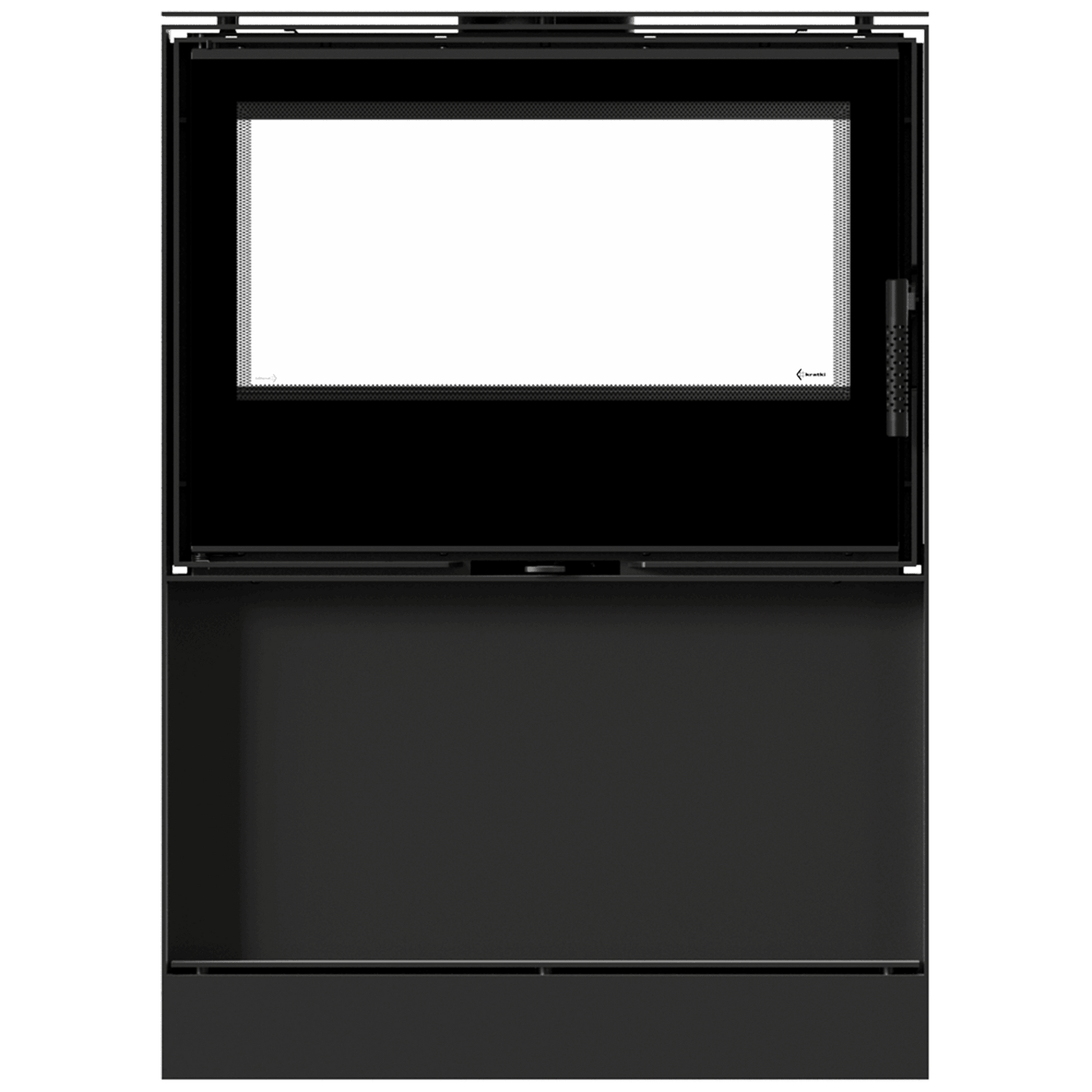

Wood burning stove tunnel KRATKI KARI 80 12 kW Ø 180 with wood storage

Wood burning stove tunnel KRATKI KARI 80 12 kW Ø 180 with wood storage

€1.983 EUR
€1.983 EUR
Sale Sold out
Tax included.

Overview

KARI 80 Tunnel – a fire that connects KARI 80 Tunnel is a modern built-in fireplace cassette that impresses with its functionality, design, and eco-friendly approach to heating.

The wood recess provides easy access to fuel and adds charm and a cozy atmosphere to the home.

Its minimalist form and striking glazing make it a perfect complement to a variety of styles – from classic to contemporary.

At a glance

  • Brand: Kratki
  • Heat output: 12 kW
  • Fuel: Seasoned deciduous wood (humidity ≤20%)
  • Efficiency: 75%
  • Width: 77 cm
  • Height: 107.1 cm
Technical details

Product information

Brand Kratki
Reference KARI/80/W/TUNEL
Availability Out of stock

Performance

Nominal power (kW) 12
Thermal Efficiency (%) 75
Seasonal Energy Efficiency (%) 65
Heat output for space heating (kW) 12
Fuel type Seasoned deciduous wood (humidity ≤20%)

Dimensions

Max billet length (cm) 50
Width (cm) 77
Height (cm) 107.1
Depth (cm) 45.4
Weight (kg) 253.85

Installation

Flue gas temperature (oC) 319
diameter of the flue gas outlet 180
Air intake diameter (mm) 100
Flue gas mass flow (g/s) 11.5

Compliance

Energy class A
Certificates Ecodesign, Designed for recuperation, BImSchV 2

Technical details

Base material Steel
EEI 98.8
CO emission (at 13% O2) ≤ given in % 0.096
CO emission (mg/m3) 1208
Pollen emission (mg/m3) 34
NOx emission (mg/m3) 102
OGC emission (mg/m3) 54
EAN 5903751400110
Technical images
  • 258581 wymiary kari 80 w tunelv2

    258581 wymiary kari 80 w tunelv2
